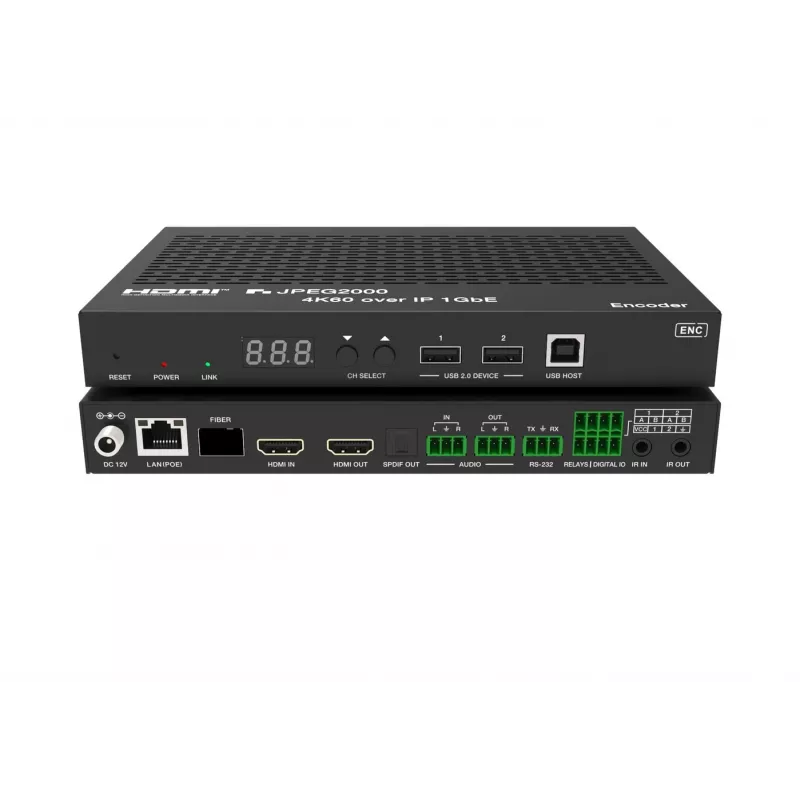

Vivolink VLVWIP2000-ENC Wireless Presentation System 2000

The Vivolink VLVWIP2000-ENC integrates JPEG2000-based video encoding with both copper and fiber network interfaces in a single unit. The encoder accepts up to 4K@60Hz 4:4:4 video and supports audio embedding or extraction; the companion decoder delivers up to 4K@60Hz 4:4:4 output with audio extraction. The system runs on Linux, offers flexible network control over a 1G managed Ethernet infrastructure and can be powered via PoE when used with a compatible switch.

Advantages

This encoder supports HDMI 2.0b and HDCP 2.2 with an 18 Gbps video bandwidth, enabling high-resolution transmission. It integrates copper and fiber ports in one box and includes features such as ARC/eARC/S/PDIF/analog audio return, USB2.0/KVM/Camera support, bidirectional RS-232, two-way IR, built-in RELAY and I/O ports, and optional Dante AV-A mode via license activation. A built-in MJPEG substream and a web GUI with drag-and-drop and image preview simplify third-party integration and configuration.

Suitable for

• Corporate meeting rooms and boardrooms requiring high-resolution wireless presentation
• Lecture halls and classrooms needing multi-source video distribution
• AV installations that require copper and fiber connectivity in one device
• Environments needing KVM, USB camera support and remote device control via RS-232/IR/CEC

Key specifications

• Video standard: JPEG2000-based encoding
• Input/output resolution: up to 4K@60Hz 4:4:4
• HDMI: HDMI 2.0b, HDCP 2.2 compliant, 18 Gbps bandwidth
• Network: 1G Ethernet (requires Layer 3 managed switch with IGMP snooping and 8K jumbo frame)
• Audio: ARC/eARC/S/PDIF/Analog audio return, audio embed/extract
• Control & I/O: bidirectional RS-232, two-way IR, guest mode for RS-232/IR/CEC, two relay ports, two I/O ports
• Other: USB 2.0/KVM/Camera support, MJPEG substream for preview, PoE (802.3at PD) support

How to use

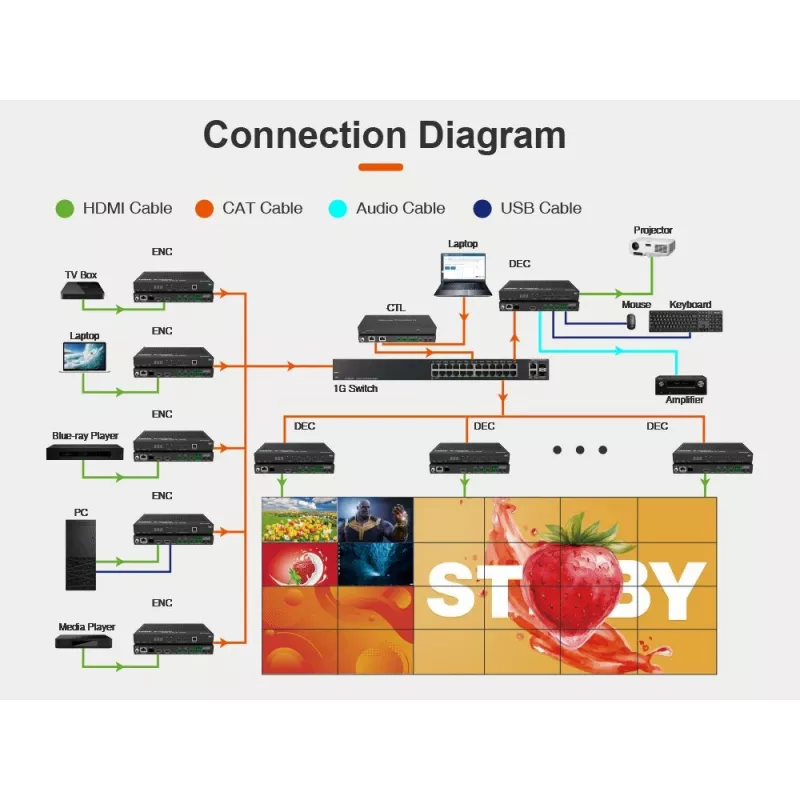

Install the encoder in the AV rack and connect video sources to the HDMI input(s). Attach copper or fiber network cables to the corresponding ports and connect the unit to a Layer 3 1G managed switch that supports IGMP snooping and 8K jumbo frames. Configure network and device settings using the built-in web GUI; use drag-and-drop operations and image preview to map sources and create video walls or multiview layouts. If available, enable PoE to power the unit without an external PSU. Activate optional licenses (for example Dante AV-A) and configure RS-232/IR/CEC guest mode or KVM/USB functions as required.

Recommendations

For reliable operation, deploy the VLVWIP2000-ENC on a managed Layer 3 1G network with IGMP snooping and 8K jumbo frame support, keep firmware updated via the vendor tools, and use PoE from a compliant 802.3at switch when an external power supply is not available. Enable guest mode and configure appropriate access controls when exposing control interfaces in shared environments.
