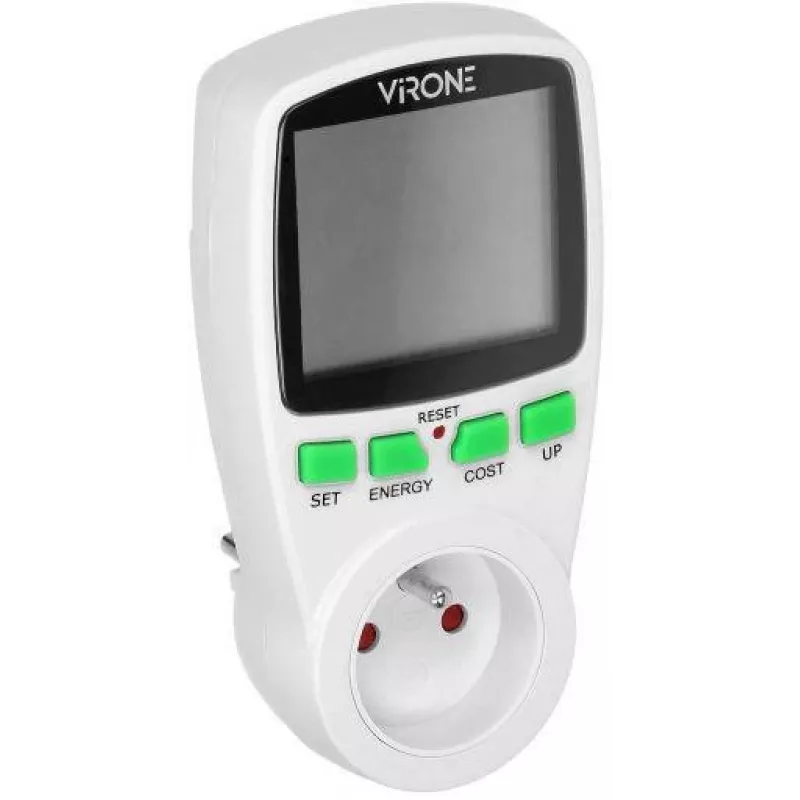

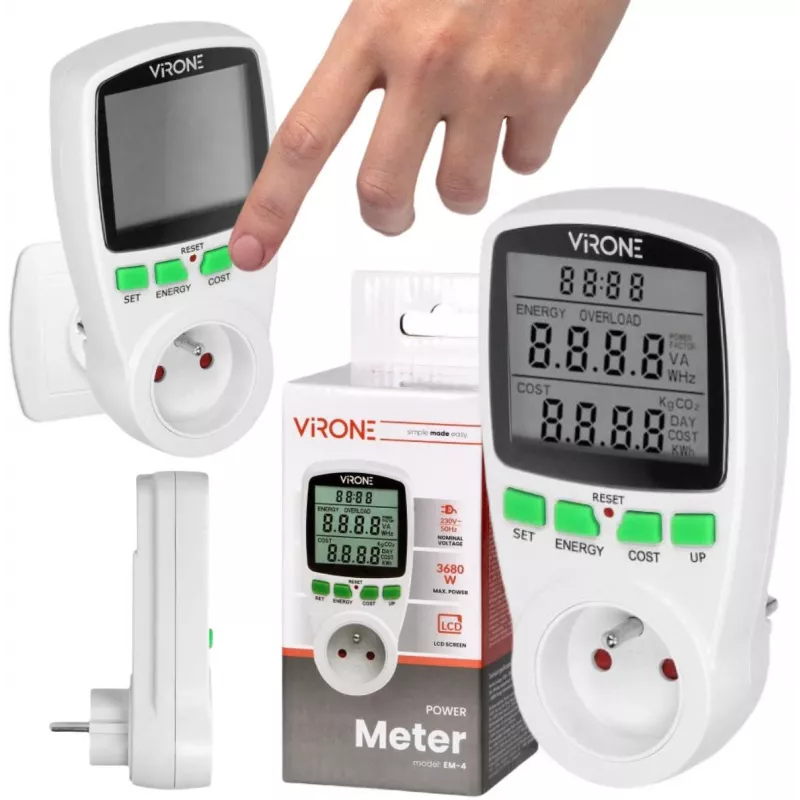

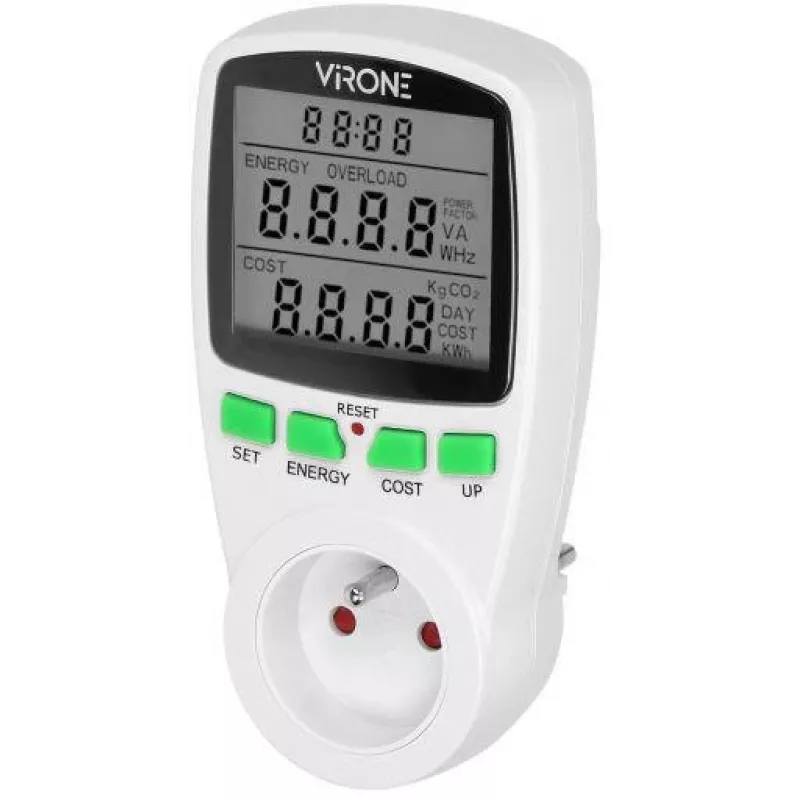

VIRONE EM-4 Single-Phase Energy Meter with LCD Display, 16A, 3680W, Schuko Plug

The VIRONE EM-4 is a single-phase energy meter designed for accurate measurement of electricity consumption in household and light commercial environments. Featuring a clear LCD display with backlight, it provides real-time data on voltage, current, power, frequency, power factor, energy consumption (kWh), and calculated cost. With a maximum load of 16A (3680W) and a Schuko (Type F) plug and socket, it is easy to install and use.

Advantages

Accurate energy monitoring helps you track and reduce electricity usage. The built-in cost calculation function allows you to set your electricity price per kWh and see the running cost directly on the display. The battery backup ensures data retention during power outages. Overload warning protects your devices.

Suitable for

• Home appliances (refrigerators, washing machines, air conditioners)
• Office equipment (computers, printers, monitors)
• Small workshops and light commercial applications
• Energy auditing and cost allocation

Key specifications

• Measurement Type: Single-phase
• Display: LCD with backlight
• Operating Voltage: 230V AC, 50Hz
• Max Load Current: 16A
• Max Load Power: 3680W
• Energy Measurement Range: 0.000 - 9999 kWh
• Voltage Measurement Range: 180V - 250V
• Current Measurement Range: 0.001A - 16A
• Power Measurement Range: 0.1W - 3680W
• Accuracy Class: 1.0 (for kWh)
• Protection Rating: IP20
• Socket Type: Schuko (Type F)
• Plug Type: Schuko (Type F)
• Overload Warning: Yes
• Battery Backup: Yes (for data memory)
• Number of Tariffs: 1 (Single-tariff)
• Cost Calculation: Yes (user-settable price per kWh)
• Meter Power Consumption: < 0.5W

Recommendations

For best results, plug the meter directly into a wall outlet and then connect your device. Avoid daisy-chaining multiple meters or extension cords. Set the correct electricity price per kWh for accurate cost display. The meter is intended for indoor use only.
