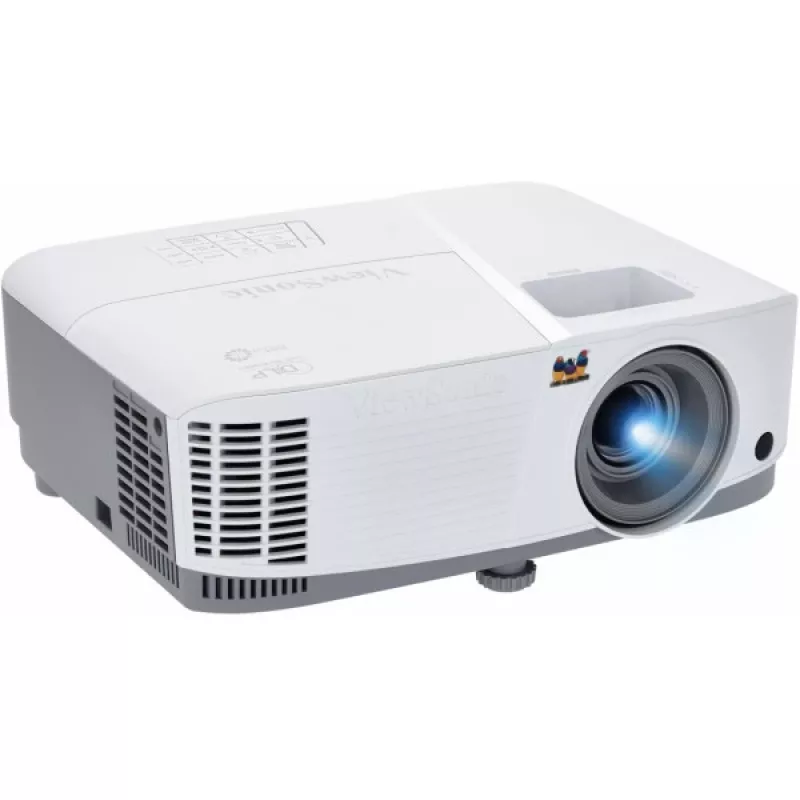

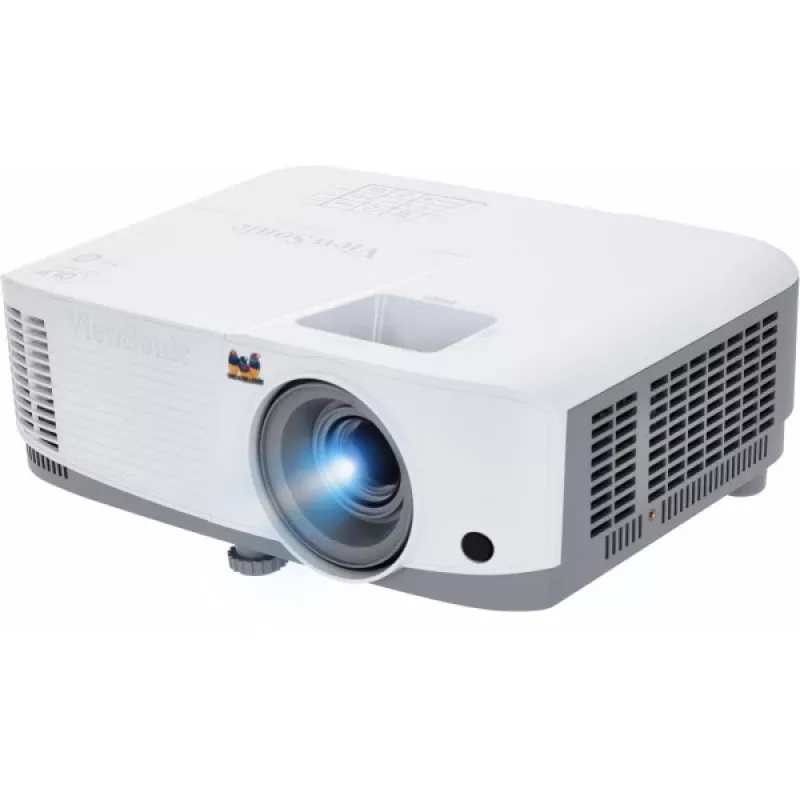

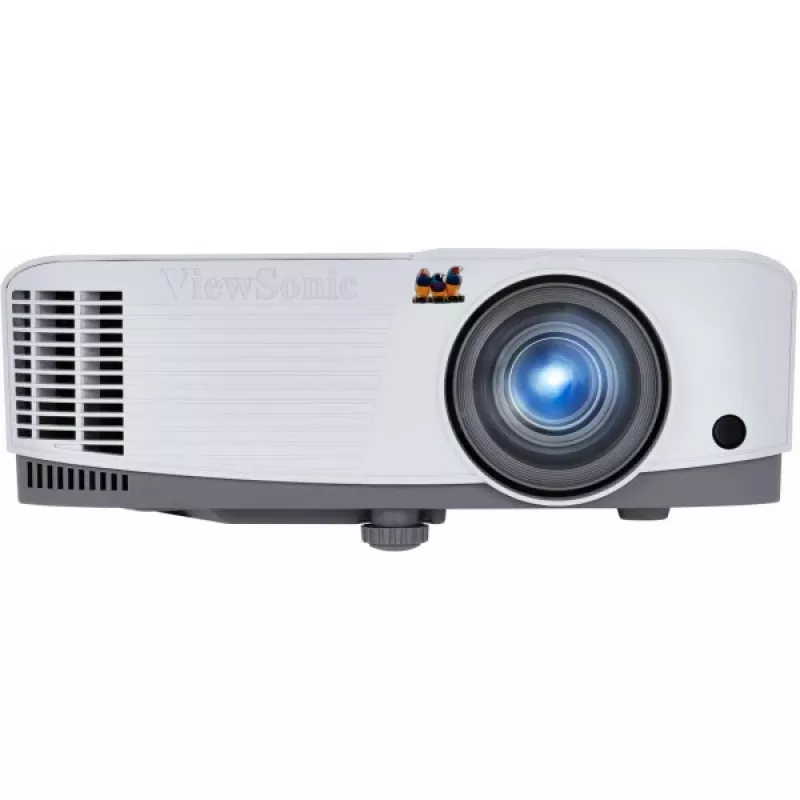

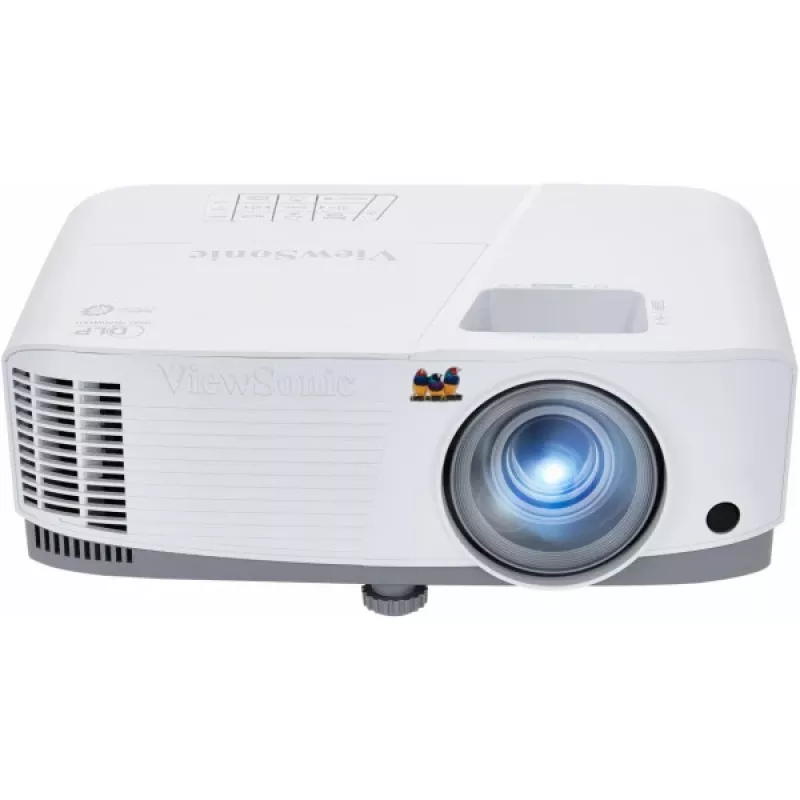

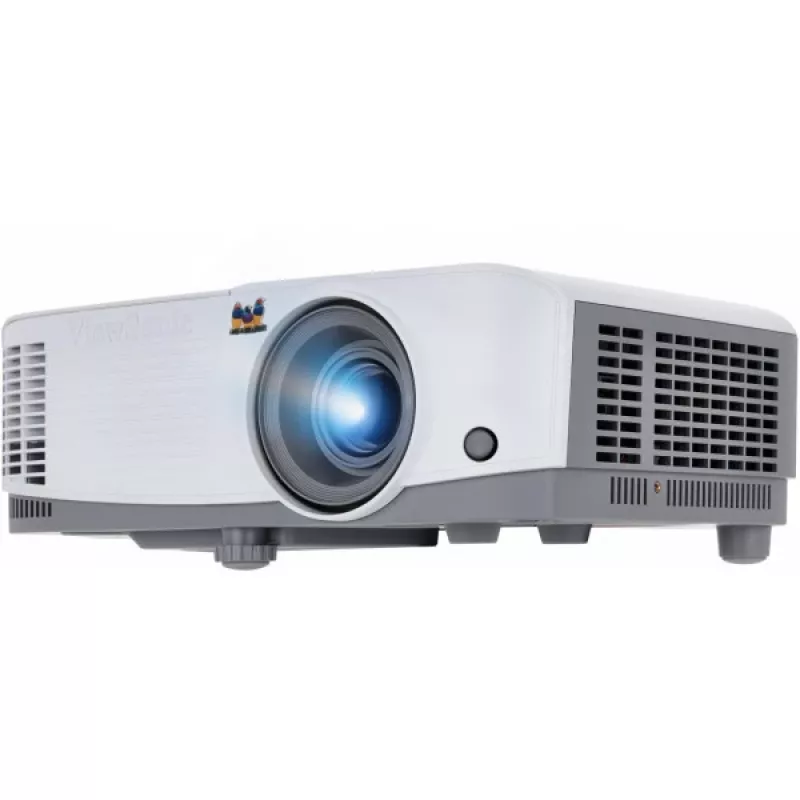

Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White

The ViewSonic PA503W is a data projector with WXGA (1280x800) native resolution and a bright lamp that delivers up to 3800 ANSI lumens. It uses DMD projection technology and offers flexible connectivity including HDMI, two VGA inputs, VGA output, composite video and audio in/out. The projector is designed for standard-throw setups and supports Full HD 1080p signals. SuperColor technology widens the color gamut for more natural images, while SuperEco power management reduces power consumption and extends lamp life.

Advantages

The PA503W combines high brightness and WXGA resolution for clear presentations in classrooms and small meeting rooms. A variety of input ports ensures compatibility with laptops and legacy devices. Energy-saving SuperEco mode lowers operating costs and prolongs lamp life. The compact white chassis and manual focus make installation and alignment straightforward.

Suitable for

• Classroom presentations and lectures
• Small to medium business meeting rooms
• Training sessions and workshops
• Basic home theater or video playback where WXGA is sufficient

Key specifications

• Native resolution: WXGA (1280 x 800)
• Brightness: 3800 ANSI lumens
• Projection technology: DMD
• Lamp life: up to 5000 hours (up to 15000 hours in Eco modes, per manufacturer data)

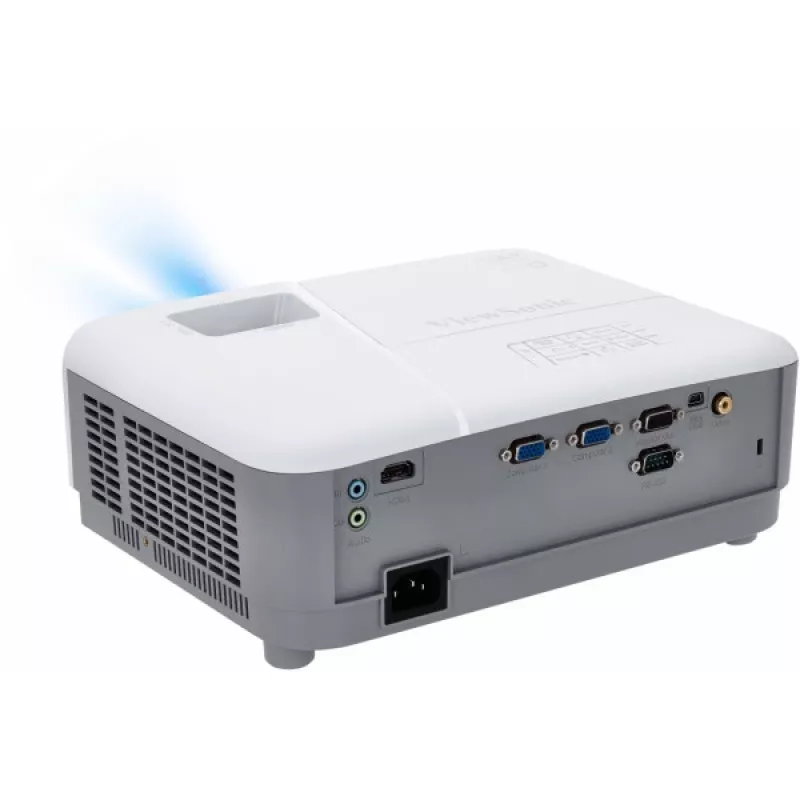

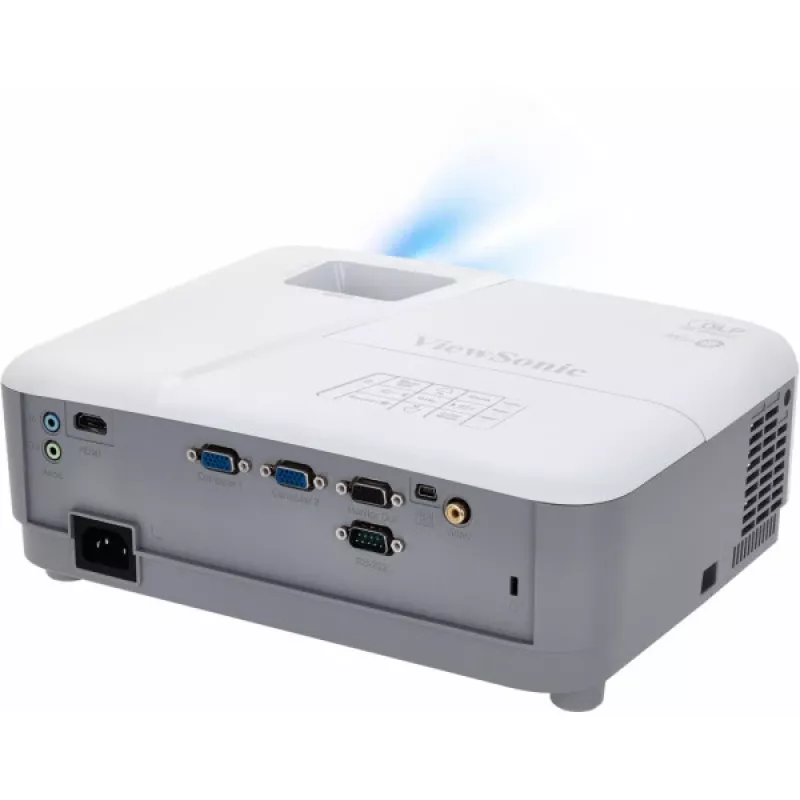

• Inputs/outputs: HDMI, 2 × VGA in, VGA out, Composite Video, Audio in/out
• Weight: 2.2 kg
• Colour: White

How to use

Place the projector on a stable surface or mount it according to the installation requirements for standard-throw projection. Connect a source device via HDMI or VGA, select the correct input on the projector, and adjust manual focus and keystone as needed for a sharp, rectangular image. Use the onboard menu to select image modes and enable SuperEco mode to reduce power consumption and extend lamp life.

Recommendations

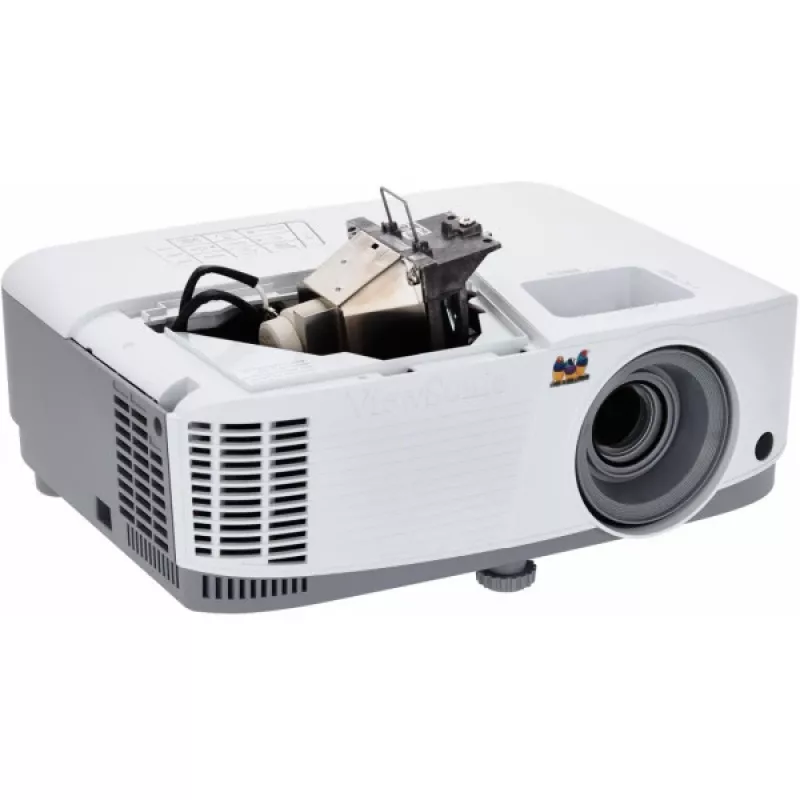

For best results in brightly lit rooms, position the projector to minimize ambient light on the projection surface and use the higher brightness settings. Switch to Eco mode for extended lamp life when maximum brightness is not required. Regularly clean the air filter and follow the lamp replacement schedule in the user manual to maintain image quality.
