Desktop projector Epson EB-W49 — 3LCD, WXGA 1280×800, 3800 ANSI lm, 16:10, 1.2x manual zoom, 2.7 kg, white

The Epson EB-W49 is a compact, WXGA (1280x800) 3LCD projector designed for clear presentations and video in portable or fixed installations. With 3,800 ANSI lumens brightness, a 16,000:1 contrast ratio and support for screen sizes up to 320 inches, it delivers sharp text and vivid images. The unit includes a built-in 5W speaker, full-size HDMI and RS-232C connectivity, and a lamp light source offering up to 8,000 hours of life under normal use (up to 17,000 hours in Eco mode). Its white housing and light weight make it suitable for classrooms, meeting rooms and mobile setups.

Advantages

The EB-W49 combines high brightness and a wide contrast range for good image quality in well-lit environments, while its compact, durable design supports portability and easy placement. Long lamp life in Eco mode reduces maintenance needs, and the built-in speaker allows basic audio playback without extra equipment. Network capability via RJ45 and optional wireless upgrade provide flexible connectivity options.

Suitable for

• Classrooms and lecture halls
• Meeting and conference rooms
• Corporate presentations and training
• Mobile presenters and on‑site demonstrations

Key specifications

• Brightness: 3,800 ANSI lumens
• Native resolution: WXGA (1280 x 800), 16:10
• Projection technology: 3LCD
• Contrast ratio: 16,000:1
• Lamp life: up to 8,000 hours (standard), up to 17,000 hours (Eco mode)
• Speaker: 5W built-in

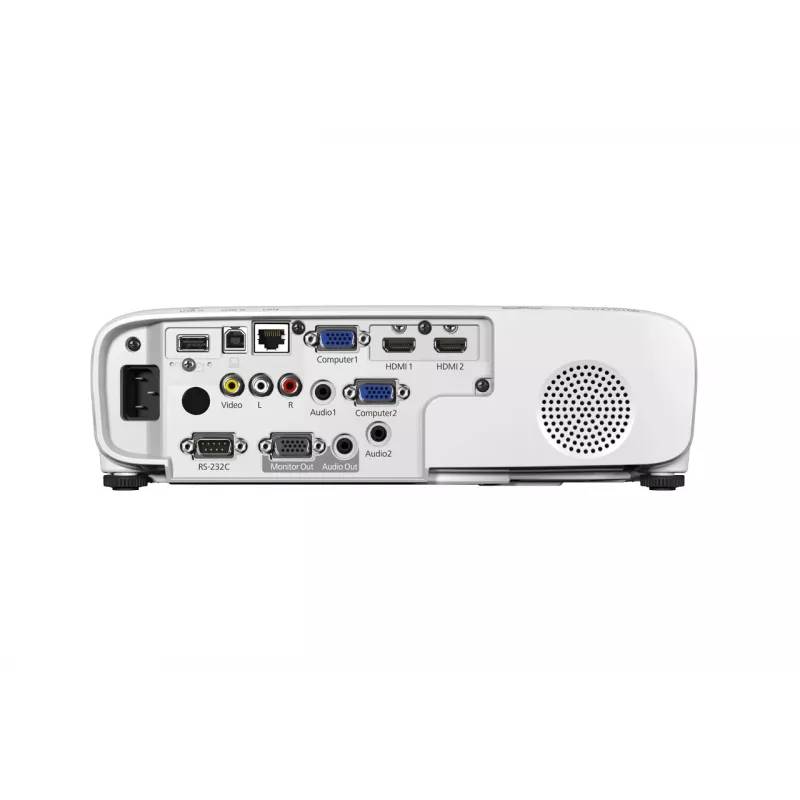

• Connectivity: HDMI (full-size), RS-232C, RJ45 (network)
• Weight: 2.7 kg
• Colour: White

How to use

Place the projector at the appropriate throw distance for the desired screen size and connect a source via HDMI, network or RS-232C. Power on the unit and select the input source. Use manual focus and the optical zoom to frame the image, then apply automatic vertical and manual horizontal keystone correction to correct distortion. Adjust picture mode (e.g., Dynamic, Cinema) and brightness settings as needed.

Recommendations

For best results in well-lit rooms, use the projector’s higher brightness modes; switch to Eco mode to extend lamp life when ambient light allows. Ensure adequate ventilation around the unit and perform periodic cleaning of air filters if applicable. If wireless connectivity is required, use the optional wireless accessory compatible with the EB-W49.
