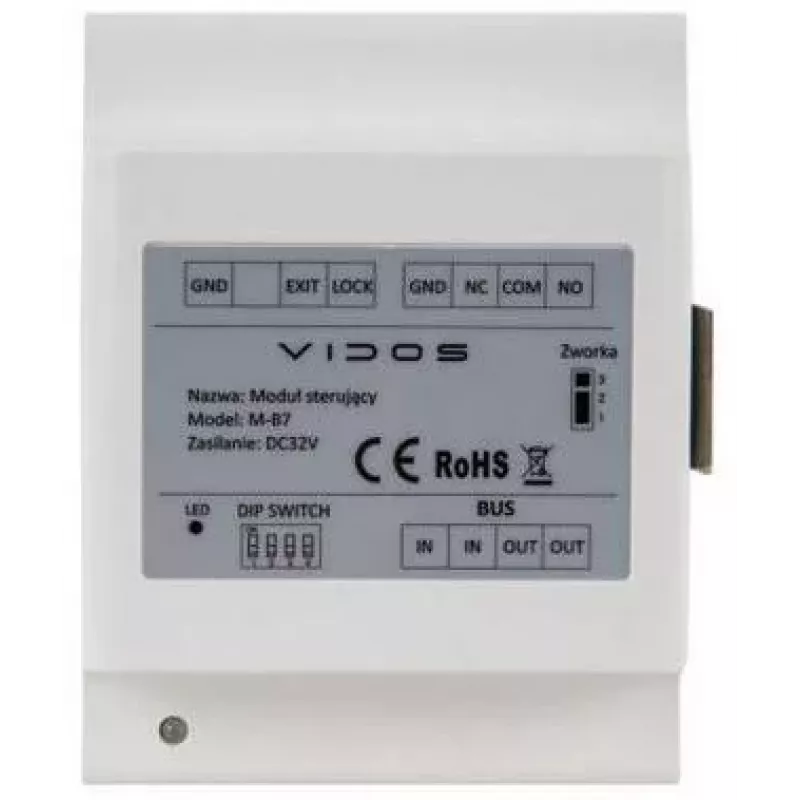

VIDOS 2IP M-B7 Control Module

The VIDOS 2IP M-B7 Control Module is a DIN rail mountable accessory designed to extend the access control capabilities of VIDOS DUO 2-wire systems. It provides an additional potential-free relay output for controlling a second gate or door, along with inputs for an exit button and door status sensor. The module is powered directly from the VIDOS DUO bus and features DIP switch addressing for easy configuration.

Advantages

Seamlessly integrates with existing VIDOS DUO installations, allowing expansion of access control points without additional wiring complexity. The compact 3-module DIN rail design saves space in electrical cabinets, and the potential-free relay ensures compatibility with various door strikes and locks.

Suitable for

• Extending access control in residential and commercial VIDOS DUO systems
• Controlling a second gate, door, or barrier
• Integration with third-party exit buttons and magnetic door contacts

Key specifications

• System Compatibility: VIDOS DUO 2-wire system
• Relay Outputs: 1 x Potential-free (NO/NC)
• Exit Button Input: 1
• Door Status Sensor Input: 1 (for magnetic contact)
• Power Supply: From VIDOS DUO bus (2-wire)

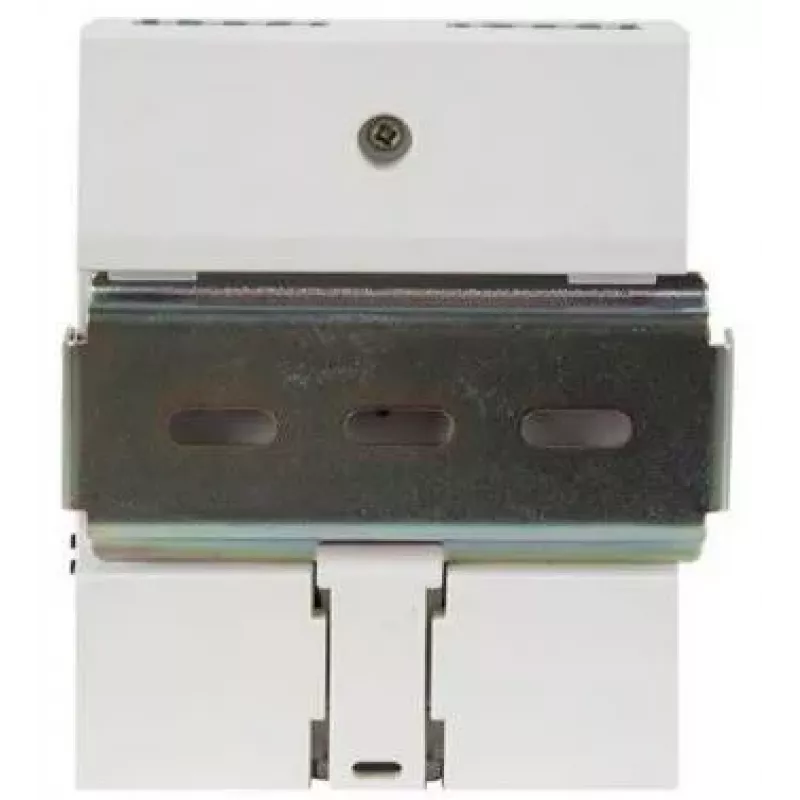

• Installation Type: DIN rail mount (35mm)
• Number of DIN Modules: 3
• Addressing: DIP switch configurable
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 0% to 90% RH (non-condensing)
• Housing Material: ABS Plastic
• Relay Contact Rating: Max 2A / 30V DC
• Communication Protocol: VIDOS DUO Bus (proprietary 2-wire)
• Programmable Features: Relay activation time

Recommendations

For optimal performance, use with VIDOS DUO compatible exit buttons and magnetic door contacts. Ensure the bus power supply can handle the additional load. The module should be installed by a qualified electrician.
