Video wall mount Neomounts LED-VW1750BLACK — single-screen, supports 32 inch–55 inch, max 35 kg, VESA 200x200–600x400, black

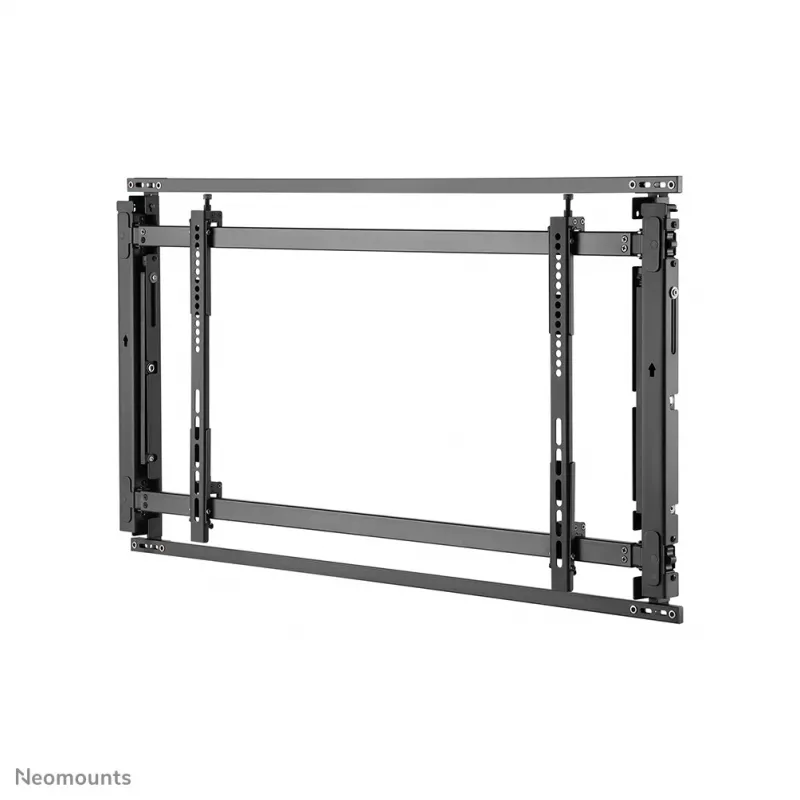

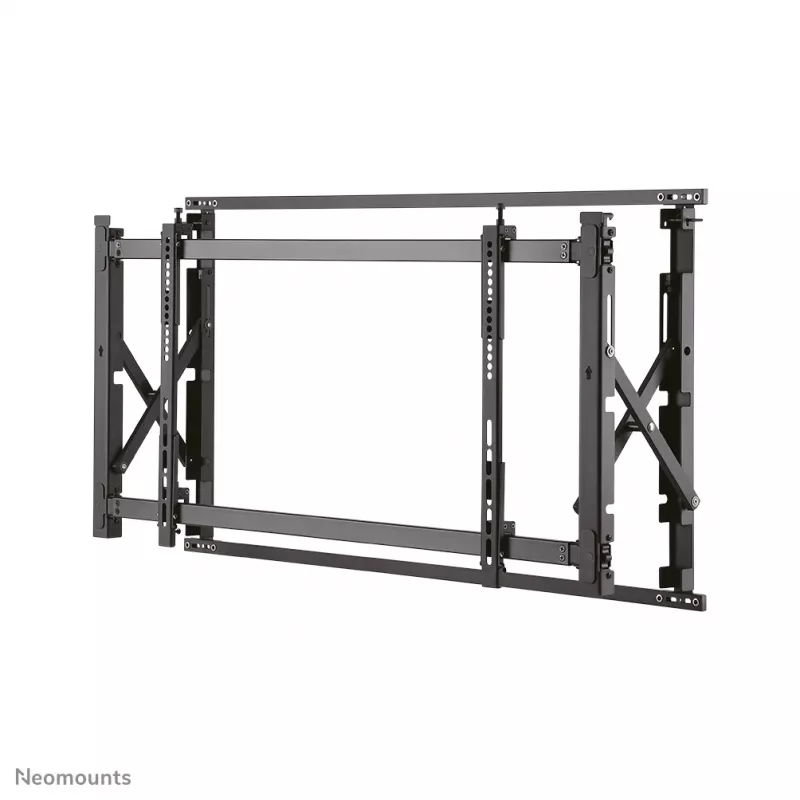

Neomounts LED-VW1750BLACK is a fixed single-screen video wall mount designed for LED/LCD displays from 32" (81.3 cm) up to 55" (139.7 cm). The bracket supports VESA patterns from 200×200 to 600×400 and has a maximum load capacity of 35 kg. Finished in black, the mount is intended for fixed video wall installations where a slim profile and reliable attachment are required. The mount depth ranges from 5 to 20 cm and includes a pull-out feature that allows the screen to be pulled out slightly for access and adjustment during installation or maintenance.

Advantages

The LED-VW1750BLACK offers a compact, robust solution for integrating single displays into a larger video wall array, combining wide VESA compatibility with a 35 kg weight limit to fit many commercial and professional screens. Its fixed design provides stable and secure mounting while the shallow depth helps maintain a neat, low-profile appearance. The pull-out mechanism simplifies access for cabling and quick maintenance without removing the display entirely.

Suitable for

• Indoor video wall installations in retail, corporate, and control-room environments
• Mounting single 32"–55" LED or LCD displays as part of a multi-screen array
• Fixed, low-profile installations where space behind the screen is limited
• Applications requiring easy access to rear connections and adjustments

Key specifications

• Supported screen size: 32"–55" (81.3–139.7 cm)
• VESA compatibility: 200 × 200 up to 600 × 400 mm
• Maximum load capacity: 35 kg
• Number of displays supported: single screen
• Mount depth: adjustable between 5 and 20 cm
• Finish: black

How to use

Attach the mount to a suitable load-bearing wall following local building regulations and using appropriate fixings for the wall material. Secure the bracket to the display using the VESA hole pattern that matches the screen (200×200 to 600×400). Lift and hook the screen onto the wall plate and engage the pull-out feature if rear access is required for cabling or adjustments. Verify the display is level and all fixings are tightened according to the manufacturer’s torque recommendations. Regularly inspect the mount and fixings for wear or loosening when used in continuous operation.

Recommendations

Use the LED-VW1750BLACK only with screens that do not exceed 35 kg and that match the supported VESA patterns. Select wall anchors and screws rated for the combined weight of the mount and display and suitable for the wall substrate. For multi-screen video wall projects, plan alignment and gap tolerances before installation to achieve a uniform visual result. When in doubt, consult a professional installer for secure and compliant mounting.
