Neomounts NM-D775SILVERPLUS Monitor arm 10-49 inch - gas spring - Topfix - 180°-stop

The Neomounts NM-D775SILVERPLUS is a tilt-, swivel- and rotatable desk mount designed specifically for curved screens up to 49" (124.5 cm). It supports a maximum weight of 18 kg and fits VESA patterns from 75 x 75 mm to 100 x 100 mm. The silver finish and compact clamp or grommet fixing make it suitable for desks, counters and reception areas where space saving and flexible screen positioning are required.

Advantages

The NM-D775SILVERPLUS features reinforced mounting hardware for curved panels, a gas-spring assisted height adjustment up to 60 cm and adjustable depth from 0 to 63 cm. It provides wide movement ranges including tilt (-45° to 45°), 180° tilt stop, 360° rotate and up to 180°/360° swivel, enabling precise positioning of ultra-wide and curved monitors. Integrated cable management conceals and routes cables for a tidy installation. All installation materials are included.

Suitable for

• Home and office desks where a curved monitor up to 49" is used
• Reception counters and customer-facing workstations
• Workstations needing flexible height and viewing angle adjustment

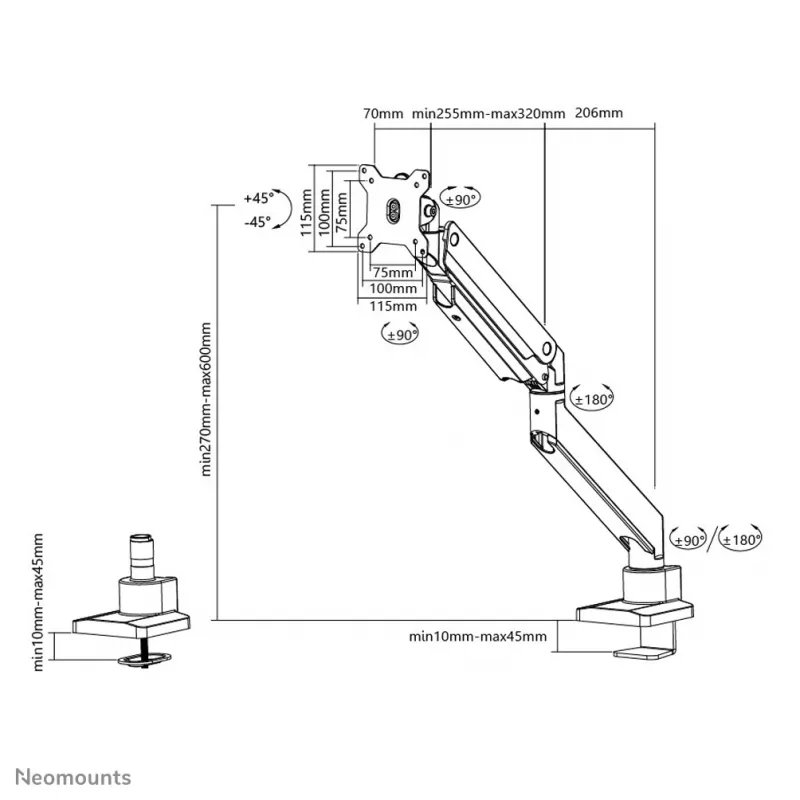

Key specifications

• Model: Neomounts NM-D775SILVERPLUS
• Maximum screen size: 49" (124.5 cm)
• Maximum weight capacity: 18 kg
• VESA compatibility: 75 x 75 mm to 100 x 100 mm
• Height adjustment: up to 60 cm (gas spring)
• Depth adjustment: 0–63 cm
• Movement: tilt -45°/+45° (with 180° stop), rotate 360°, swivel up to 180°/360°
• Colour: Silver
• Number of displays: 1

How to use

Choose either the top-fix desk clamp or the grommet mount depending on your desk. Attach the arm to the desk following the included installation materials and mount the monitor using the compatible VESA holes (75 x 75 mm or 100 x 100 mm). Use the gas spring to set the desired height (up to 60 cm) and adjust depth, tilt, swivel and rotation to achieve the preferred viewing angle. Route the monitor cables through the integrated cable management channel for a neat setup.

Recommendations

Ensure the monitor weight does not exceed 18 kg and confirm your screen uses a supported VESA pattern before installation. Tighten all fasteners according to the included instructions and check adjustments gradually to avoid sudden movements.
