Equip 45 inch-70 inch Pop-Out Video Wall Mount Bracket Max weight 70 kg

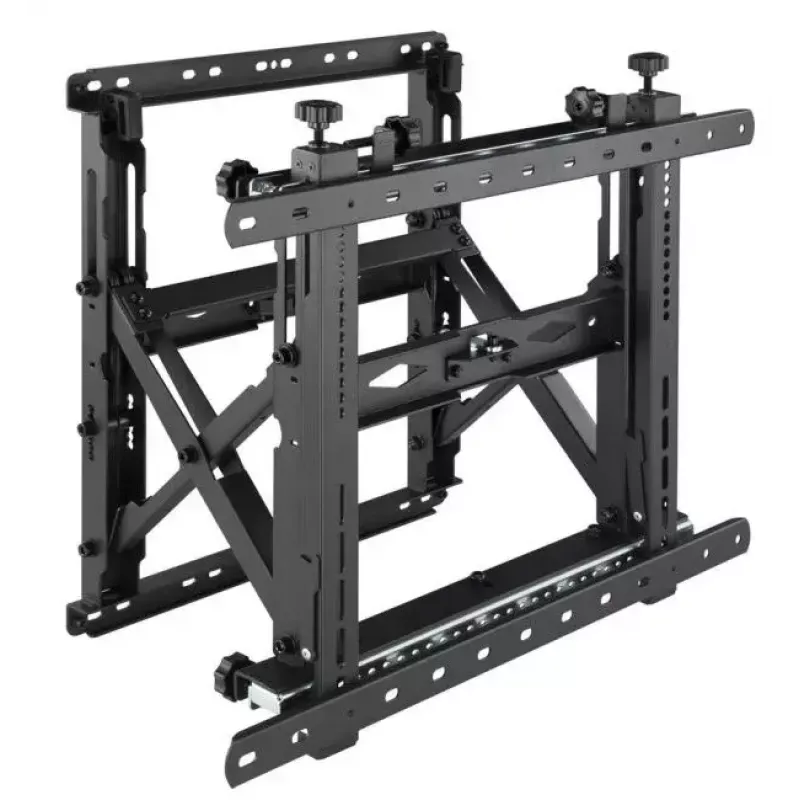

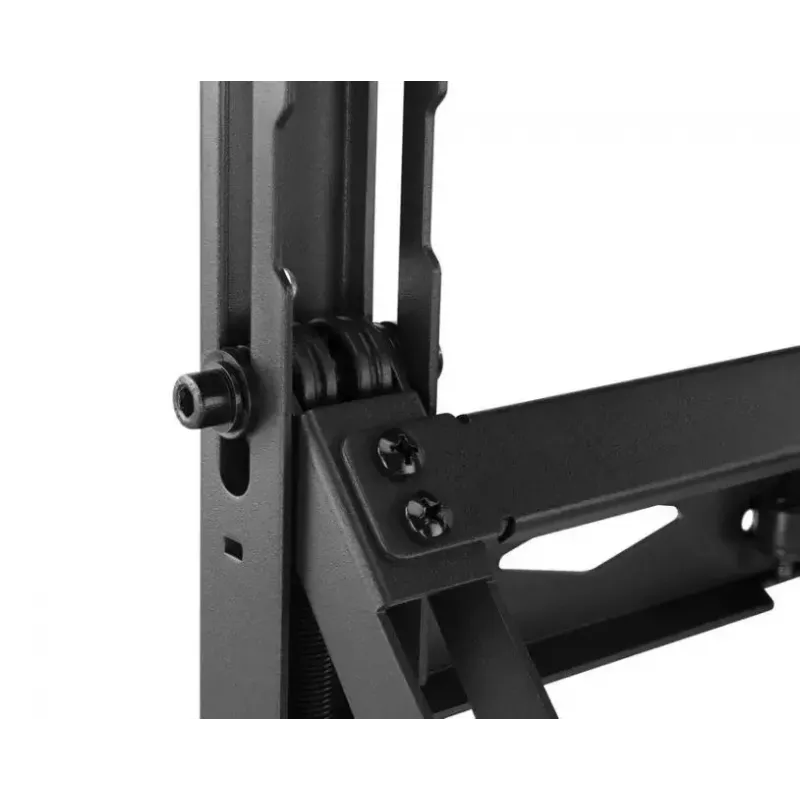

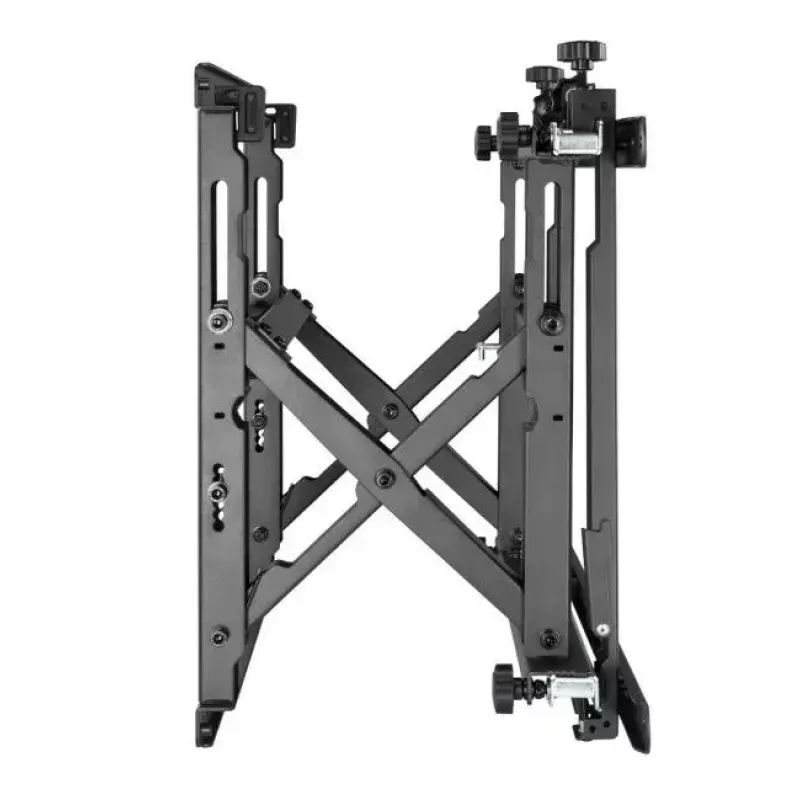

The equip® 650352 Pop-Out Video Wall Mount Bracket is a professional mounting solution designed for single-screen video wall installations. It supports displays from 45" to 70", accepts VESA patterns up to 600 x 400 mm and has a maximum load capacity of 70 kg. The mount features a pop-out mechanism for easy access to the display for maintenance and a subtle tilt range to fine-tune screen alignment. The product comes in a black finish and is intended for fixed video wall deployments where quick serviceability and accurate positioning are required.

Advantages

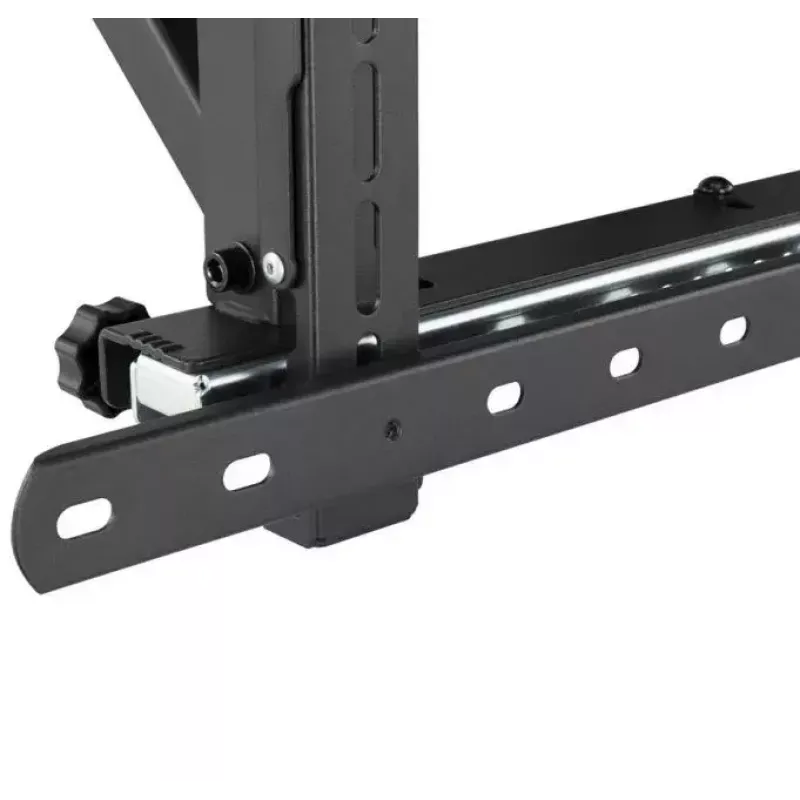

The pop-out feature enables fast, front-access serviceability without dismantling the surrounding structure, which reduces maintenance time. The bracket supports large screens up to 70" and accommodates common VESA patterns up to 600 x 400 mm, allowing compatibility with many professional displays. A narrow tilt adjustment range helps achieve precise leveling across a multi-screen array. The product’s sturdy construction offers a high maximum load capacity of 70 kg while remaining compact and straightforward to install.

Suitable for

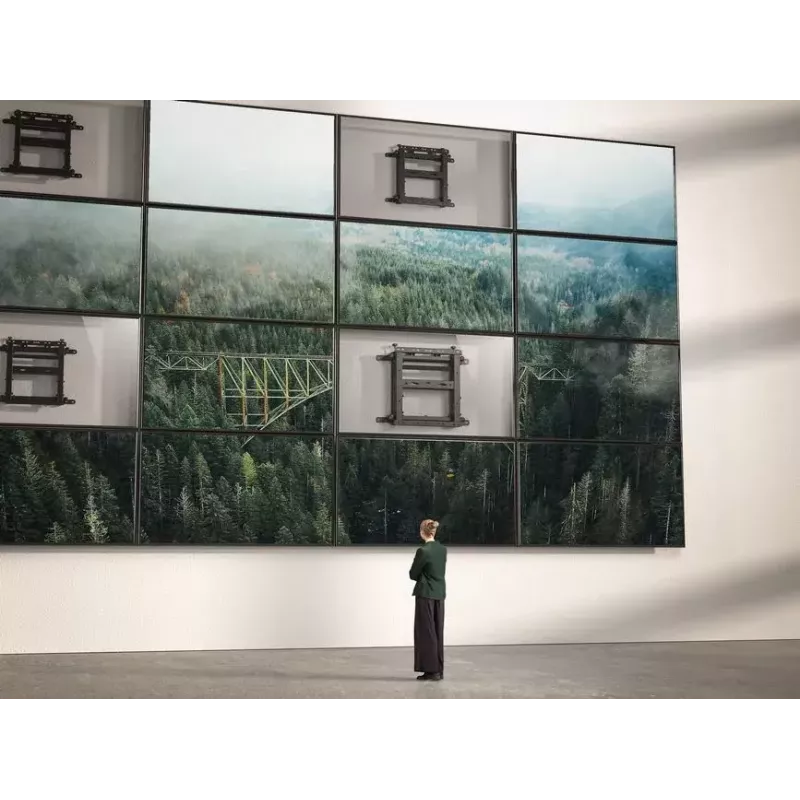

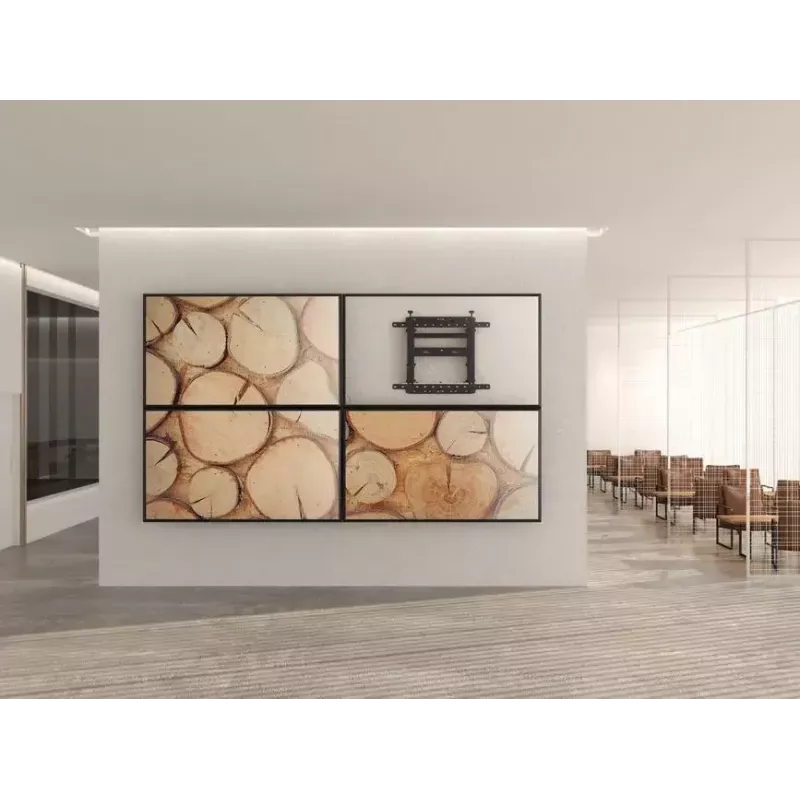

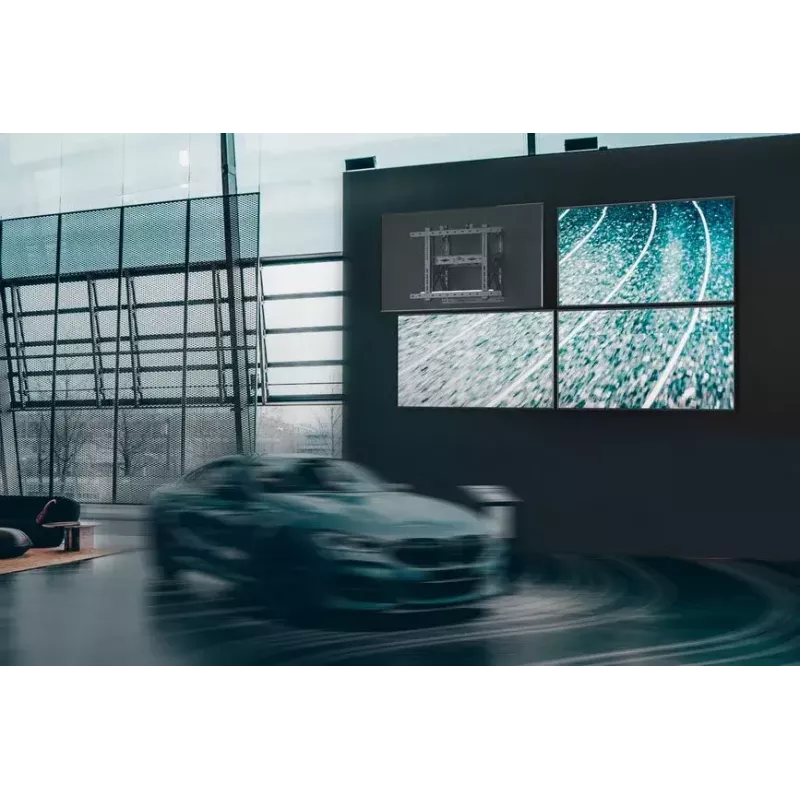

• Single-screen video wall modules in retail, control rooms, and corporate environments
• Installations requiring front access for maintenance or quick replacement
• Professional AV setups using displays with VESA up to 600 x 400 mm

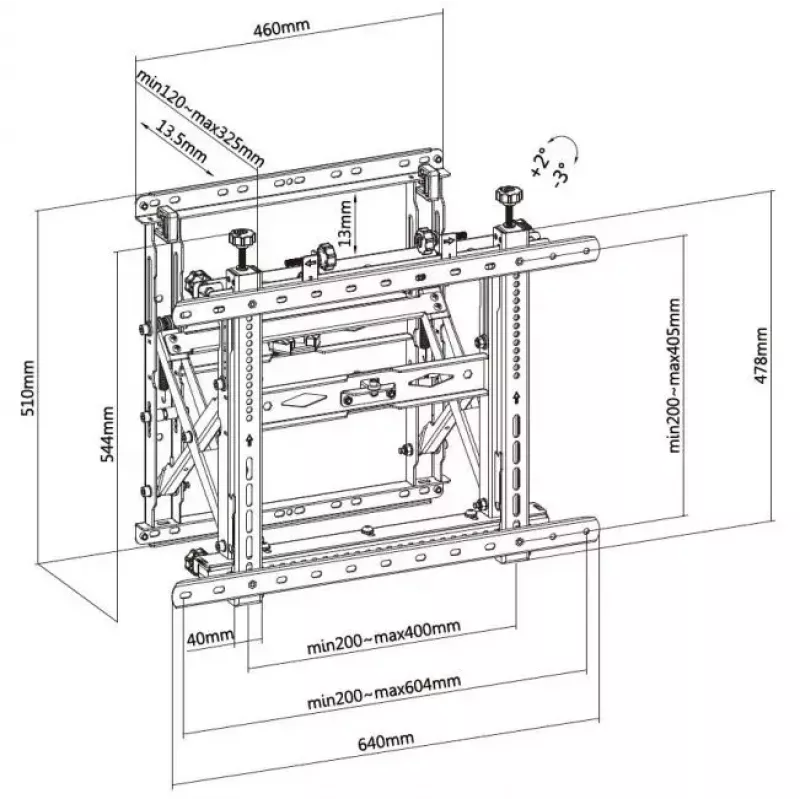

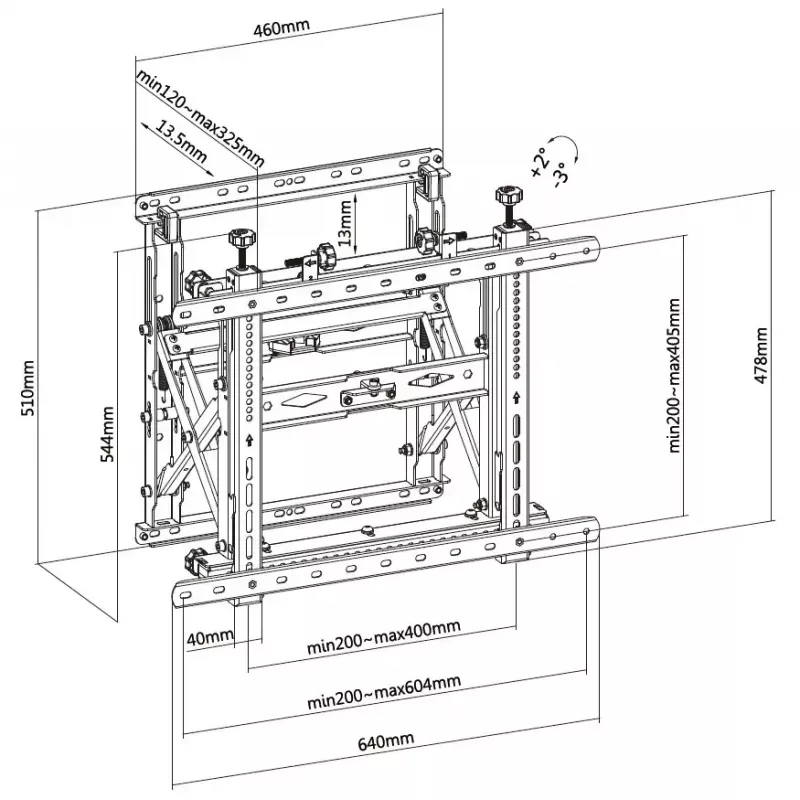

Key specifications

• Compatible screen sizes: 45"–70"
• Maximum load capacity: 70 kg
• Supported VESA pattern: up to 600 x 400 mm

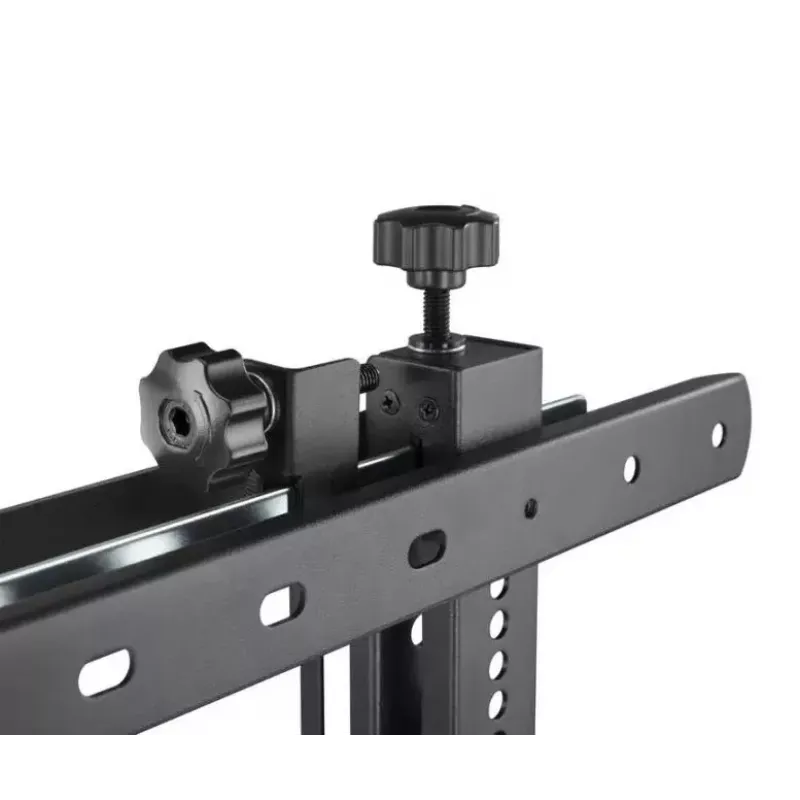

• Tilt range: -3° to 2°
• Bracket weight: 13.2 kg
• Finish: black

How to use

Mount the bracket to a suitable, load-bearing wall structure following local building codes and the manufacturer’s installation instructions. Attach the display to the bracket using the appropriate VESA holes and fasteners for the screen. Use the pop-out function to access the rear and sides of the display for cable routing and service. Adjust the small tilt range to align the display precisely with adjacent panels in the video wall.

Recommendations

Ensure the wall structure can support the combined weight of the bracket and display (up to 70 kg). Verify the display’s VESA pattern and use appropriate bolts and washers rated for the load. Allow front-access clearance for the pop-out operation and perform alignment with all panels installed to achieve a uniform video wall surface.
