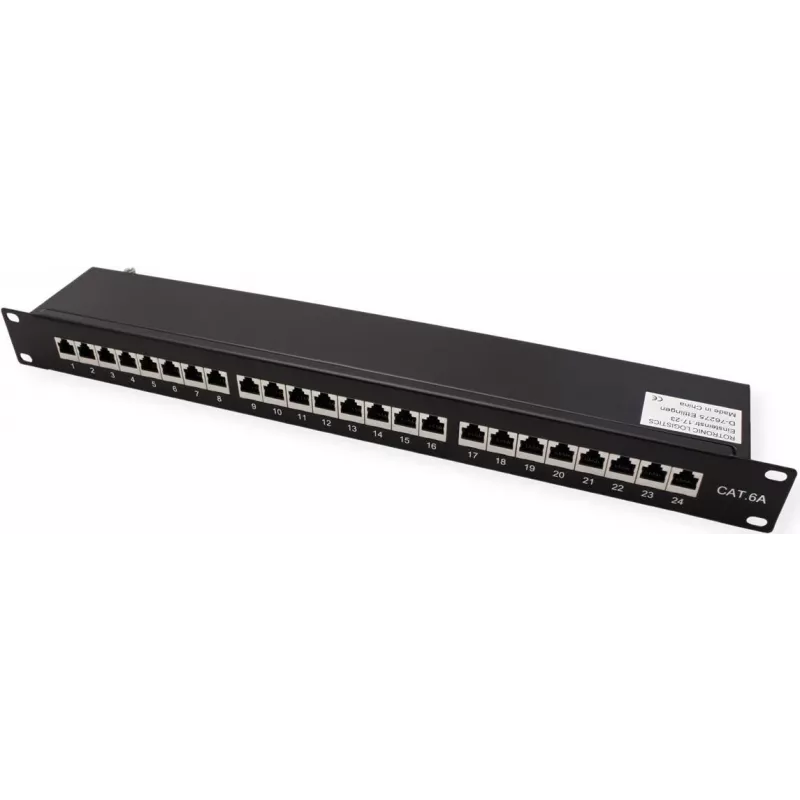

VALUE 19-inch Patch Panel Cat6A/Class EA 24 Ports Shielded Black

The VALUE 19-inch Patch Panel Cat6A/Class EA 24 Ports Shielded Black is a high-performance networking solution designed for structured cabling in data centers and enterprise environments. It supports Category 6A / Class EA standards, ensuring reliable data transmission up to 10 Gigabit Ethernet. The panel features 24 shielded RJ45 ports with LSA (IDC) termination on the rear, providing secure and stable connections. Its 1U rack-mountable design fits standard 19-inch racks, and the black SPCC steel housing offers durability and effective grounding. Included rear cable tie bar aids in cable management.

Advantages

This patch panel ensures high-speed data transfer with minimal crosstalk and interference, thanks to its shielded construction and gold-plated contacts. It supports both T568A and T568B wiring standards, offering flexibility for various network setups. The robust design and compliance with international standards guarantee long-term reliability.

Suitable for

• Data centers requiring high-density patching
• Enterprise network infrastructure
• Telecommunication rooms
• 10 Gigabit Ethernet applications

Key specifications

• Performance Category: Cat.6A / Class EA
• Number of Ports: 24
• Shielding: Shielded (FTP/STP compatible)
• Rack Size: 19-inch, 1U
• Color: Black
• Front Connector: RJ45 (8P8C)
• Rear Termination: LSA (IDC) terminals
• Wiring Standard: TIA/EIA 568A/B
• Housing Material: SPCC Steel
• Grounding: Yes, with grounding wire and screw
• Cable Management: Rear cable tie bar included
• RJ45 Insertion Cycles: >750
• IDC Durability: >200 terminations
• Contact Plating: Gold-plated (50µm)
• Wire Gauge Compatibility: AWG 22-26 (solid or stranded)
• Operating Temperature: -10°C to +60°C
• Standards Compliance: ISO/IEC 11801, EN 50173, ANSI/TIA-568-C.2

Recommendations

For optimal performance, use with Cat6A shielded cables and ensure proper grounding. This panel is ideal for high-speed networks requiring minimal signal loss.
