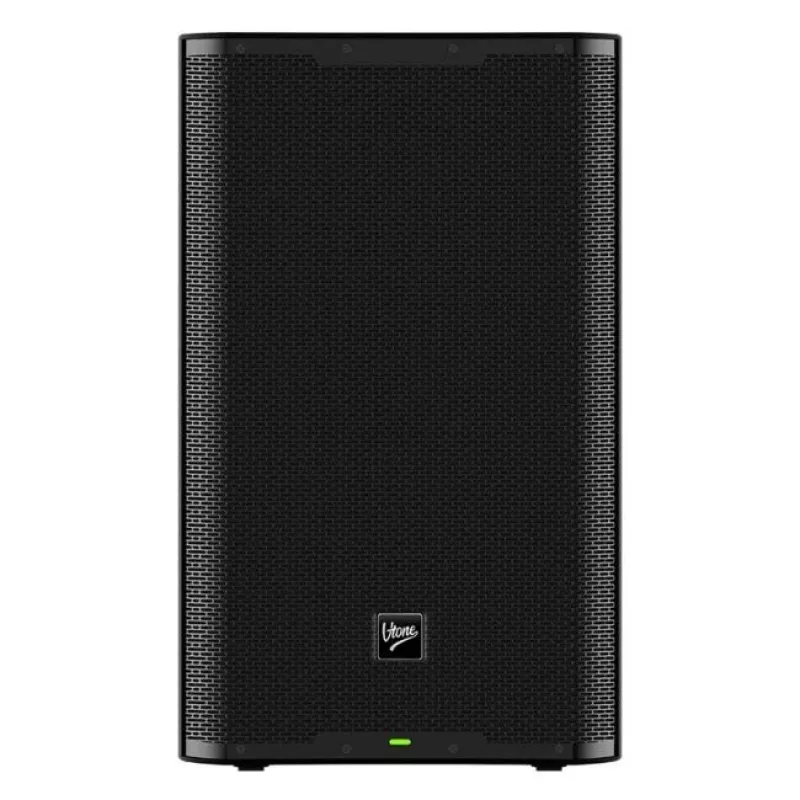

V-TONE OrionX 15 Active Speaker Column

The V-TONE OrionX 15 is a powerful active 2-way full-range PA loudspeaker designed for professional sound reinforcement. With a 15-inch woofer and 1.35-inch compression driver, it delivers clear, high-output audio for live performances, events, and installations. The built-in 2-channel mixer, Bluetooth streaming, and USB/SD media player offer versatile connectivity, while DSP presets optimize sound for various applications.

Advantages

High power output of 400W RMS (800W peak) ensures ample volume for medium to large venues. The lightweight polypropylene enclosure with integrated handles and pole mount makes setup easy. Bluetooth audio streaming and media player provide flexible playback options. DSP presets (Live, Music, Speech, Monitor) tailor the sound to different scenarios.

Suitable for

• Live bands and DJs
• Public speaking and conferences
• Outdoor events and parties
• House of worship and corporate events
• Portable PA system for mobile entertainers

Key specifications

• Speaker Type: Active 2-Way Full-Range PA Loudspeaker
• Woofer: 15 inches (381 mm)
• Tweeter: 1.35 inches (34 mm) Compression Driver
• Amplifier: Class D
• RMS Power: 400W
• Peak Power: 800W
• Frequency Response: 45 Hz - 20 kHz (-3dB)
• Max SPL: 128 dB
• Inputs: 2x XLR/TRS Combo, 1x RCA (L/R)
• Outputs: 1x XLR Link Out
• Built-in Mixer: 2-channel with independent gain control
• DSP Presets: Yes (Live, Music, Speech, Monitor)
• Bluetooth: Yes, for audio streaming
• Media Player: USB/SD Card MP3 Player with LCD display
• Enclosure Material: High-impact polypropylene
• Mounting: 35mm pole mount socket, integrated carry handles
• Dispersion: 90° H x 60° V
• Power Supply: AC 100-240V, 50/60Hz
• Protection: Overload, Thermal, DC Protection

Recommendations

For optimal performance, pair with a subwoofer for extended low-frequency response. Use high-quality XLR cables for reliable signal connection. Ensure proper ventilation around the amplifier to prevent overheating.
