V-TONE NBX-112 Active Speaker Cabinet 12 DSP

The V-TONE NBX-112 is a powerful active PA speaker cabinet featuring a 12-inch woofer and a 1.35-inch compression driver, delivering 500W RMS (1000W peak) of clear, dynamic sound. With built-in DSP presets, Bluetooth connectivity, and versatile input options, it is ideal for live performances, events, and installations.

Advantages

High power output with Class D amplifier ensures efficient performance. DSP presets optimize sound for music, live, speech, or monitor use. Bluetooth streaming allows wireless audio playback. Rugged polypropylene enclosure with pole mount and fly points for flexible setup.

Suitable for

• Live music performances
• DJ events and parties
• Public speaking and conferences
• Fixed installations in venues

Key specifications

• Speaker Type: Active PA Speaker
• Woofer: 12 inch (305 mm)
• Compression Driver: 1.35 inch (34 mm)
• Amplifier: Class D, 500W RMS / 1000W Peak
• Frequency Response: 50 Hz - 20 kHz
• Maximum SPL: 125 dB

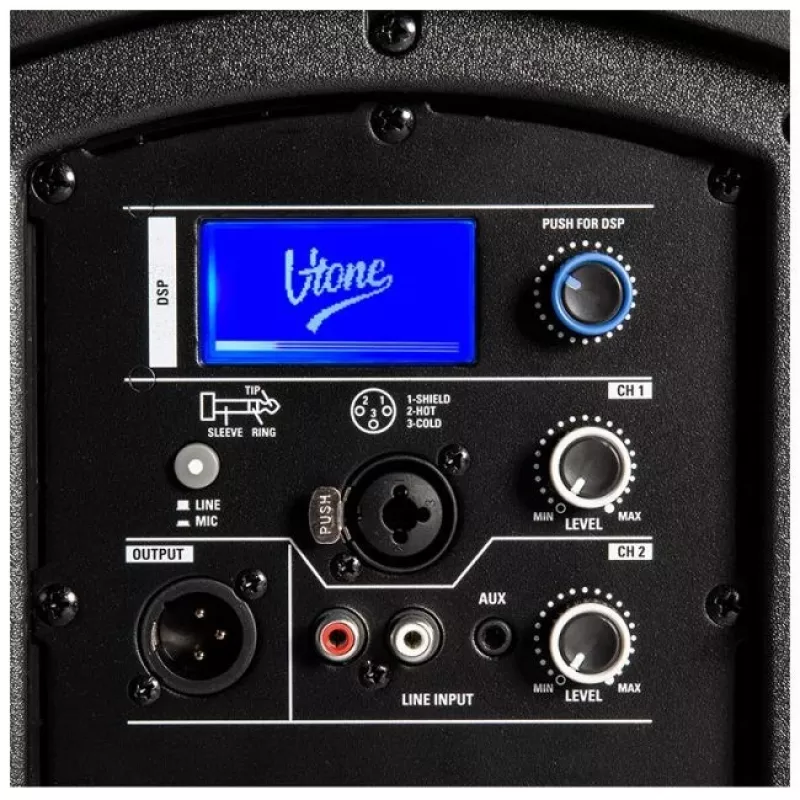

• DSP: Yes, with presets (Music, Live, Speech, Monitor)
• Bluetooth: Yes
• Inputs: 2 x XLR/TRS Combo, 1 x 3.5mm AUX
• Outputs: 1 x XLR Link Out
• Enclosure: Polypropylene
• Pole Mount: 35 mm standard
• Fly Points: Multiple M8
• Power Supply: 220-240V AC, 50/60Hz

Recommendations

For optimal performance, pair with a V-TONE subwoofer and use the DSP presets to match your application. Ensure proper ventilation and secure mounting.
