USB-C Quad DisplayLink Docking Station CLUB 3D CSV-2542 — 2× DisplayPort 8K60Hz, 2× HDMI 4K60Hz, PD 100W, 2.5G Ethernet

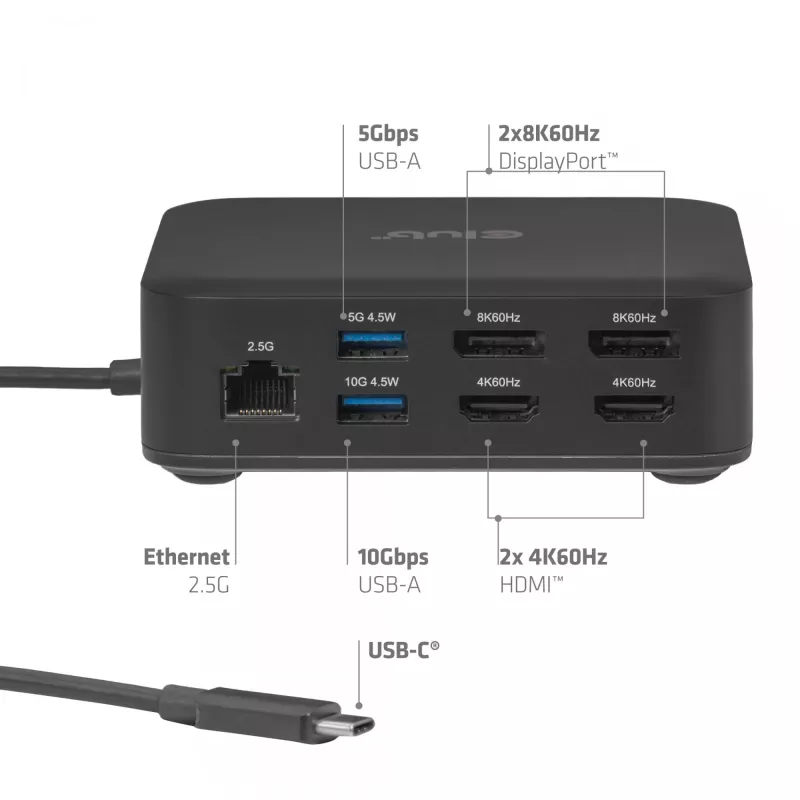

CLUB 3D CSV-2542 is a 12-in-1 USB-C quad DisplayLink docking station that expands a USB-C computer with multiple video outputs, high-speed wired networking and power delivery. It provides two DisplayPort outputs capable of up to 8K60Hz and two HDMI outputs up to 4K60Hz, connects via USB 3.2 Gen 2 (Type-C) and supports USB Power Delivery 3.0 with up to 100 W pass-through. The compact black unit includes a 2.5 Gbps Ethernet controller and several USB ports to extend peripheral connectivity.

Advantages

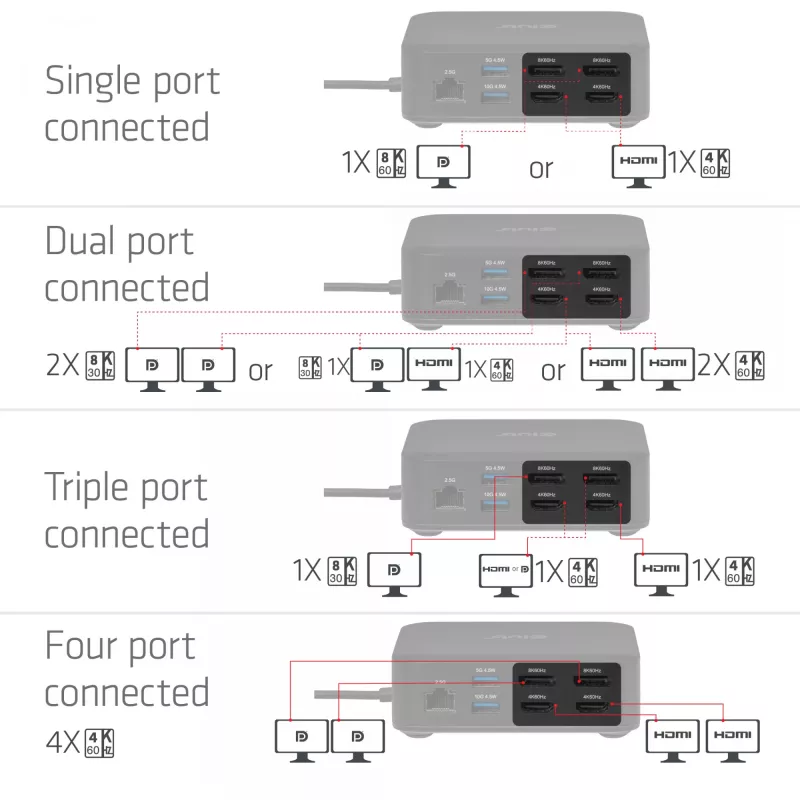

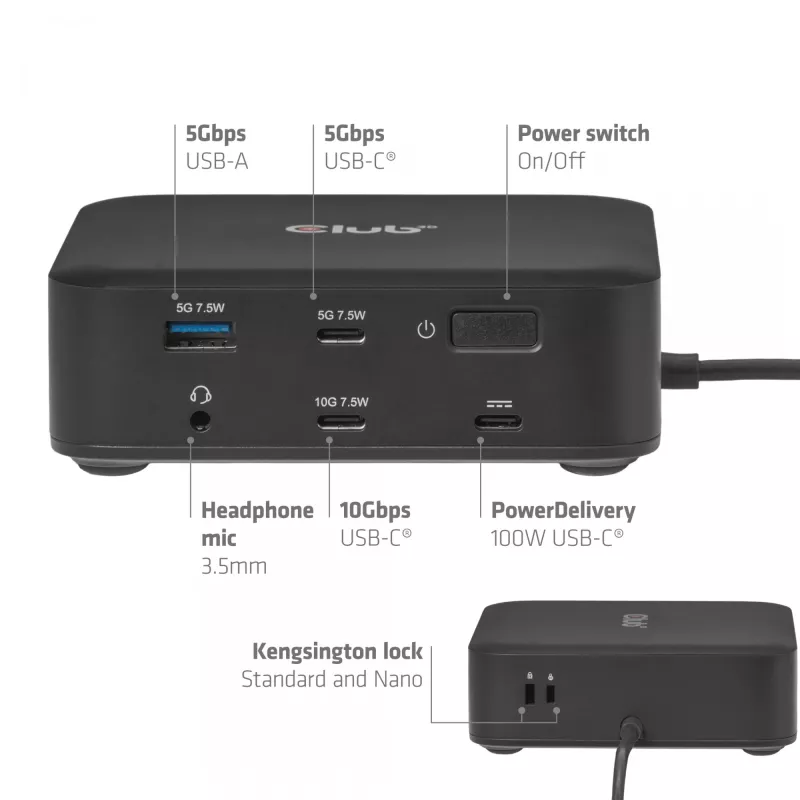

The docking station supports multi-monitor setups through DisplayLink technology while remaining compatible with Windows and macOS systems that support DisplayLink drivers. It delivers reliable wired network speeds up to 2.5 Gbps for stable data and streaming, and USB Power Delivery 3.0 allows laptop charging up to 100 W. Multiple USB ports (Type-A and Type-C) plus legacy USB 2.0 ports provide convenient expansion for peripherals.

Suitable for

Key specifications

How to use

Connect the docking station to your computer using the included USB-C cable (USB 3.2 Gen 2). Install DisplayLink drivers on your PC or Mac if required by your operating system to enable multi-monitor output. Attach displays to the DisplayPort and HDMI outputs as needed and connect peripherals to the available USB-A or USB-C ports. If you require wired network access, connect an Ethernet cable to the 2.5G Ethernet port. To charge the host device while using the dock, connect an external USB-C power adapter to the dock’s PD input; the dock supports up to 100 W pass-through.

Recommendations

For optimal multi-monitor performance, keep DisplayLink drivers up to date and use high-quality certified cables for DisplayPort and HDMI connections; ensure the host system supports DisplayLink for full functionality. Use a PD-capable USB-C power adapter rated for 100 W to maintain charging when multiple peripherals are connected.
