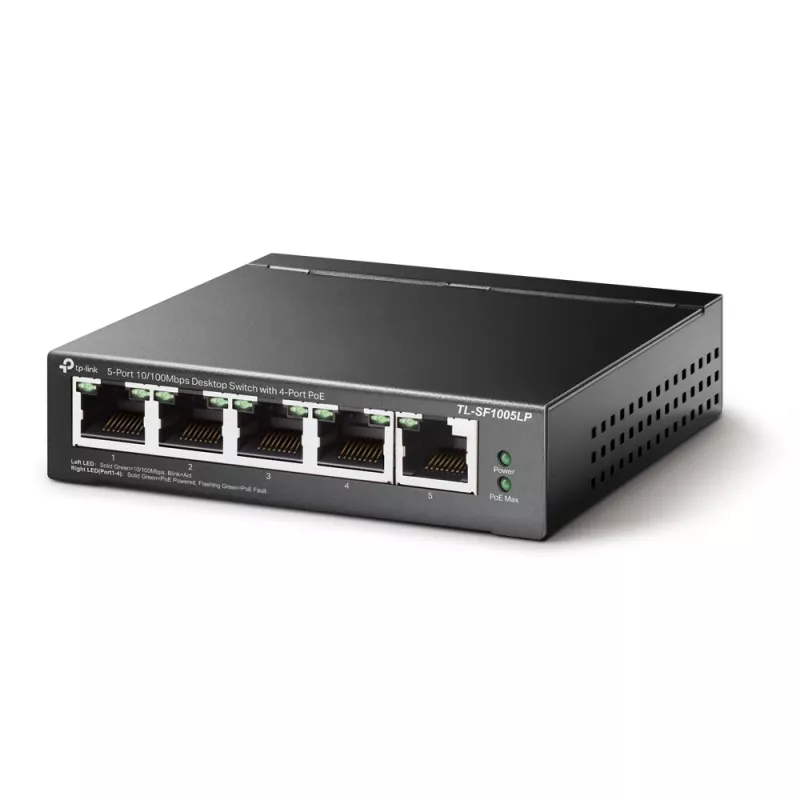

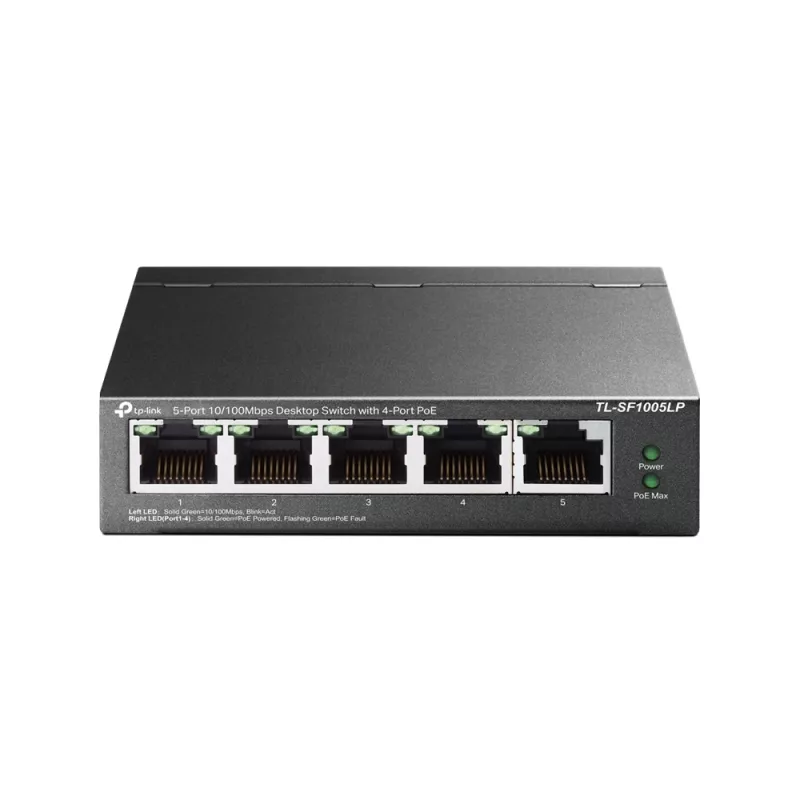

Unmanaged Switch TP-Link TL-SF1005LP 5-Port 10/100Mbps with 4-Port PoE

The TP-LINK TL-SF1005LP is an unmanaged Fast Ethernet switch with five 10/100 Mbps ports, including four IEEE 802.3af-compliant PoE ports and a total PoE budget of 41 W. Designed for small networks, it supplies data and power over Ethernet to IP cameras, access points, IP phones and other PoE devices. The metal casing and tested components provide durable operation for surveillance and basic network connectivity.

Advantages

The TL-SF1005LP supports up to 15.4 W per PoE port while maintaining a total budget of 41 W, enabling multiple PoE devices to run without separate power supplies. An extend mode allows PoE transmission distances up to 250 m for long-range camera deployment (with reduced port speed). One-touch Priority Mode lets you prioritise ports 1–2 for video traffic, and intelligent power management automatically cuts power to lower-priority ports if the total draw would exceed the 41 W budget, protecting connected devices.

Suitable for

• Small office IP camera systems and CCTV
• Dormitory or retail surveillance setups
• Powering and connecting wireless access points
• Small business networks requiring PoE for phones or cameras

Key specifications

• Model: TL-SF1005LP
• Ports: 5 × 10/100 Mbps RJ-45 (4 with PoE)
• PoE standard: IEEE 802.3af, up to 15.4 W per PoE port, 41 W total budget
• Switching capacity: 1 Gbit/s
• MAC address table: 2000 entries
• Extend mode: PoE transmission up to 250 m (speed reduced to 10 Mbps)
• Product colour: Black; casing: metal
• Standards: IEEE 802.3, 802.3u, 802.3x, 802.3af

How to use

Install the TL-SF1005LP on a flat surface or mount it in a suitable location. Connect non-PoE and PoE devices to the appropriate RJ-45 ports using Cat5e or better cabling. The switch is unmanaged and requires no configuration: it provides automatic detection and power negotiation for PoE devices. To extend distance for a remote camera, enable extend mode (consult the product manual) and note that port speed will fall to 10 Mbps at longer distances.

Recommendations

Use high-quality Cat5e or Cat6 cable for reliable PoE delivery and to maximise transmission distance. Reserve ports 1–2 for critical cameras or video equipment when you need priority video delivery. Ensure the total PoE power consumption of connected devices does not exceed the 41 W budget; if necessary, assign lower-power devices to lower-priority ports.
