Ubiquiti UniFi USW Flex Mini 5-Port Managed Gigabit PoE Switch White

Compact yet surprisingly capable, the UniFi Switch Flex Mini brings UniFi's centralized management to the smallest spaces. Unlike typical unmanaged desktop switches that simply pass traffic, this five-port Gigabit switch integrates seamlessly with the UniFi Network Controller, giving you VLAN support, per-port monitoring, and remote configuration in a package that fits in your palm. It can be powered by PoE or USB-C, making it ideal for locations where a power outlet is inconvenient.

Highlights

• Five Gigabit Ethernet ports with non-blocking throughput
• Managed Layer 2 features via UniFi Controller (VLANs, port profiles, monitoring)
• Flexible power: 802.3af/at PoE input or USB-C (5V, 1A)
• Ultra-compact polycarbonate enclosure, mountable or desktop
• Silent, fanless operation with low 2.5W power consumption

In daily use

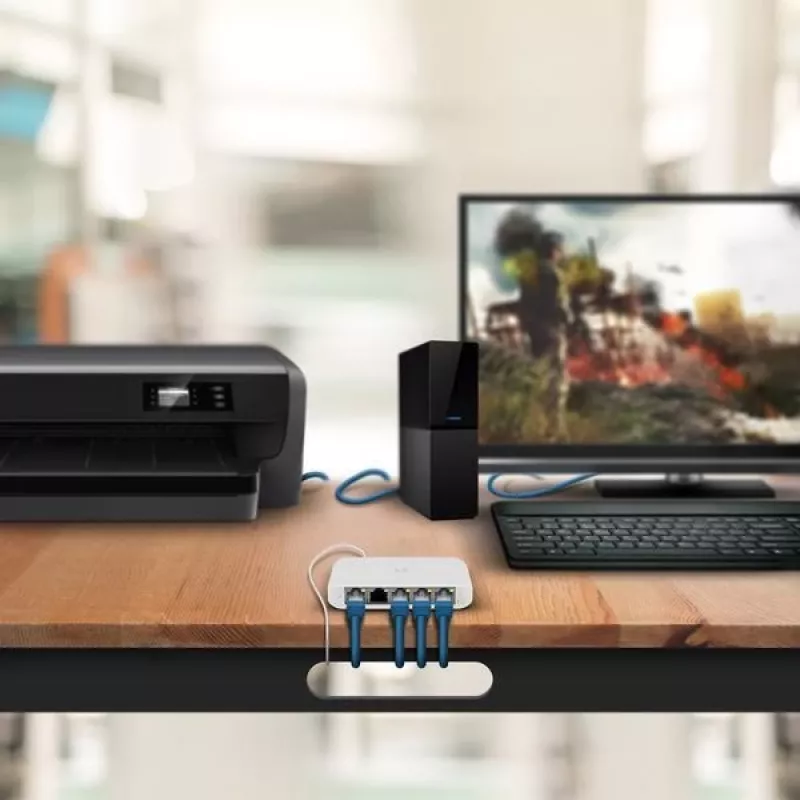

Place the Flex Mini on a desk, mount it on a wall, or tuck it behind a TV—it stays cool and silent. Connect your devices and adopt the switch in minutes using the UniFi mobile app. From the controller, you can assign VLANs to specific ports, check traffic statistics, and apply port profiles. The white LED indicates system status, while each port's LED shows link speed and activity at a glance. Because it draws power from PoE or USB-C, you can deploy it in areas without nearby AC outlets, such as under a conference table or inside a ceiling box.

Full specifications

• Switch type: Managed Layer 2
• Ports: 5x 10/100/1000 Mbps RJ45
• PoE input: 802.3af/at on port 1 or USB Type-C (5V, 1A)
• Switching capacity: 10 Gbps
• Forwarding rate: 7.44 Mpps
• Total non-blocking throughput: 5 Gbps
• Max power consumption: 2.5W
• Management: Ethernet in-band via UniFi Network Controller
• Jumbo frame support: up to 9000 bytes
• Operating temperature: -5 to 45° C
• Operating humidity: 10 to 90% noncondensing
• ESD/EMP protection: Air ±16 kV, contact ±12 kV
• Enclosure: Polycarbonate
• LEDs: System (white/blue), RJ45 (amber/green)
• Certifications: CE, FCC, IC
• Mounting: Desktop

Final note

For integrators and home users alike, the USW Flex Mini is a smart way to extend a managed UniFi network into tight spots without adding noise or clutter.
