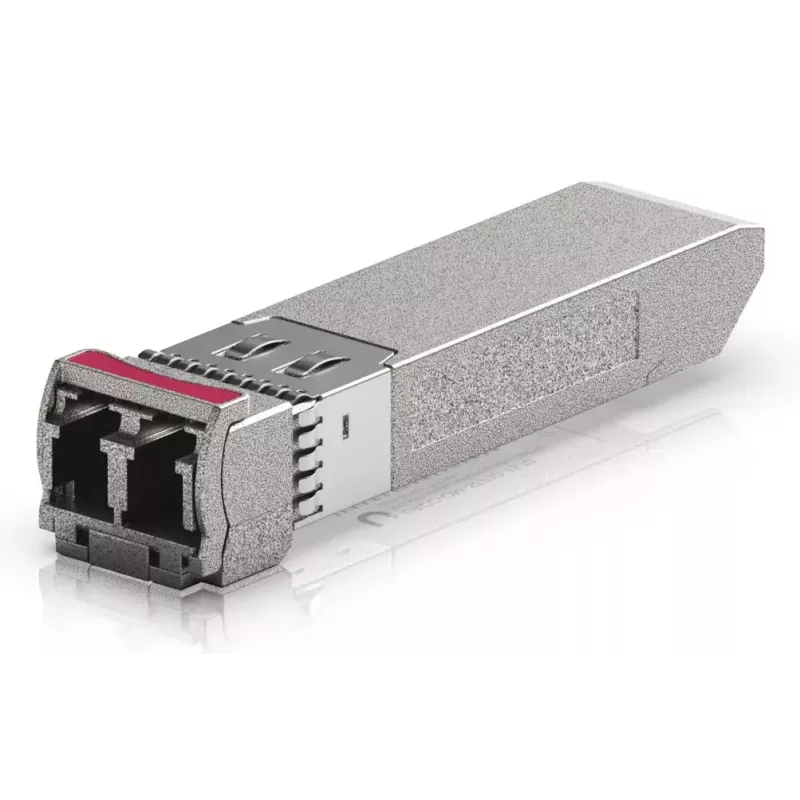

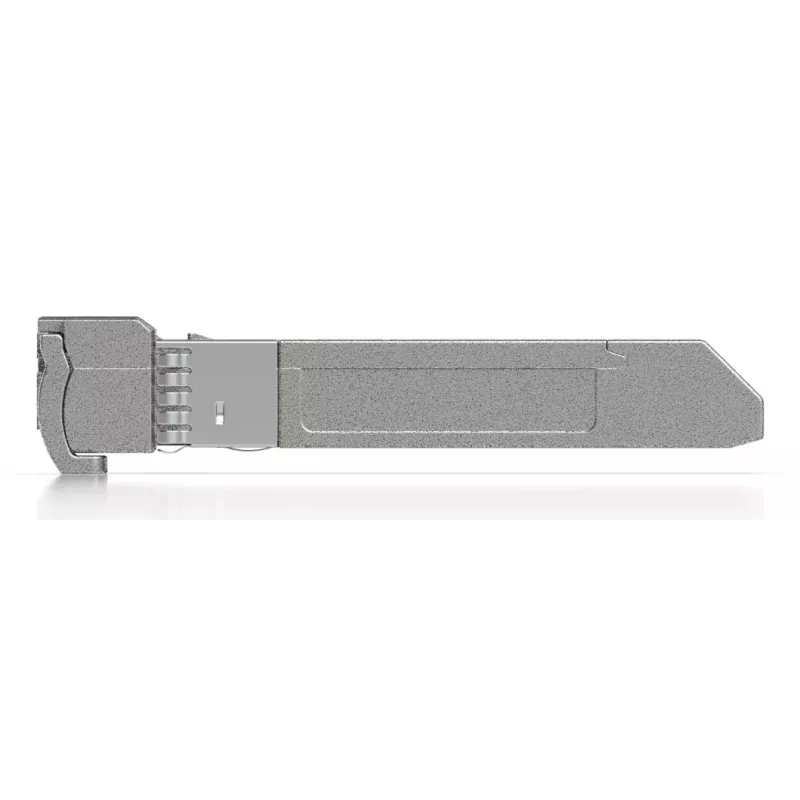

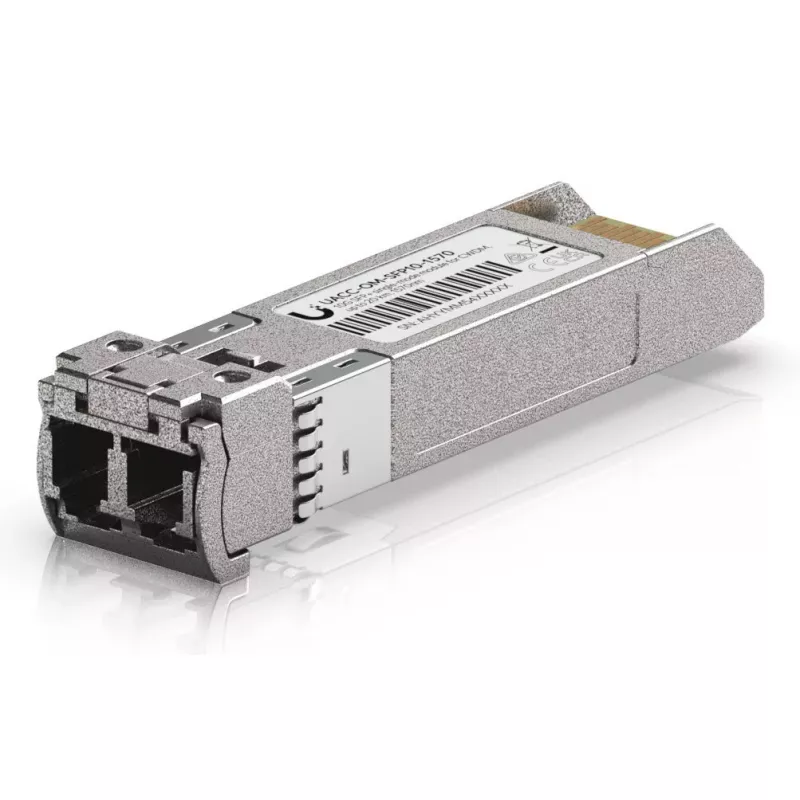

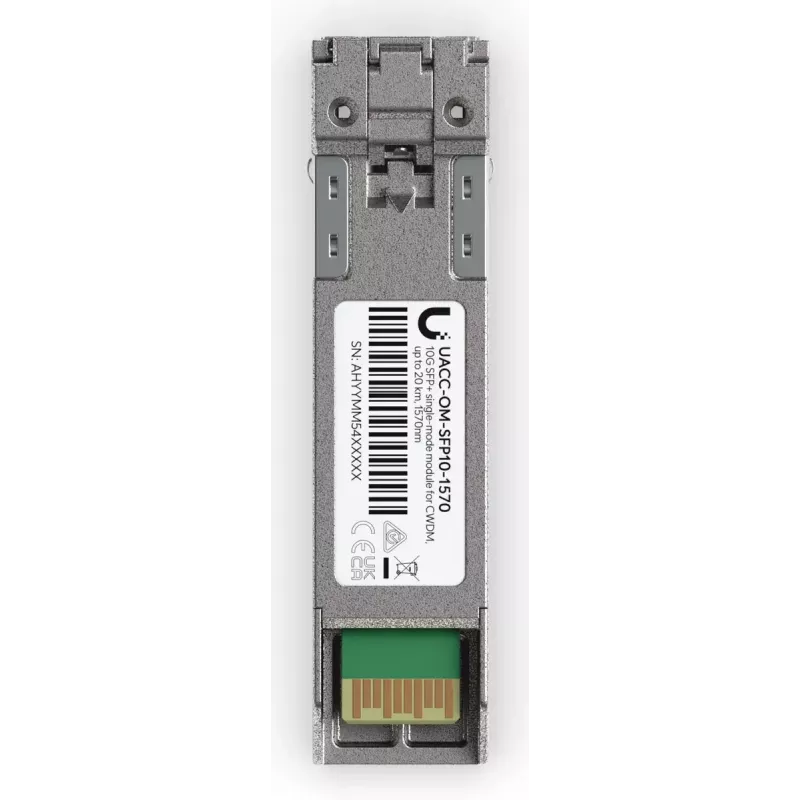

Ubiquiti UACC-OM-SFP10-1570 network transceiver module Fiber optic 11300 Mbit/s SFP+ 1570 nm

The Ubiquiti UACC-OM-SFP10-1570 is an SFP+ CWDM fiber optic transceiver module designed for 10G links over single-mode fiber. It supports transmission at 1570 nm and enables connections up to 20 km using a duplex LC UPC connector, with a maximum data rate of 11,300 Mbit/s. The module is compatible with network equipment that accepts SFP+ form-factor transceivers and is intended for high-speed point-to-point optical links.

Advantages

This SFP+ transceiver offers CWDM wavelength operation at 1570 nm, compact SFP+ form factor for broad compatibility, and support for 10G data rates up to 11,300 Mbit/s. Its duplex LC UPC connector and single-mode fiber support enable reliable long-distance links up to 20 km. The module’s industry-standard interface simplifies integration into existing switch and router ports that accept SFP+ optical modules.

Suitable for

• 10G point-to-point links over single-mode fiber
• Data center uplinks and inter-rack connections
• Campus or enterprise backbone connections up to 20 km
• Equipment that accepts SFP+ CWDM optical modules

Key specifications

• Form factor: SFP+
• Wavelength: 1570 nm (CWDM)
• Maximum data rate: 11,300 Mbit/s
• Maximum reach: up to 20 km on single-mode fiber
• Connector: duplex LC UPC
• Brand / MPN: Ubiquiti / UACC-OM-SFP10-1570
• EAN: 810084694794

How to use

Insert the SFP+ module into a compatible SFP+ port on a switch, router or optical transceiver cage until it latches. Connect single-mode duplex LC UPC fiber patch cords to the transmit and receive ports, observing correct polarity. Configure the network device ports as required for 10G operation and verify link status through the device management interface. Use appropriate fiber cleaning and handling procedures to avoid connector contamination.

Recommendations

Use quality single-mode fiber and LC UPC patch cords rated for CWDM wavelengths, maintain proper connector cleanliness, and verify compatibility with your network equipment vendor’s supported transceiver list to ensure stable 10G links up to 20 km.
