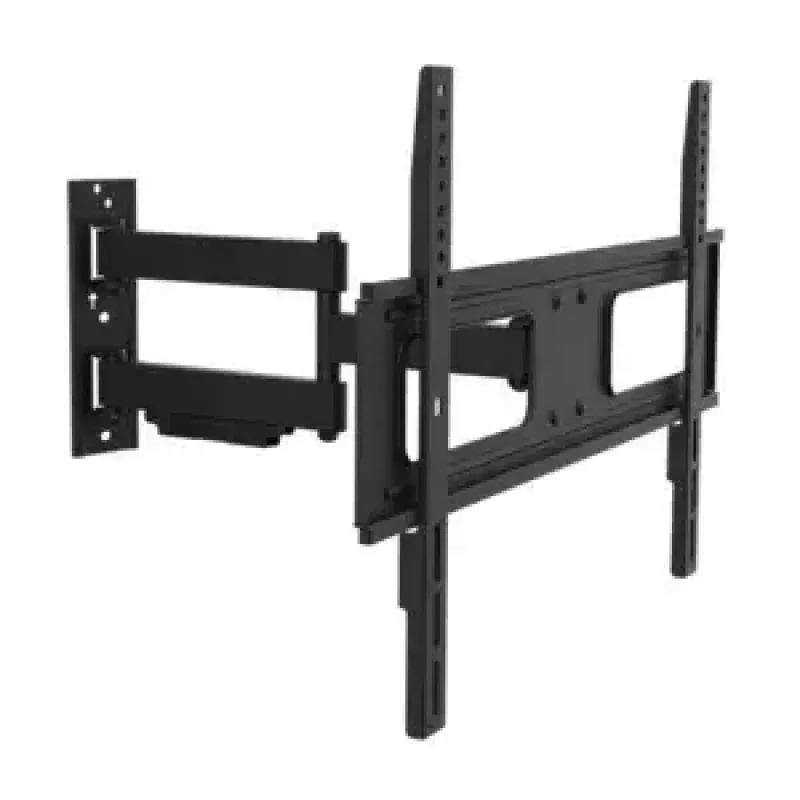

TV mount LogiLink BP0019 177.8 cm (70 inch) Black

The LogiLink BP0019 TV mount supports displays from 94 cm (37") up to 177.8 cm (70") and holds a maximum weight of 50 kg. It is compatible with VESA patterns from 200 x 200 mm to 400 x 400 mm and provides an adjustable distance from the wall between 6.2 cm and 47.3 cm. The mount offers limited height adjustment and a tilt range to help achieve an ergonomic viewing position in offices or home setups.

Advantages

Fully movable screen mounts allow pan and tilt adjustments so you can aim the monitor to the preferred viewing angle. The bracket accommodates a broad range of screen sizes and VESA standards, and its load capacity up to 50 kg supports most large TVs. The extendable arm range from the wall gives flexibility for different installation depths and room layouts.

Suitable for

• Office meeting rooms and workstations
• Living rooms and home entertainment setups
• Retail displays and public information screens

Key specifications

• Supported screen size: 94 cm (37") to 177.8 cm (70")
• Maximum weight capacity: 50 kg
• VESA compatibility: 200 x 200 mm, 300 x 300 mm, 400 x 400 mm
• Height adjustment: -3 to 3 mm
• Tilt range: -20° to 10°
• Wall distance: 6.2 cm to 47.3 cm
• Colour: Black

How to use

Attach the mount to a solid wall using appropriate fixings for your wall type, following the manufacturer's mounting holes and VESA pattern. Fasten the TV to the bracket using the matching VESA screws and ensure the total weight does not exceed 50 kg. Use the tilt and pan adjustments to set the screen angle; fine-tune the small height adjustment if needed to align the display with eye level.

Recommendations

Use suitable wall anchors for masonry or stud fixings for drywall, verify that the mounting surface can support the combined weight, and tighten all fasteners securely. For large screens or installations above head height, consider professional installation.
