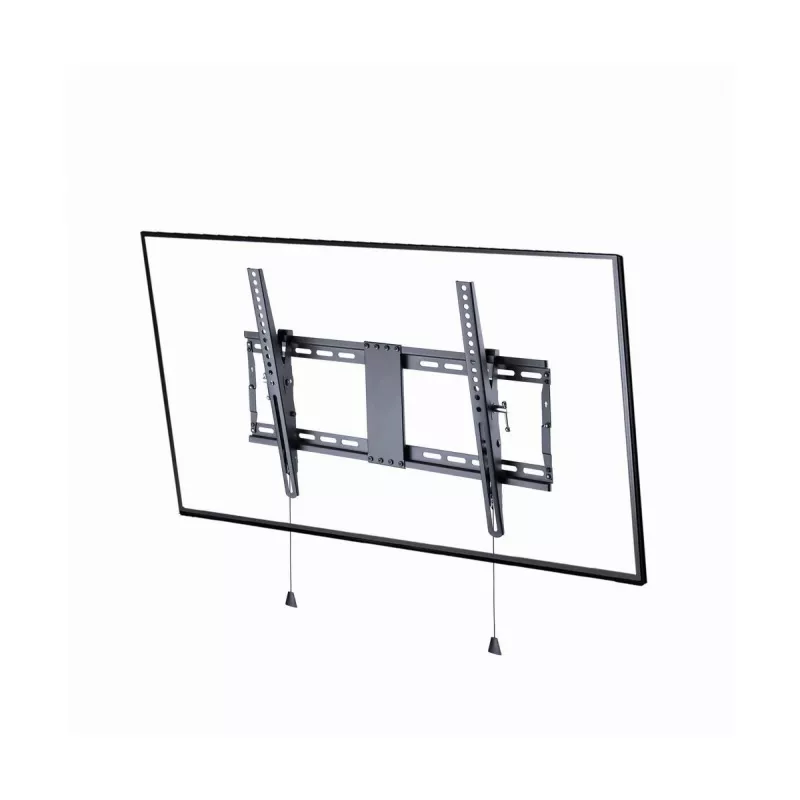

Wall TV mount GEMBIRD WM-80T-01 for 37–80 inch screens, steel, tilt -12°/+3°, VESA 200x200–600x400, 70 kg

The Gembird WM-80T-01 is a tilt TV wall mount designed for flat-panel televisions from 37 to 80 inches. Constructed from steel with a black finish, it supports screens up to 70 kg and fits VESA patterns from 200 x 200 mm to 600 x 400 mm. The mount provides a tilt adjustment between -12° and 3° to help position the screen for optimal viewing.

Advantages

The mount combines a lightweight design with a robust steel construction, offering reliable support for large TVs while keeping installation weight low. Its wide VESA compatibility and significant load capacity make it suitable for a variety of TV models. The tilting mechanism allows for minor angle corrections to reduce glare and improve viewing ergonomics.

Suitable for

• Mounting 37"–80" flat-panel TVs
• Installations requiring VESA 200 x 200 mm up to 600 x 400 mm
• Rooms where a small tilt adjustment (-12° to 3°) improves viewing
• Wall-mounted setups that need support up to 70 kg

Key specifications

• Maximum screen size: 80"
• Maximum VESA mount: 600 x 400 mm
• Tilt range: -12° to 3°
• Maximum weight capacity: 70 kg
• Product weight: 2.25 kg
• Colour: Steel / Black

How to use

Measure the TV's VESA pattern and ensure it falls within the supported range (200 x 200 mm to 600 x 400 mm). Secure the wall plate to a suitable load-bearing wall using appropriate anchors and bolts (not included). Attach the mounting arms to the TV using the correct screws for your TV's VESA holes, hang the TV on the wall plate, then adjust the tilt between -12° and 3° to the desired angle. Verify all fasteners are tightened and that the TV is level before use.

Recommendations

Use suitable wall anchors for your wall type and ensure the wall structure can support up to 70 kg. If unsure, consult a professional installer. Periodically check mounting bolts and connections for tightness.
