TV mount Hagor 8428 50 inch Black LCD LED 4K

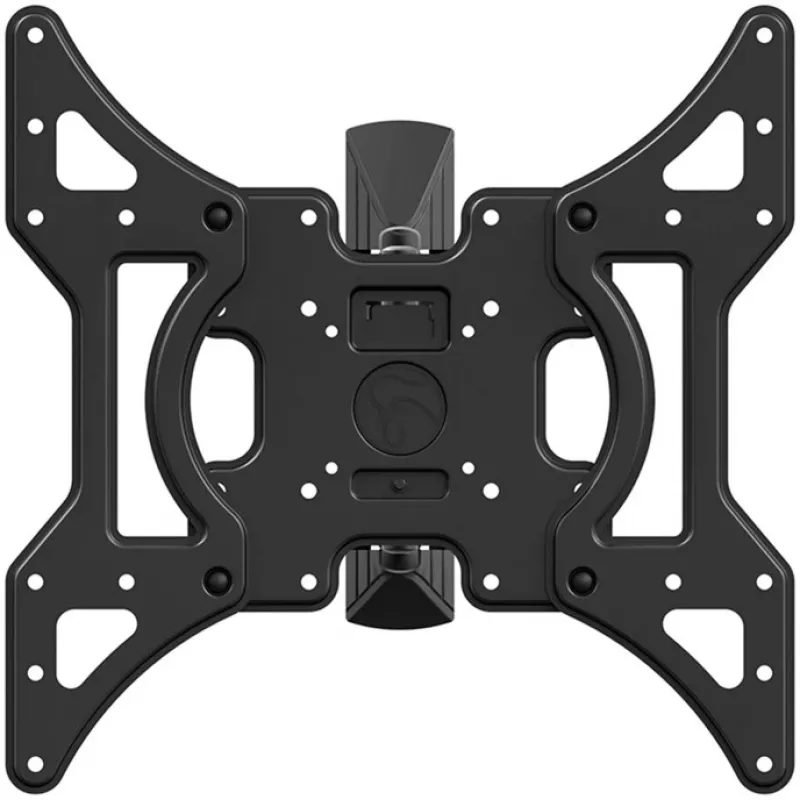

The Hagor 8428 (BrackIT M) is a full-motion wall mount designed for flat screens from 43" to 50" (109–127 cm) with a maximum load of 30 kg. It supports VESA patterns from 100 x 100 mm up to 400 x 400 mm and allows installation in either landscape or portrait orientation. The mount is finished in a solvent-free, impact- and scratch-resistant black powder coating and includes a cable clip to secure wiring.

Advantages

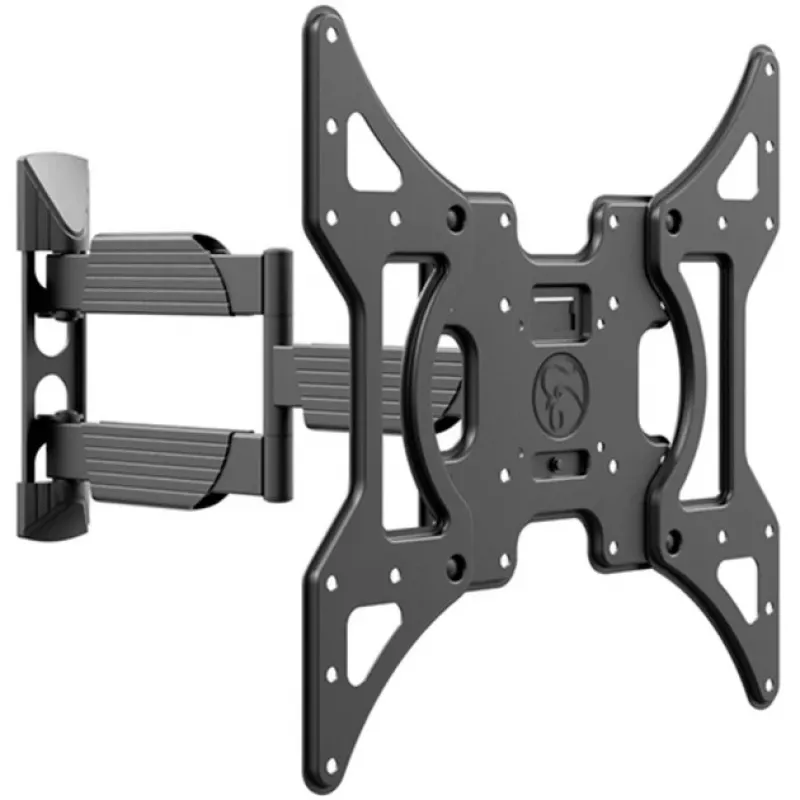

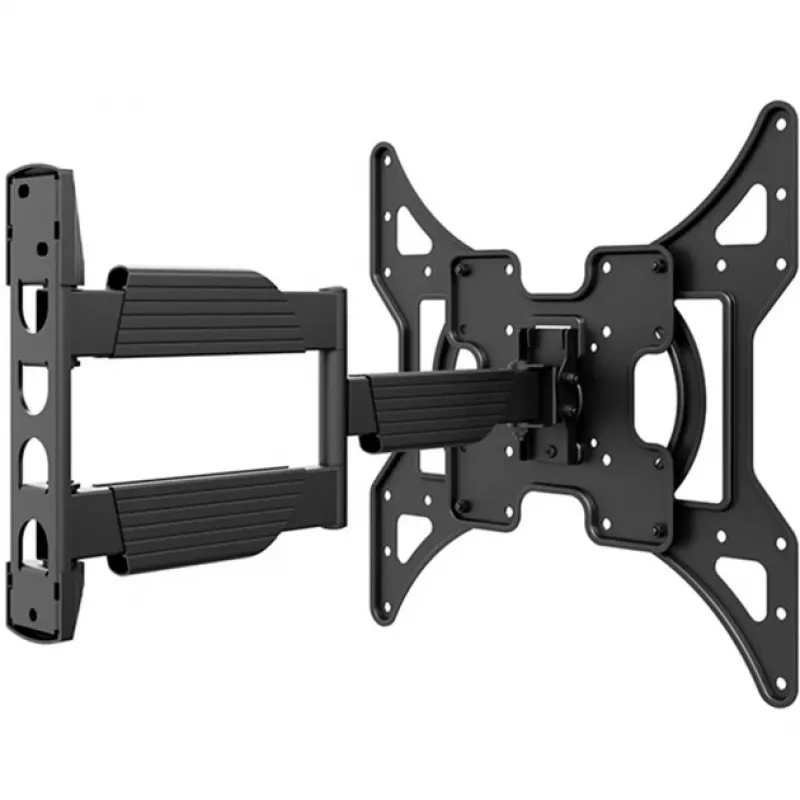

The full-motion arm provides a wide range of positioning: tilt adjustment between -5° and +12° during installation, swivel up to ±90° (depending on screen width), and a variable wall distance from 71 mm to 491 mm thanks to the swivel joint. Compatibility with common VESA standards and a 30 kg load capacity make it suitable for most 43–50" TVs. The durable powder-coated surface resists impacts and scratches.

Suitable for

• Mounting 43–50" LED/LCD screens
• Home living rooms and bedrooms
• Offices and meeting rooms
• Spaces requiring adjustable viewing angles and space-saving installation

Key specifications

• Supported screen size: 43"–50" (109–127 cm)
• VESA compatibility: 100 x 100 mm up to 400 x 400 mm
• Maximum load capacity: 30 kg
• Tilt adjustment: -5° to +12°
• Swivel range: ±90° (depending on screen width)

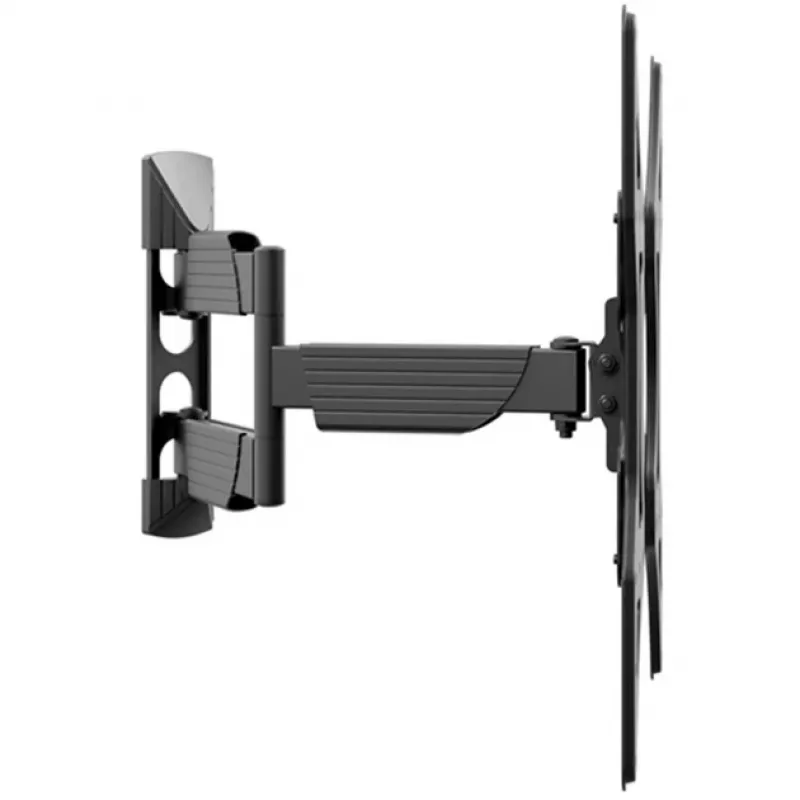

• Wall distance: 71 mm – 491 mm
• Colour: Black
• Model/MPN: Hagor 8428

How to use

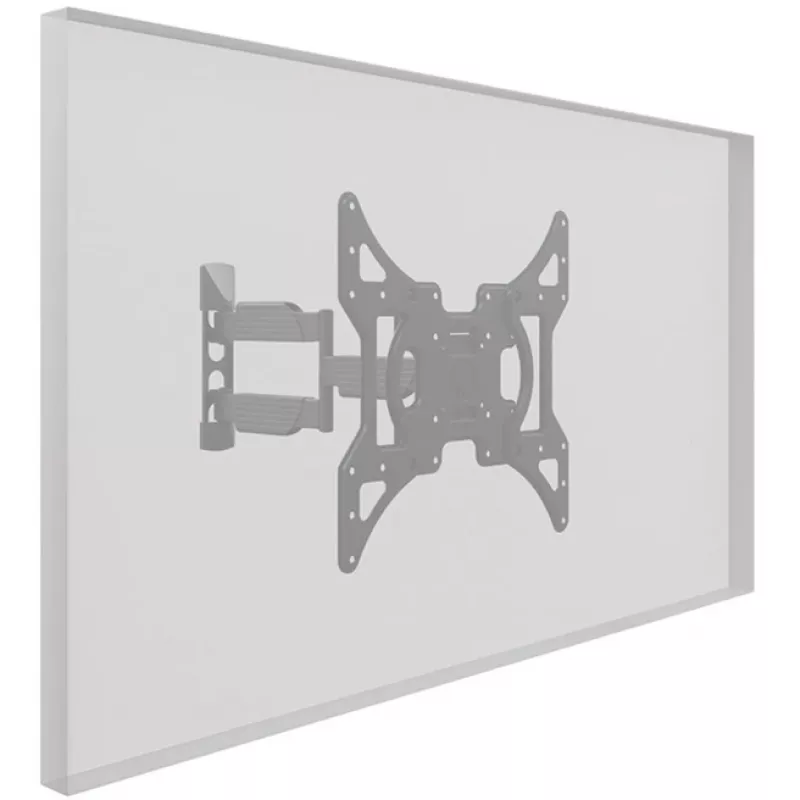

Attach the bracket to a suitable load-bearing wall using appropriate fixings for your wall type (not included). Fasten the VESA plate to the TV according to the screen's VESA holes, then hang the screen on the wall plate and secure it. Adjust tilt and swivel to the desired viewing angle; set the extension distance between 71 mm and 491 mm as needed. Use the included cable clip to route and secure cables.

Recommendations

Verify that the wall and fixings can support the combined weight of the mount and TV (max 30 kg). Measure and confirm the TV's VESA pattern before installation. If unsure about wall type or load-bearing capacity, consult a qualified fitter or installer.
