Wall Mount TV Bracket Hagor WH 85 T-HD 2.79 m (110 inch) Black

WH 85 T – HD is a heavy-duty tiltable wall mount for flat screens from 55" to 110" (140–279 cm). It supports both landscape and portrait orientations and accepts VESA patterns from 100 x 100 mm up to 800 x 600 mm, plus the additional 125 hole pattern for optional integration with HAGOR stand or ceiling systems. The bracket is powder-coated black, impact- and scratch-resistant, and keeps screens close to the wall with a distance of only 65 mm. An integrated bubble level simplifies alignment, and the mount includes height compensation up to 10 mm and a tilt range from -10° to +10°. A supplied padlock allows the bracket to be secured against theft.

Advantages

The WH 85 T – HD offers a high load capacity of up to 125 kg, making it suited for very heavy screens. Its compact wall clearance (65 mm) saves space while the durable powder-coated finish resists impacts and scratches. Flexible mounting options (100 x 100 mm to 800 x 600 mm plus 125 hole pattern) and built-in leveling and height compensation features make installation precise and adaptable. The tilt function provides ergonomic viewing adjustment and the lockable design increases security.

Suitable for

• Large flat screens from 55" to 110" (digital signage, conference room displays)
• Heavy screens up to 125 kg
• Portrait or landscape installations
• Integration with HAGOR stand or ceiling systems using the 125 hole pattern

Key specifications

• Screen size compatibility: 55"–110" (140–279 cm)
• Maximum load: 125 kg

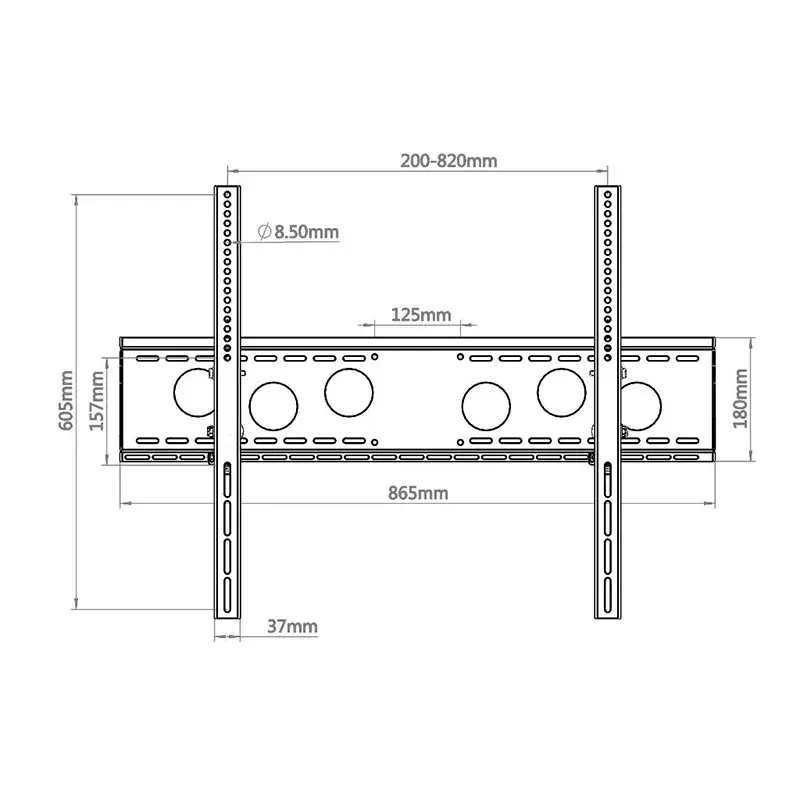

• VESA compatibility: 100 x 100 mm up to 800 x 600 mm; additional 125 hole pattern
• Tilt range: -10° to +10°
• Wall distance: 65 mm
• Finish: Black, powder-coated, impact and scratch resistant
• Height compensation: up to 10 mm
• Includes integrated bubble level and padlock

How to use

Mount the wall plate to a suitable load-bearing surface following the VESA pattern that matches your screen. Use the integrated bubble level to align the plate, then attach the display to the bracket using the appropriate VESA holes. Adjust the height using the built-in compensation (up to 10 mm) and set the desired tilt between -10° and +10°. Finally, secure the bracket with the supplied padlock if anti-theft protection is required.

Recommendations

For safe installation, fix the mount to a load-bearing wall or construction element and use appropriate screws and anchors for the wall material. Confirm that the screen weight does not exceed 125 kg and that the screen’s VESA pattern is within the supported range. For portrait installations or integration with HAGOR stand/ceiling systems, use the 125 hole pattern as required.
