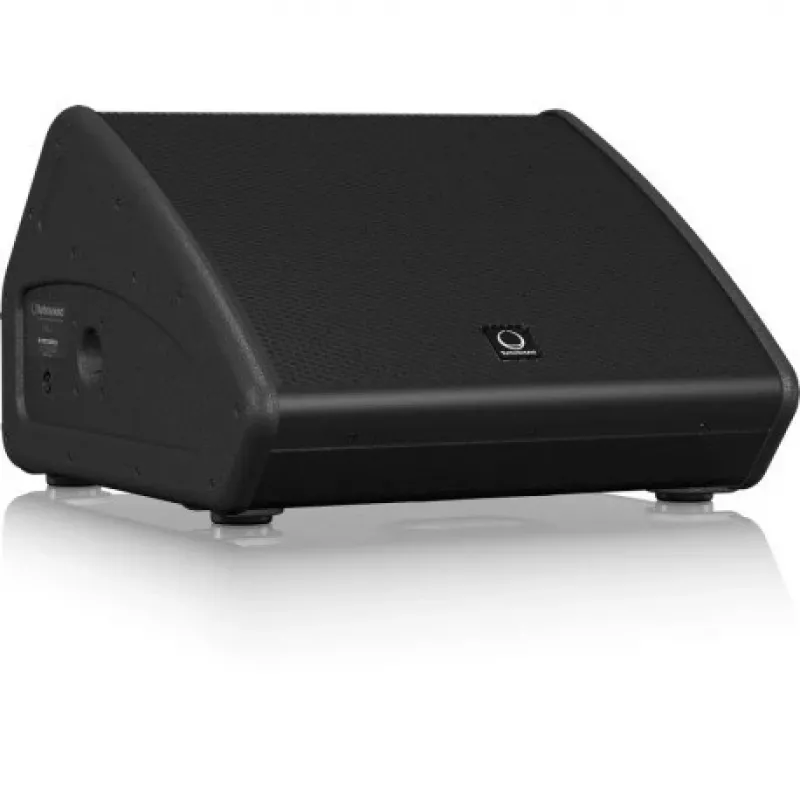

Turbosound TFM-122M Passive Stage Monitor 12 inch

The Turbosound TFM-122M is a high-performance passive stage monitor designed for professional live sound applications. Featuring a 12" low-frequency driver and a 1" compression driver, this 2-way monitor delivers exceptional clarity and power, making it ideal for monitoring on stage.

Advantages

With a peak power handling of 1200W and a maximum SPL of 126 dB, the TFM-122M provides ample headroom for demanding performances. The rotatable 60° x 40° dispersion horn allows flexible positioning, while the dual-angle pole mount socket and integrated handles ensure easy setup and transport.

Suitable for

• Live sound stage monitoring
• Concert venues and clubs
• Portable PA systems

Key specifications

• Speaker Type: Passive Stage Monitor
• Configuration: 2-Way
• Low Frequency Driver: 12" (305 mm)
• High Frequency Driver: 1" (25 mm) Compression Driver with 1.4" Voice Coil
• Frequency Response (-10 dB): 55 Hz - 20 kHz
• Frequency Response (±3 dB): 65 Hz - 18 kHz
• Power Handling (Continuous): 300 W
• Power Handling (Program): 600 W
• Power Handling (Peak): 1200 W
• Nominal Impedance: 8 Ohms
• Sensitivity (1W/1m): 95 dB
• Maximum SPL (Peak): 126 dB
• Dispersion (H x V): 60° x 40° (Rotatable)
• Crossover Type: Passive
• Connectors: 2 x Neutrik speakON NL4
• Enclosure Material: 15 mm (5/8") Birch Plywood
• Finish: Semi-matte Black Paint
• Grille: Powder-coated Perforated Steel Mesh
• Mounting Options: Dual-angle Pole Mount Socket, Integrated Handles
• Monitor Angle: 35° from Vertical

Recommendations

For optimal performance, pair the TFM-122M with a compatible amplifier rated for 8 Ohms and sufficient power. Ensure proper cable connections using Neutrik speakON connectors.
