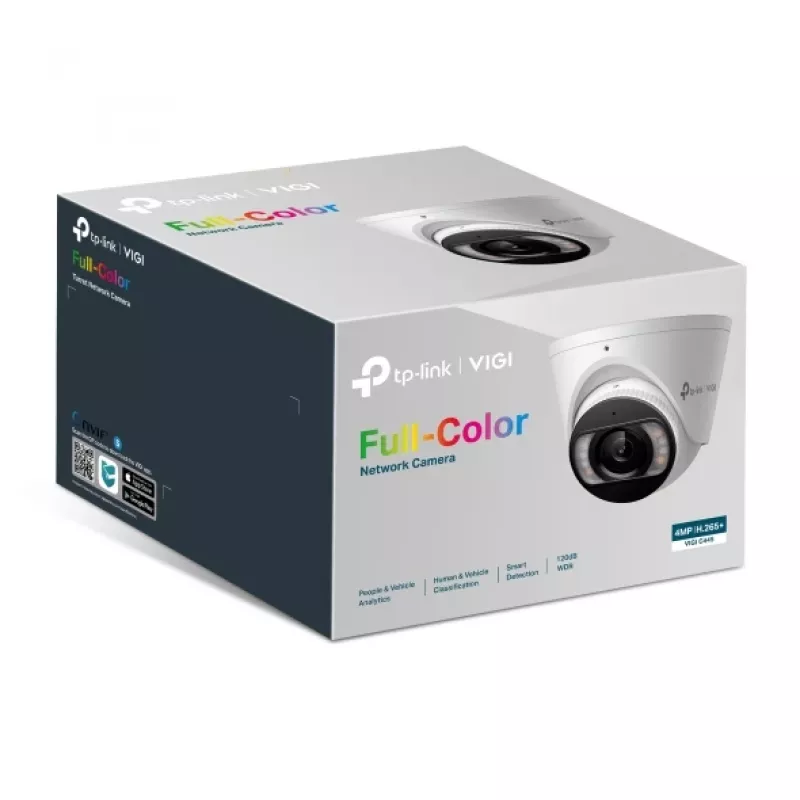

TP-Link VIGI C445 Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

The TP-Link VIGI C445 2688 x 1520 pixels is an IP security camera suitable for indoor and outdoor surveillance. It delivers 2688 x 1520 resolution video with a CMOS sensor and supports wired Ethernet connectivity. The turret-style housing allows ceiling or wall mounting and the camera operates at up to 60 fps to capture smooth motion. With an 80.4° horizontal and 41.8° vertical field of view and a detection distance stated up to 80 meters, the unit is designed to monitor larger areas while maintaining image clarity in low-light conditions down to 0.005 lx.

Advantages

The camera combines a high-resolution 2688 x 1520 image sensor and a high frame rate for clear, detailed video suitable for security monitoring. Turret form factor and dual ceiling/wall mounting make installation flexible for different environments. Wired Ethernet connectivity ensures stable network performance and continuous power when used with compatible power-over-Ethernet solutions. The device is compact and lightweight, with a white finish that blends with most interiors and exteriors.

Suitable for

• Perimeter monitoring of buildings and parking areas
• Indoor surveillance of corridors, lobbies and retail spaces
• Outdoor monitoring of entry points and yards
• Areas requiring low-light performance and long-range detection

Key specifications

• Image resolution: 2688 x 1520 pixels
• Sensor type: CMOS
• Frame rate: up to 60 fps
• Field of view: 80.4° horizontal, 41.8° vertical
• Minimum illumination: 0.005 lux
• Detection distance: up to 80 meters
• Mounting type: ceiling or wall
• Connectivity: wired Ethernet
• Placement: suitable for indoor and outdoor use
• Color: white
• Weight: 0.48 kg

How to use

Mount the TP-Link VIGI C445 on a ceiling or wall using appropriate hardware for the installation surface and ensure the camera is aimed to cover the intended area within its field of view. Connect the camera to a wired Ethernet network for video transmission and power if using PoE-compatible equipment. Configure the camera through TP-Link’s VIGI management software or a compatible network video recorder to set resolution, frame rate, motion detection sensitivity and storage options. Verify image orientation and focus after installation and perform a test recording to confirm coverage and low-light performance.

Recommendations

For reliable operation, install the camera where it is protected from direct physical impact and extreme weather; when used outdoors, ensure appropriate sealing and a stable network connection. Use a PoE switch or injector for a simplified single-cable installation and configure retention and backup settings on your recording system to meet your storage and review needs.
