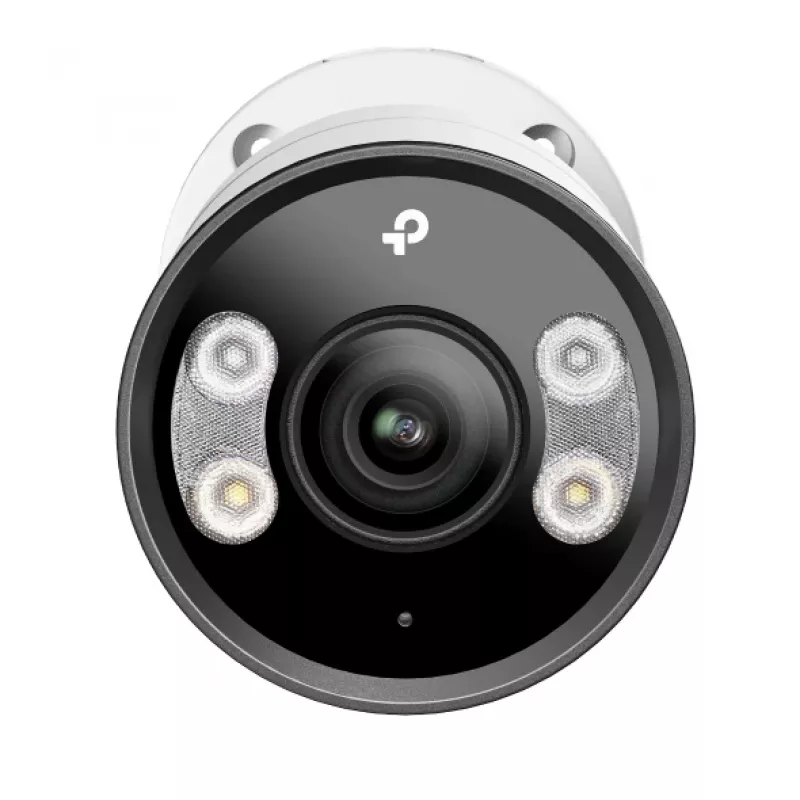

TP-Link VIGI C345 Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

The TP-Link VIGI C345 Bullet IP security camera provides 2688 x 1520 resolution for clear outdoor surveillance and low-light performance down to 0.005 lx. Built for wired outdoor installations with wall mounting, this white bullet camera offers a 360° rotation capability and a 100° horizontal field of view. Its CMOS sensor (optical size 25.4 / 2.7 mm) supports detection distances up to 64 m, observation up to 27 m and recognition up to 13 m, making it suitable for perimeter and property monitoring.

Advantages

The camera separates people and vehicles from other objects with Human & Vehicle Classification to reduce false alarms and provide more accurate alerts. People & Vehicle Analytics enables faster post-event searches by filtering results by various attributes. Efficient H.265+ compression lowers bandwidth and storage requirements while maintaining image quality, saving more storage compared to H.264 and H.265.

Suitable for

• Outdoor property and perimeter surveillance
• Entrance and driveway monitoring
• Parking lots and vehicle access control
• Areas requiring long-distance detection and recognition

Key specifications

• Resolution: 2688 x 1520 pixels
• Minimum illumination: 0.005 lx
• Lens / variant: 2.8 mm (MPN: VIGI C345(2.8mm))
• Field of view: 100° horizontal; 360° rotation capability
• Detection / observation / recognition: up to 64 m / 27 m / 13 m
• Sensor type: CMOS; optical size 25.4 / 2.7 mm
• Frame rate: 30 fps
• Connectivity: wired Ethernet; no Wi‑Fi
• Mounting type: wall
• Placement: outdoor
• Video compression: H.265+ (improved storage efficiency)
• Color: white; weight: 0.525 kg

How to use

Mount the VIGI C345 on an exterior wall at the desired height and angle using appropriate fixtures for outdoor cameras. Connect the camera to your network via Ethernet for power and data (PoE if supported by your setup) and configure the device in the TP-Link VIGI management software or compatible NVR to set resolution, frame rate and analytics rules. Use People & Vehicle Analytics settings to enable classification, adjust sensitivity and create filters for post-event searches.

Recommendations

Install the camera above eye level and avoid direct bright light sources in the field of view. For best results with analytics and recognition distances, set the camera at a clear unobstructed position and verify settings in the management interface after installation. Use H.265+ compression to reduce storage needs while keeping image quality.
