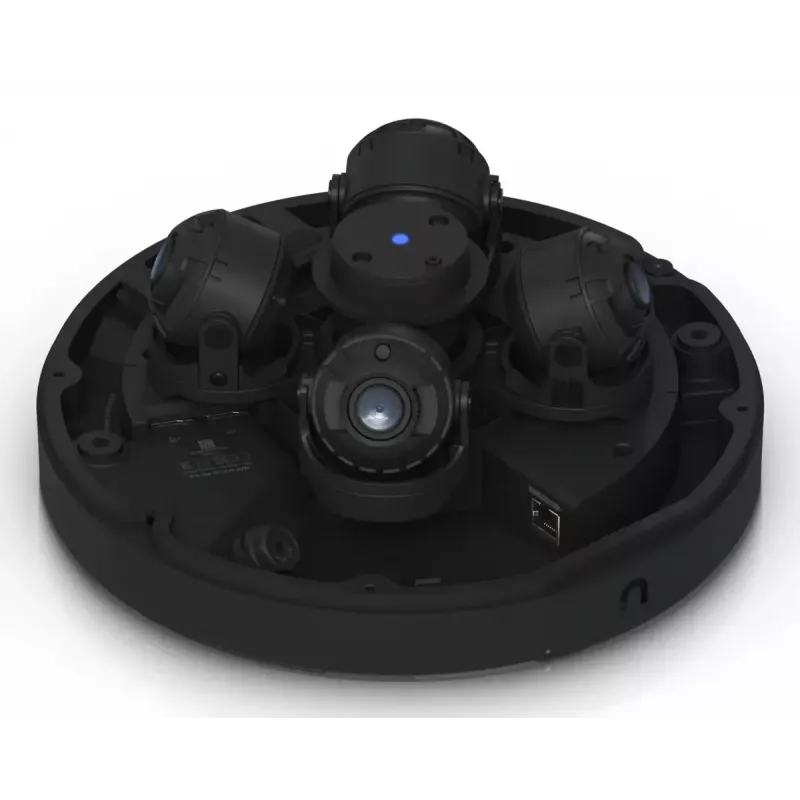

IP security camera UBIQUITI AI Multi Sensor 4 — Dome, Ceiling mount, 3840×2160, 360° FOV, Wired, Black

UBIQUITI AI Multi Sensor 4 is a wired dome IP security camera designed for ceiling installation for both indoor and outdoor environments. It captures up to 3840×2160 resolution across a full 360° field of view using four independently adjustable lenses and CMOS sensors with an effective 8 megapixels per sensor. The unit supports 2.33× optical zoom and dual horizontal/vertical viewing angles to combine wide-area coverage with detailed close-up inspection. Built for continuous surveillance, the camera integrates Multi-TOPS AI processing for intelligent event detection and is housed in a weatherproof, tamper-resistant dome enclosure suitable for commercial and residential sites.

Advantages

The camera delivers seamless panoramic monitoring with four synchronized sensors that produce a continuous 360° image, reducing blind spots and simplifying placement planning. Optical zoom and high-resolution 3840×2160 capture allow both overview surveillance and readable close-ups without frequent repositioning. The PoE++ wired design provides reliable power and network connectivity over a single cable, while IP66 and IK10 ratings ensure resistance to dust, water and mechanical impact for outdoor use. Integrated AI processing improves detection accuracy and reduces false alerts by analyzing scenes at the edge.

Suitable for

• Large indoor spaces such as lobbies, warehouses and retail floors
• Outdoor perimeters, parking areas and building exteriors
• Commercial surveillance where continuous 360° coverage is required
• Residential properties requiring robust dome ceiling monitoring

Key specifications

• Maximum resolution: 3840 × 2160 (4K)
• Field of view: 360° panoramic coverage via four lenses
• Sensor type: CMOS, 1/2.8" format, effective 8 MP per sensor
• Optical zoom: 2.33×
• Horizontal/vertical viewing angles (per lens): approx. 108.8°/42.8° H, 57.6°/24.1° V
• Night vision: infrared illumination up to 20 m for low-light scenes
• Network: wired Ethernet (PoE++ support for power and data)
• Weather and impact protection: IP66 and IK10 rated enclosure
• Mounting: ceiling/dome installation, tamper-resistant design
• Color: black; Weight: approximately 2.4 kg

How to use

Install the UBIQUITI AI Multi Sensor 4 on a suitable ceiling surface using the included mounting hardware, ensuring the unit is positioned to provide unobstructed 360° coverage. Connect the camera to a PoE++ capable switch or injector via an Ethernet cable to supply both network connectivity and power. Configure the camera through the manufacturer's management interface to select resolution, framing and AI detection zones; adjust each lens orientation as needed to eliminate blind spots and optimize overlap between fields of view. Verify night vision and IR coverage in low-light conditions and calibrate detection sensitivity to reduce false positives.

Recommendations

For reliable long-term performance, use Cat6 or better cabling and a PoE++ power source that meets the camera's power requirements. Place the camera at a height that balances wide coverage with the needed detail for identification; typical ceiling mounting heights range depending on the site. Regularly clean the dome cover to maintain image clarity and periodically review AI detection logs to fine-tune sensitivity and zone settings for your environment.
