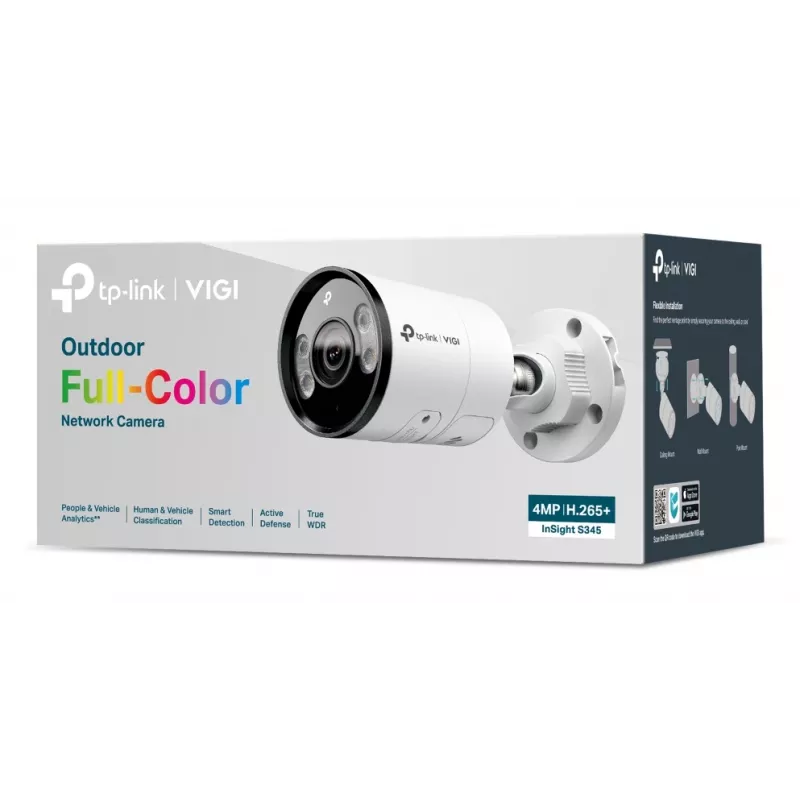

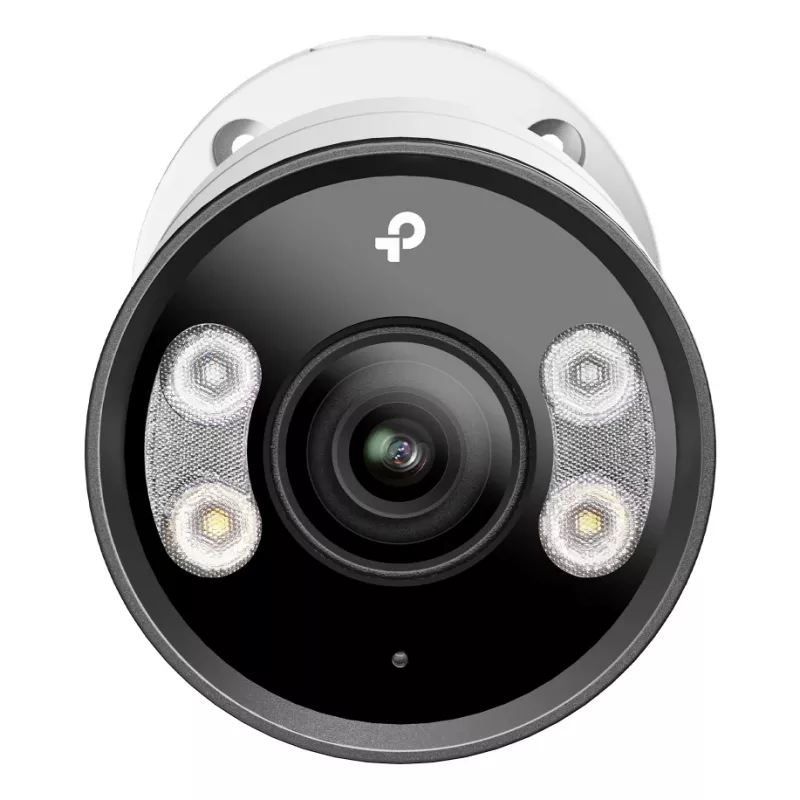

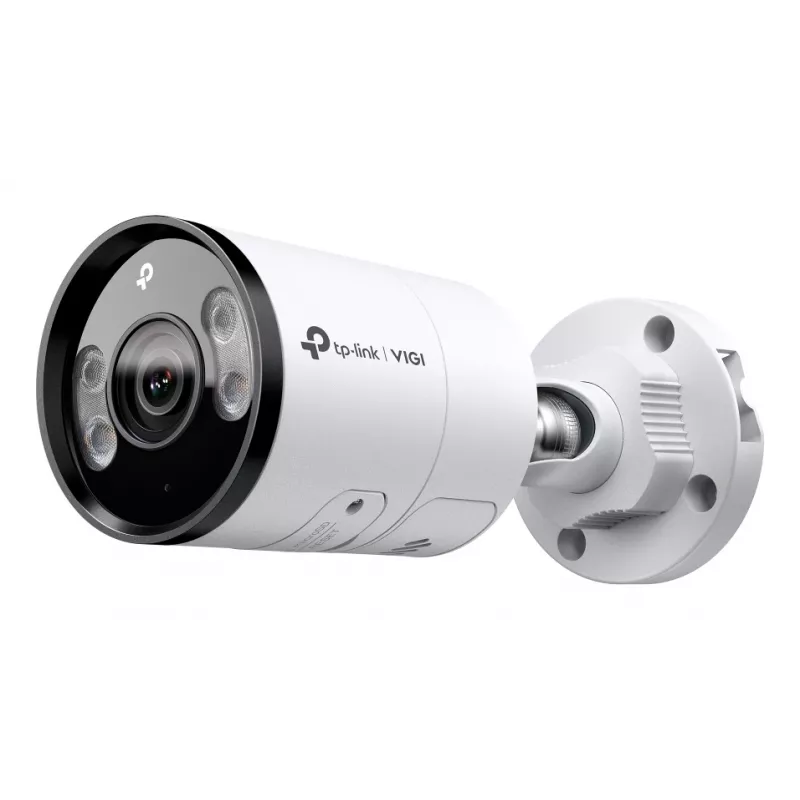

TP-Link INSIGHT S345 Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

The TP-Link INSIGHT S345 Bullet IP security camera provides 2688 x 1520 resolution for clear outdoor surveillance. Designed for wired wall-mounted installation, this white IP camera uses a CMOS sensor and a 60.8° diagonal field of view to monitor property perimeters. It supports long-range detection and recognition capabilities and advanced analytics for people and vehicle monitoring.

Advantages

People & Vehicle Analytics and Human & Vehicle Classification simplify post-event search and reduce false alarms by filtering events by object type and attributes. True WDR balances exposure in scenes with strong contrast, Smart IR adapts infrared illumination to avoid overexposure at various distances, and 3D DNR reduces noise across frames while preserving detail. H.265+ compression decreases bandwidth and storage needs compared with H.264 and H.265, improving storage efficiency.

Suitable for

• Outdoor perimeter surveillance of homes and small businesses
• Monitoring driveways, gates and parking areas for vehicles
• Areas requiring long-range detection and recognition

Key specifications

• Model: TP-Link INSIGHT S345 Bullet (InSight S345(6mm))
• Resolution: 2688 x 1520 pixels
• Placement: Outdoor, wall mount
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Sensor type: CMOS
• Field of view (diagonal): 60.8°
• Detection / observation / recognition ranges: detection up to 120 m, observe up to 50 m, recognize up to 24 m
• Video codec: H.265+ (improved storage efficiency vs H.264/H.265)
• Color: White; Weight: 0.525 kg

How to use

Mount the camera on an appropriate outdoor wall bracket at a location that provides the desired field of view and range. Connect the camera to a wired Ethernet network for power and data (ensure PoE if required by your installation). Configure the camera through the TP-Link management interface or compatible NVR to enable People & Vehicle Analytics, set motion detection zones, and adjust WDR, Smart IR and 3D DNR settings to suit the scene. Verify detection and recognition distances in the installation environment and adjust angle and height as needed.

Recommendations

Place the camera at a height and angle that maximizes the coverage for detection and recognition distances. Use True WDR and Smart IR in high-contrast or low-light environments, and enable H.265+ to reduce storage usage while retaining image quality.
