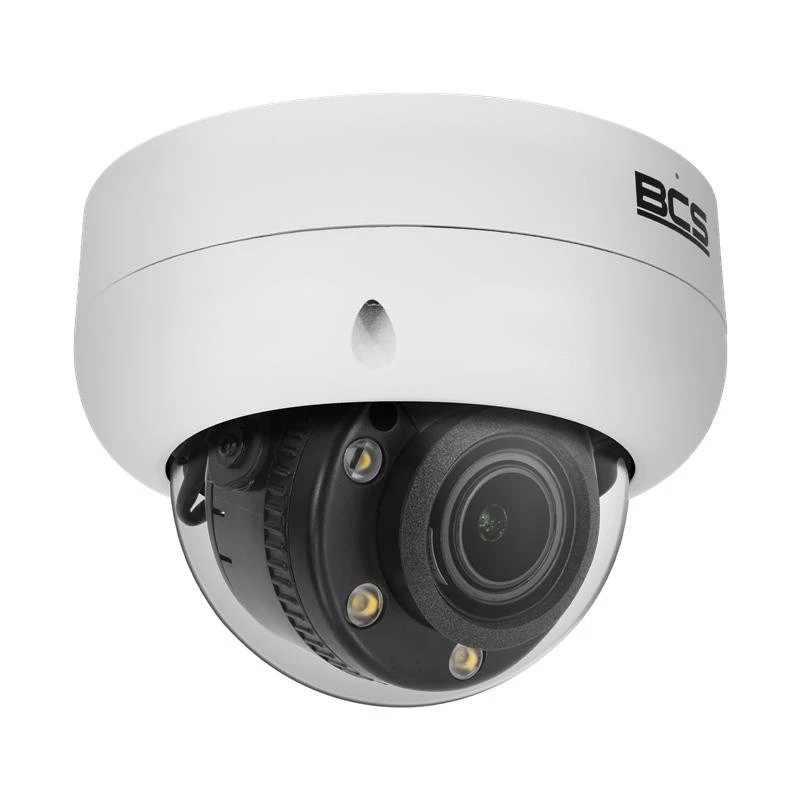

BCS-L-DIP56VCR5L5-Ai1 6MP IR Dome IP Camera with AI

The BCS-L-DIP56VCR5L5-Ai1 is a high-performance 6MP dome IP camera designed for professional surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 3072x2048 resolution at 20fps. Equipped with motorized vari-focal lens (2.7-13.5mm), Smart IR up to 50m, and advanced AI functions including Perimeter Protection, SMD Plus, and Face Detection, this camera ensures reliable security in demanding environments.

Advantages

True 6MP resolution with 120dB WDR for clear imaging in high-contrast scenes. AI-powered analytics reduce false alarms. IP67 and IK10 rating guarantee durability outdoors. Supports H.265+ compression to save bandwidth and storage.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Critical infrastructure requiring high detail and AI detection

Key specifications

• Sensor: 1/2.7" 6MP Progressive Scan CMOS
• Max Resolution: 3072x2048 (6MP)
• Lens: Motorized Vari-focal 2.7-13.5mm, H: 105°-33°, V: 70°-23°
• IR Range: Up to 50m (Smart IR)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Frame Rate: 20fps@6MP, 25/30fps@4MP
• Audio: Built-in mic, 1/1 audio I/O
• Alarm I/O: 1/1
• Local Storage: MicroSD up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Power: DC 12V / PoE (802.3af), Max 7.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• AI Functions: Perimeter Protection, SMD Plus, Face Detection
• WDR: 120dB True WDR
• Min Illumination: 0.005 [email protected] (Color), 0 Lux (IR on)
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera in a location where the lens can be adjusted to cover the desired area.
