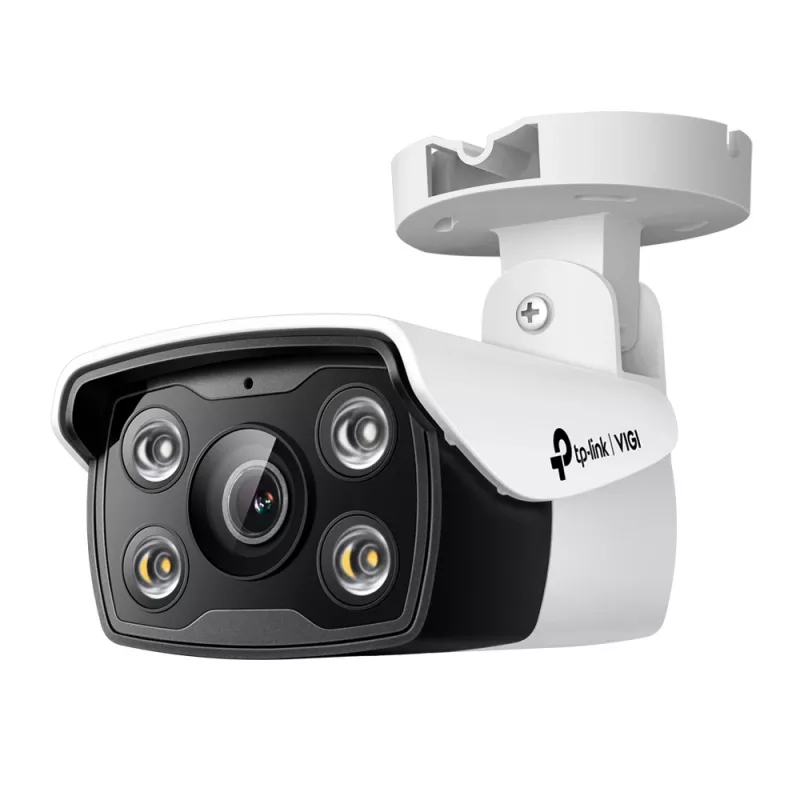

TP-Link VIGI C330(6MM) security camera Bullet IP security camera Outdoor 2304 x 1296 pixels Ceiling/Wall/Pole

The TP-Link VIGI C330 (6MM) is an outdoor bullet IP security camera with 3MP (2304 x 1296) resolution designed for continuous color monitoring day and night. Equipped with a large-aperture 6 mm lens, high-sensitivity CMOS sensor and built-in supplemental lights, the camera delivers clear, colorful images even in low light. It supports PoE wired connection for simplified installation and stable outdoor operation and can be mounted on ceilings, walls or poles.

Advantages

This VIGI camera provides full-color 24/7 monitoring, integrated AI for human and vehicle classification, and multiple smart detection types including line crossing, intrusion, obstruction and object removal/abandonment. Built-in microphone records audio within approximately 15 ft (4.5 m). Video enhancement features such as Smart IR, WDR and 3D DNR improve image clarity, while efficient video compression reduces bandwidth and storage use without sacrificing visible quality. Rugged, waterproof housings and PoE power/data over a single RJ45 cable simplify outdoor installation and wiring.

Suitable for

• Outdoor perimeter and entry monitoring for small businesses
• Parking lots and vehicle access points
• Storefronts, walkways and loading areas
• Locations requiring continuous color footage and audio

Key specifications

• Model: TP-Link VIGI C330 (6MM), MPN: VIGIC330(6MM)
• Image sensor: CMOS
• Resolution: 2304 x 1296 (3MP)
• Lens: 6 mm (fixed focal length indicated as 4 mm in product data)
• Field of view: Horizontal 55.1°, Vertical 30.2°, Diagonal 64°
• Connectivity: Wired Ethernet (PoE)
• Placement: Outdoor, white housing
• Mounting: Ceiling, wall or pole
• Audio: Built-in microphone (≈15 ft / 4.5 m range)
• Smart features: Human & vehicle classification, motion detection, line crossing, intrusion, tamper/object removal detection

How to use

Mount the camera on a suitable ceiling, wall or pole using the provided fixings, then connect it via an RJ45 cable to a PoE-enabled switch or injector to supply power and network simultaneously. Use the VIGI web UI, NVR UI, VIGI app or VIGI Security Manager to configure resolution, detection rules (human/vehicle classification, area/line alarms), audio recording and video enhancement settings. Position the camera to cover the desired scene within its field of view and adjust supplemental lighting or angle as needed for optimal color imaging.

Recommendations

Install the camera at a height and angle that minimize direct exposure to bright lights and reflective surfaces. Use PoE for stable outdoor power and network connectivity, and configure AI detection thresholds to reduce false alarms in busy environments. Regularly check firmware and the VIGI management interfaces to maintain detection accuracy and system security.
