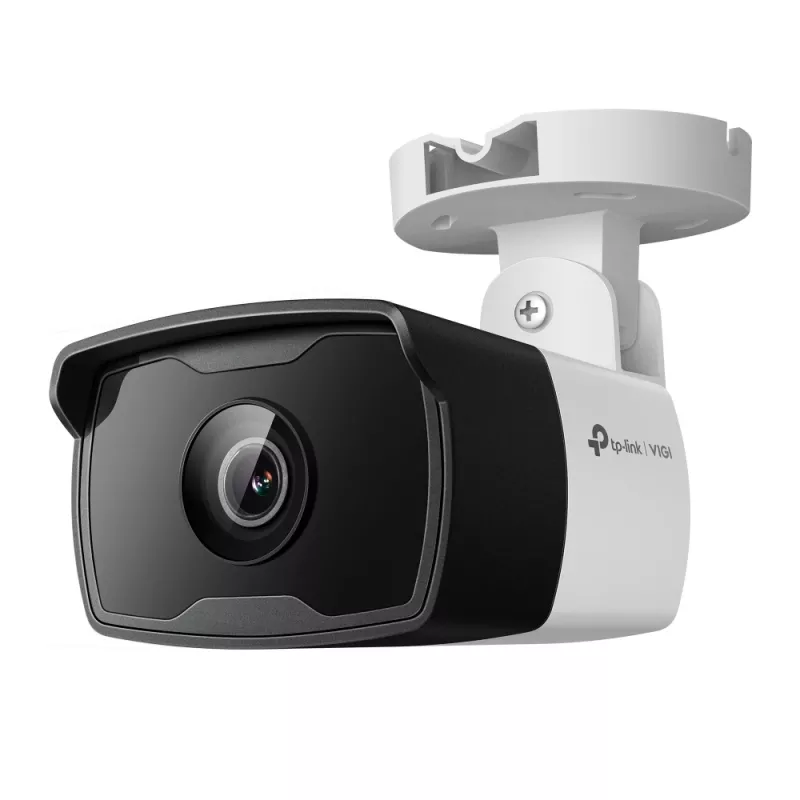

TP-Link VIGI C340I 6MM security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole

The TP-Link VIGI C340I 6mm is an outdoor bullet IP security camera offering 4MP (2560×1440) resolution at 30 fps, a 6 mm lens (approx. 47.7° horizontal) and a 1/3" CMOS sensor. Designed for wired installations, the camera supports PoE and 12V DC power, IP67 protection, and multiple mounting options (ceiling, wall, pole). It provides long-range detection up to 120 m, observation up to 50 m and recognition up to 24 m, with a minimum illumination of 0.01 lx and video motion detection for continuous business monitoring.

Advantages

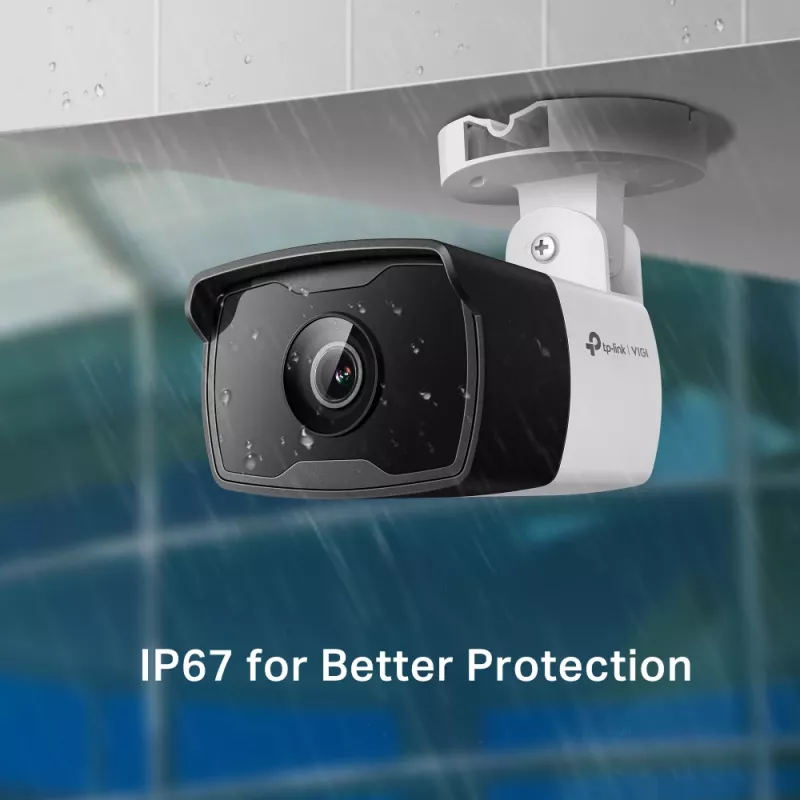

The camera delivers higher-resolution images to capture finer details while using advanced compression to save bandwidth and storage without degrading visible quality. Integrated AI chips enable human and vehicle classification to reduce false alarms and provide more accurate event notifications. Built-in SmartVid enhancements (Smart IR, WDR, 3D DNR, Night Vision) improve image clarity in challenging lighting. With IP67 rating and an operating range from -30 to 60 °C, the device is suitable for harsh outdoor environments. Multiple power and management options simplify installation and on-going control.

Suitable for

• Outdoor perimeter and parking-lot monitoring
• Business premises where long-range detection is required
• Sites needing human and vehicle classification to reduce false alerts
• Installations that require PoE or 12V DC wired power

Key specifications

• Model: TP-Link VIGI C340I (6mm)
• Resolution: 4MP (2560×1440) at 30 fps
• Lens: 6 mm (approx. 47.7° horizontal)
• Sensor: 1/3" CMOS; minimum illumination 0.01 lx
• Detection/Observation/Recognition: up to 120 m / 50 m / 24 m
• Power: PoE and 12V DC
• Protection: IP67; operating temperature -30 to 60 °C
• Connectivity: Wired Ethernet LAN (no Wi‑Fi)
• Features: AI human & vehicle classification, video motion detection, Smart IR, WDR, 3D DNR, Night Vision
• Mounting: Ceiling, wall, pole
• Colours: Black, White

How to use

Mount the camera on a ceiling, wall, or pole at the desired vantage point and connect it to your network via Ethernet. Power the unit with PoE from a compatible switch/NVR or use a 12V DC supply. Configure detection zones and alarm rules through the VIGI web UI, NVR UI, VIGI app, or VIGI Security Manager to match your monitoring needs. Adjust lens orientation and SmartVid settings (WDR, Smart IR, 3D DNR) for optimal image quality under local lighting conditions.

Recommendations

For reliable long-range detection, mount the camera at a height and angle that provides a clear line of sight to the monitored area and enable AI-based human/vehicle classification to reduce false alarms. Use PoE where possible to simplify wiring and centralize power management, and ensure the device is installed in accordance with IP67 sealing guidelines to maintain weather resistance.
