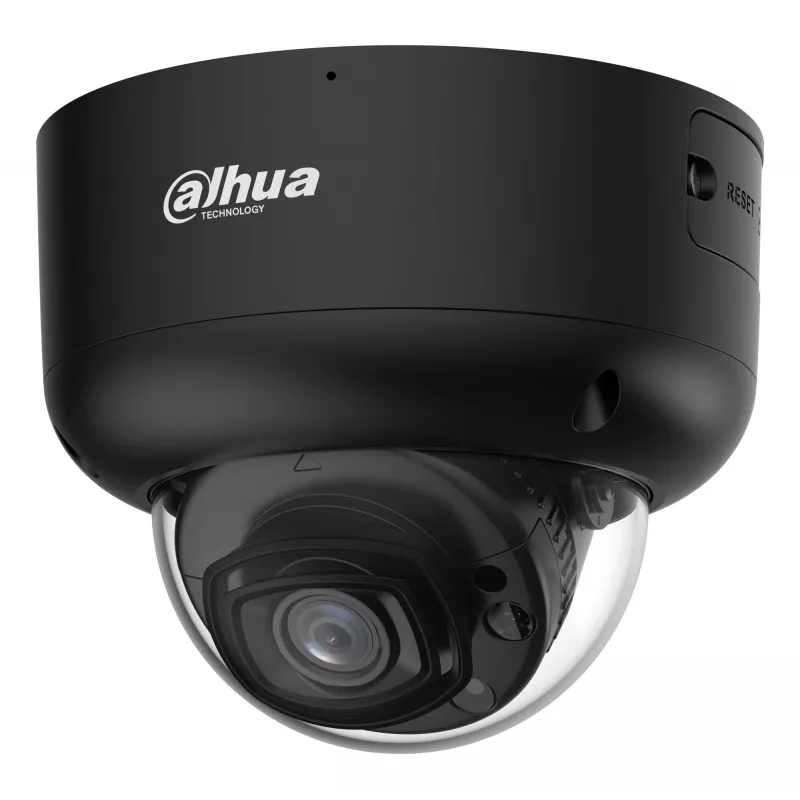

DAHUA IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK 6MP Dome Network Camera with 2.8mm Lens, WizMind AI, Black

The DAHUA IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK is a high-performance 6MP dome network camera from the WizMind series, designed for professional surveillance. Featuring a 1/2.7" progressive CMOS sensor, it delivers crisp 3072x2048 resolution at 20 fps. Equipped with a 2.8mm fixed lens (106° HFOV), built-in IR LEDs for up to 40m night vision, and advanced AI analytics including perimeter protection, face detection, SMD 4.0, and people counting, this camera ensures reliable security in demanding environments.

Advantages

With 120dB true WDR, IP67 weatherproofing, and IK10 vandal resistance, the camera performs flawlessly in harsh outdoor conditions. The built-in microphone and audio I/O enable two-way communication, while Micro SD slot (up to 256GB) provides local storage. Power via 12V DC or PoE (802.3af) simplifies installation.

Suitable for

• Perimeter surveillance for commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Critical infrastructure requiring AI-based intrusion detection
• Outdoor areas exposed to weather and vandalism

Key specifications

• Image Sensor: 1/2.7" 6MP progressive CMOS
• Max Resolution: 3072x2048 (6MP) at 20 fps
• Lens: 2.8mm fixed, F1.6, 106° HFOV
• IR Distance: 40m (131.2 ft)
• Video Compression: H.265/H.264/MJPEG
• Audio: Built-in mic, 1 input, 1 output
• Storage: Micro SD slot (max 256 GB)
• Network: RJ-45 10/100 Base-T
• Power: 12V DC or PoE (802.3af), max 8.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• WDR: 120 dB
• AI Features: Perimeter protection, face detection, SMD 4.0, people counting
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Series: WizMind

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the Micro SD card is high endurance for continuous recording. The camera is ideal for integration with Dahua NVRs and VMS platforms.
