TP-Link Omada Fusion 2.5G PoE Gateway and Controller, 9 Ports, 110 W PoE+

TP-Link Omada Fusion 2.5G PoE combines a wired network gateway and an Omada controller in one desktop device. It has nine 2.5 Gbit/s RJ45 ports: one dedicated WAN port and eight configurable WAN/LAN ports. Up to eight WAN connections can operate simultaneously with load balancing and automatic failover. Eight ports provide PoE+ power with a shared 110 W budget.

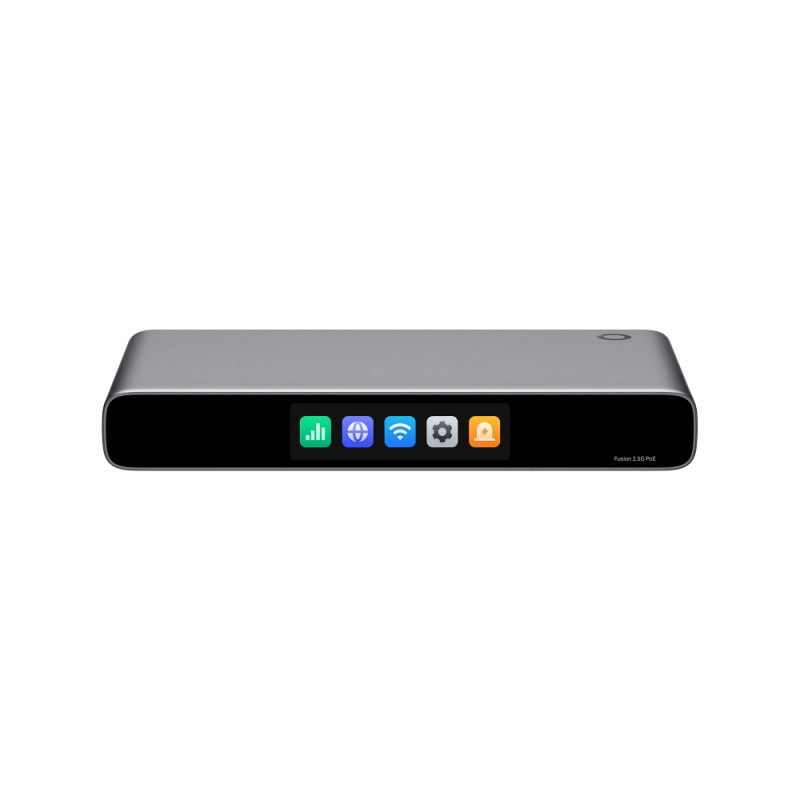

The built-in controller supports cloud, local and Omada app management without an additional management licence. The manufacturer recommends this model for up to 30 managed Omada devices and 300 connected clients. Bluetooth assists initial setup; it does not provide a Wi-Fi network for clients. A 3.69-inch colour touchscreen provides local status and diagnostic functions.

Network functions include IDS/IPS, application-based access control, content filtering, QoS and full-mesh SD-WAN. Supported VPN options include Omada LightLink, WireGuard, IPsec, OpenVPN, SSL, L2TP and PPTP. The device has 2 GB DDR4 memory and uses the specified 54 V DC, 2.43 A power adapter.

The polycarbonate enclosure measures 226 × 135 × 31.5 mm and weighs 728 g net. Desktop placement needs no mounting kit; wall mounting requires the separately sold magnetic plate, and rack mounting requires a separate kit. This is the Fusion 2.5G PoE model with an integrated network controller.
