TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
R1,641
TP-Link Omada DS105GP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable TP-Link Omada DS105GP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: ... Read More
Stock Out Of StockNo Stock Code 2402133 Brand TP-LINK Model DS105GP Warranty 2 Years

Shipping & Returns

TP-Link Omada DS105GP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable

TP-Link Omada DS105GP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Key Highlights
  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for all PoE ports
  • Up to 250m (820ft) data and power transmitting range under Extend Mode
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play. No configuration or central management required
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 2000 entries Switching capacity: 10 Gbit/s

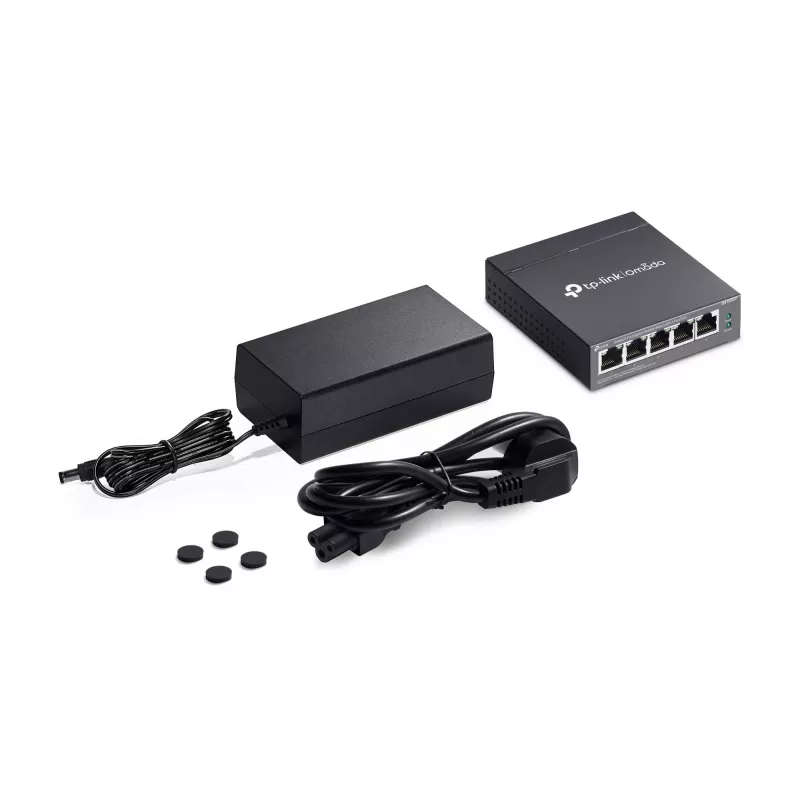

  • AC/DC Power supply included Power over Ethernet (PoE)
Specifications
10G support
No
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cables included
Power
Compliance certificates
CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
53.5 V
Depth
98 mm
Ethernet LAN data rates
10,100,1000 Mbit/s
Fanless
Yes
Forwarding rate
7.44 Mpps
Heat dissipation
254.01 BTU/h
Height
25 mm
Housing material
Steel
IGMP snooping
Yes
Input current
1.31 A
Jumbo frames
16
Jumbo frames support
Yes
LED indicators
Activity, Link, PoE, Power
MAC address table
2000 entries
Networking standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Power connector
DC-in jack
Power consumption (max)
74.54 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Power source
AC/DC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Reset button
Yes
Rubber feet
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch type
Unmanaged
Switching capacity
10 Gbit/s
Total Power over Ethernet (PoE) budget
65 W
User guide
Yes

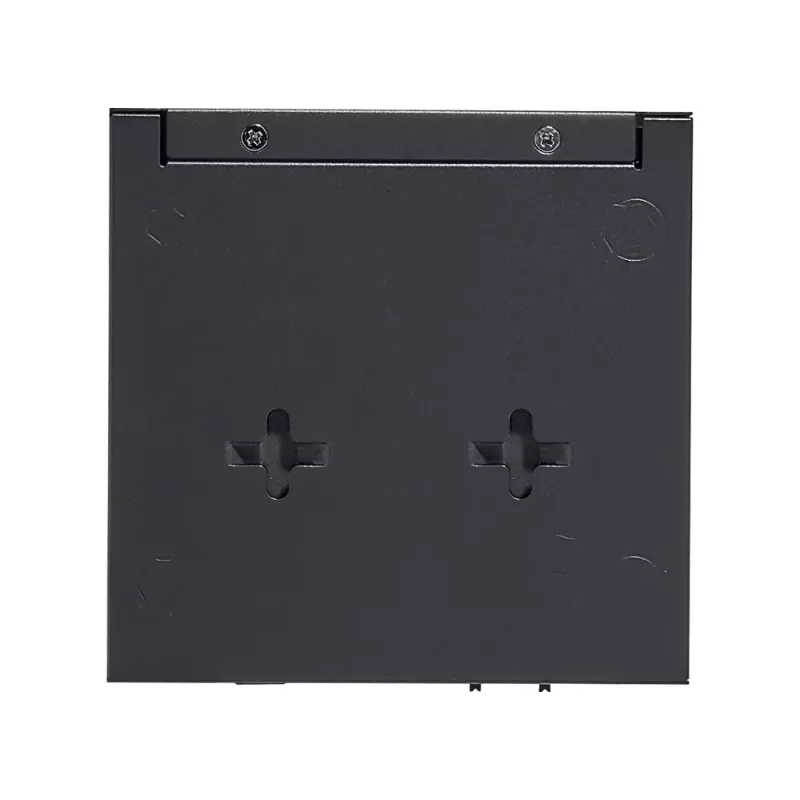

Wall mountable
Yes
Width
99.8 mm

Leaflet

Open Leaflet

Manual

Open Manual
