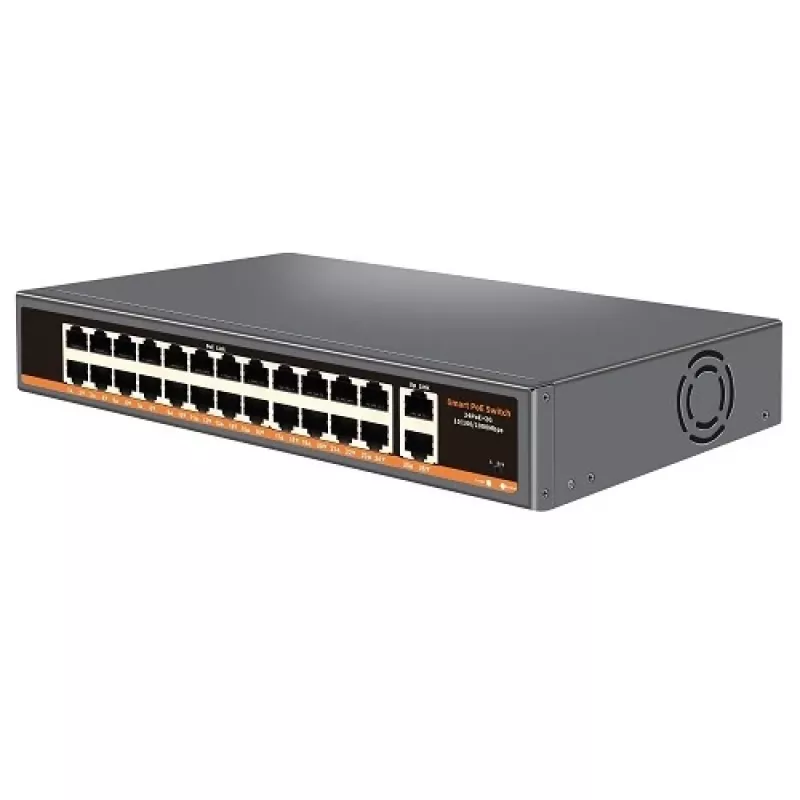

HISMART 24-Port PoE+ Network Switch with 2 Gigabit Uplink Ports, 300W Budget, Rack-Mountable

Running out of power and ports for your growing network of IP cameras, access points, and VoIP phones? The HISMART TV993710 is a 26-port unmanaged PoE+ switch that combines 24 Fast Ethernet PoE+ ports with 2 Gigabit uplink ports, delivering both data and power over a single cable. With a total PoE budget of 300W and up to 30W per port, it can handle a full load of PoE devices without the need for separate power injectors. The metal housing and fan-assisted cooling ensure reliable operation in demanding environments, while the 1U rack-mount form factor makes it easy to integrate into your existing infrastructure.

Who is it for

This switch is ideal for small to medium businesses, surveillance system installers, and IT administrators who need to deploy multiple PoE-powered devices such as IP cameras, wireless access points, and VoIP phones. It is also suitable for expanding existing networks where additional PoE ports are required without complex configuration.

Main features

• 24 x 10/100 Mbps PoE+ ports (IEEE 802.3af/at) with up to 30W per port
• 2 x Gigabit uplink ports for high-speed connection to the core network
• Total PoE power budget of 300W to power all connected devices
• Unmanaged plug-and-play operation, no configuration needed
• Rack-mountable 1U metal housing for durability and easy installation
• Fan-assisted cooling for optimal thermal performance
• LED indicators for power, link/activity, and PoE status
• Complies with CE, FCC, and RoHS standards

Specifications

• Total ports: 26 (24 PoE+ + 2 uplink)
• PoE ports: 24 x 10/100 Mbps RJ45
• Uplink ports: 2 x 10/100/1000 Mbps RJ45
• PoE standard: IEEE 802.3af/at (PoE+)
• Max power per PoE port: 30W
• Total PoE power budget: 300W
• Switching capacity: 9.2 Gbps
• Forwarding rate: 6.8 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9KB
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
• Management type: Unmanaged
• Power supply: AC 100-240V, 50/60Hz, internal
• Mounting: Rack-mountable (1U)
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% non-condensing
• Cooling: Fan-assisted
• Housing material: Metal
• Certification: CE, FCC, RoHS

Tips

To maximize the PoE budget, calculate the total power consumption of your connected devices. If you plan to use high-power devices like PTZ cameras or 802.11ac access points, ensure they do not exceed 30W per port. Use Cat5e or better cables for reliable PoE delivery. For rack installation, use the included mounting brackets and ensure proper airflow around the switch.
