TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
60 mo.
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
R1,503
Dedicated Complete, Private Wi-Fi Network in Each RoomAn EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.MU-MIMO + Dual-Band: Connect Faster and More802.11ac wave 2 MU-MIMO technology enables mul... Read More
Stock 17 Code 91080 Brand TP-LINK Model EAP235-WALL Warranty 5 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Key Highlights
  • Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
  • Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment

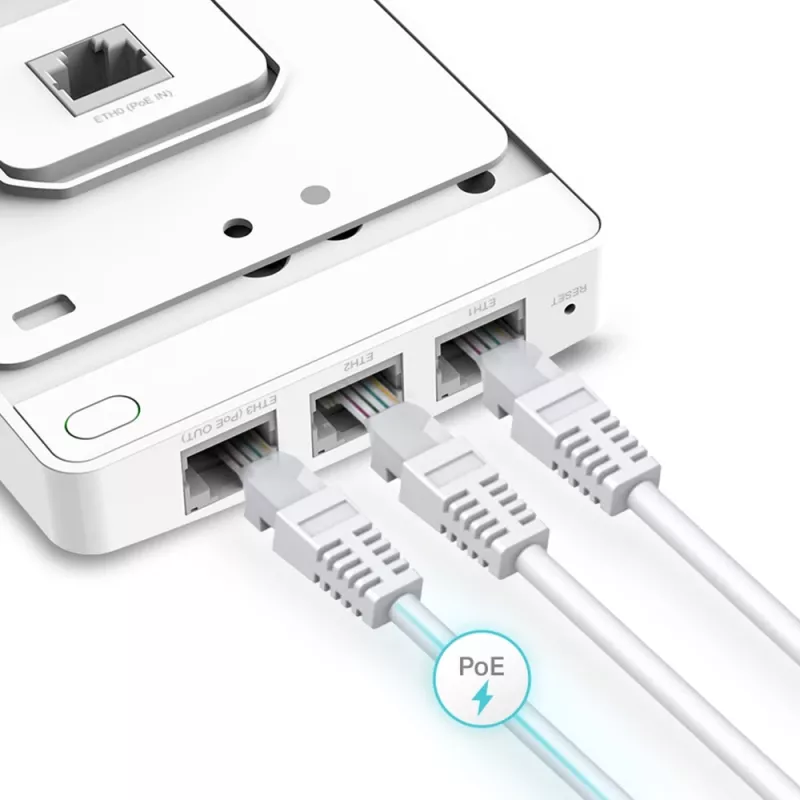

  • Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
  • High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
  • Cloud management and Omada app supported for ultra-convenience and easy management
  • Enterprise class Wi-Fi security helps to decrease network security threats
  • Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
  • 2.4 GHz 300 Mbit/s
  • 5 GHz 867 Mbit/s
  • Maximum data transfer rate: 1167 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
  • 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
  • Power over Ethernet (PoE)
  • Antennas quantity: 2 Internal Integrated antenna
Specifications
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Access Control List (ACL)
Yes
Antenna features
Integrated antenna
Antenna gain level (max)
4 dBi
Antenna type
Internal
Antennas quantity
2
Automatic channel scanning
Yes
Automatic channel selection
Yes
Band steering
Yes
BeamForming
Yes
Cable lock slot
Yes
Cabling technology
10/100/1000Base-T(X)
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Depth
86 mm
Ethernet LAN (RJ-45) ports
4
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Harmonized System (HS) code
85176990
Height
20 mm
LED indicators
LAN, Power, Status, WAN, WLAN
MAC address filtering
Yes
Maximum data transfer rate
1167 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
MIMO
Yes
MIMO type
Multi User MIMO
Mounting kit
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Number of SSID supported
16
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
184 mm
Package height
33 mm
Package type
Box
Package weight
300 g
Package width
117 mm
Placement
Wall
Power consumption (typical)
24.4 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE
Product colour
White
Quality of Service (QoS) support
Yes
Quantity per pack
1 pc(s)
Quick start guide
Yes
Rate limiting
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Reset button
Yes
Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Service Set Identifier (SSID) features
Multiple SSIDs
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Sustainability compliance
Yes
Syslog
Yes
Transmitting power (CE)
20 - 23 dBm
Transmitting power (FCC)
21 dBm
Universal Plug and Play (UPnP)
Yes
Virtual LAN features
Port-based VLAN, VLAN mapping
VLAN support
Yes
WAN connection
Ethernet (RJ-45)
Web-based management
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Width
143 mm
Wireless isolation
Yes
