TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
60 mo.
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
R1,604
TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant PoweredDevices (PDs) a... Read More
Stock 4 Code 338162 Brand TP-LINK Model TL-SG1006PP Warranty 5 Years

Shipping & Returns

Estimated delivery Monday, October 19
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 4000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Rack mounting

Key Highlights
  • 6× 10/100/1000 Mbps RJ45 ports

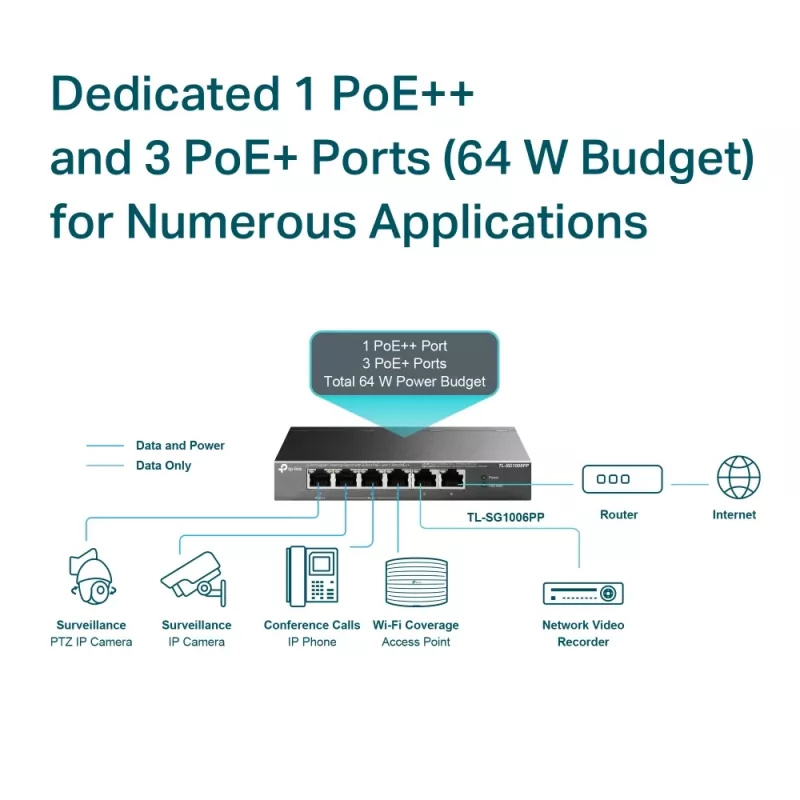

  • With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
  • Supports PoE Power up to 64 W for all PoE ports*

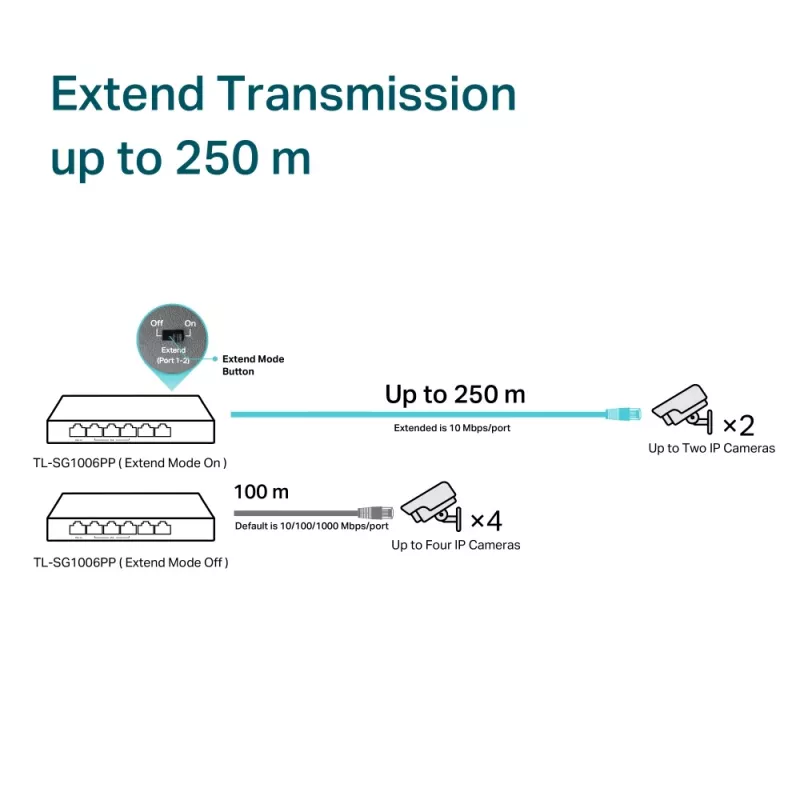

  • Up to 250m data and power transmitting range under Extend Mode**

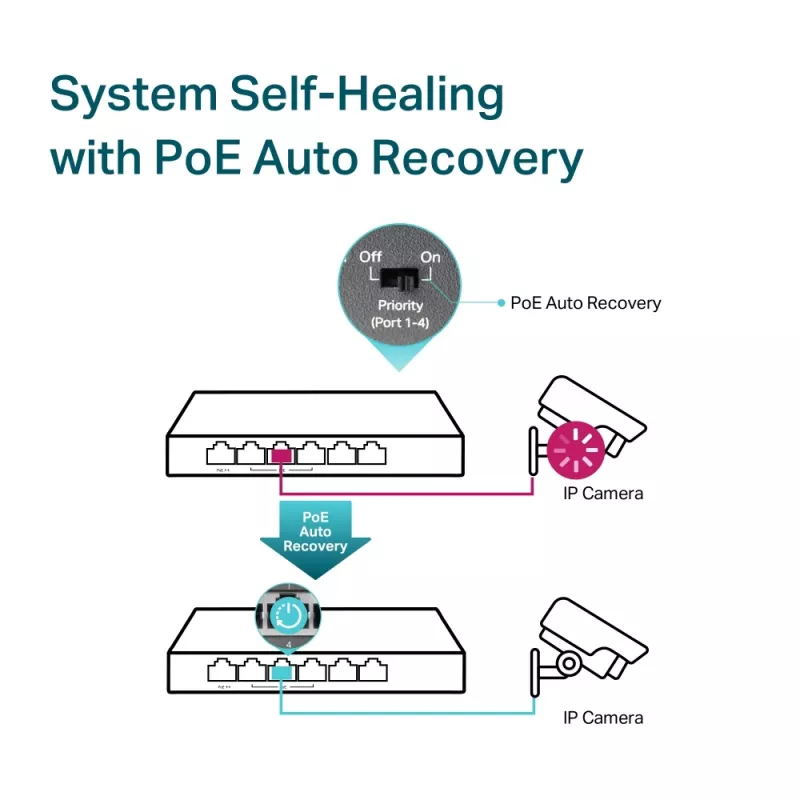

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

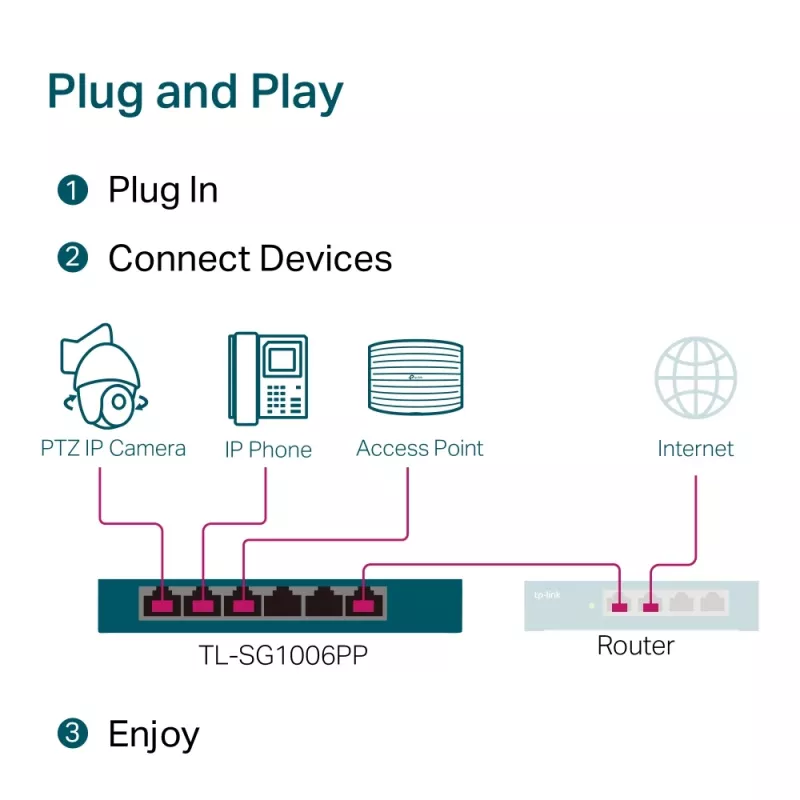

  • Plug and Play, no configuration and installation required
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 6
  • Cat3, Cat4, Cat5, Cat5e, Cat6 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 4000 entries Switching capacity: 12 Gbit/s
  • Rack mounting Stackable
  • DC/PoE Power supply included Power over Ethernet (PoE)
Specifications
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
6
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Certification
FCC, CE, RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
53.5 V
Depth
101 mm
Ethernet LAN data rates
10,100,1000 Mbit/s
Fanless
Yes
Flow control support
Yes
Forwarding rate
8.928 Mpps
Heat dissipation
16.2 BTU/h
Height
25 mm
IGMP snooping
Yes
Input current
1.31 A
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
LED indicators
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
4000 entries
Networking standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package type
Box
Power consumption (max)
71.46 W
Power consumption (typical)
4.75 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power source
DC/PoE
Power supply included
Yes
Product colour
Grey
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rack mounting
Yes
Stackable
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch type
Unmanaged
Switching capacity
12 Gbit/s
Total Power over Ethernet (PoE) budget
64 W
Width
158 mm

Leaflet

Open Leaflet
