TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount PoE Switch with 16-Port PoE+

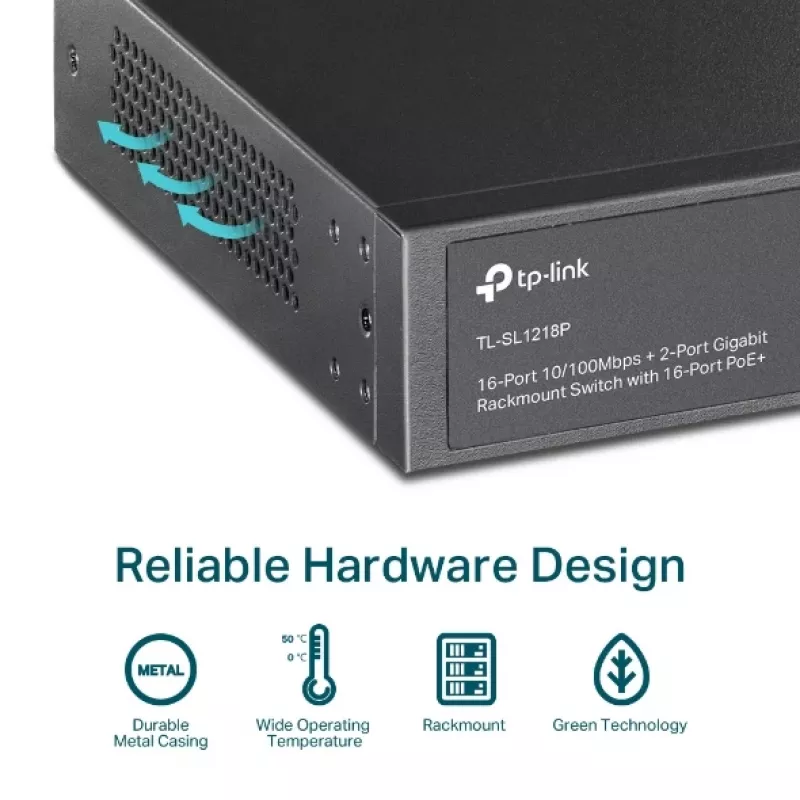

The TP-Link TL-SL1218P is an unmanaged rackmount switch with 16 10/100 Mbps ports and 2 gigabit uplink ports, designed for network expansion in offices, surveillance installations and small businesses. It provides PoE+ on all 16 PoE ports with a total PoE power budget of 150 W, supports IEEE 802.3af/at standards, and includes a combo SFP slot for flexible uplink options. The metal 1U chassis and professional heat dissipation design enable reliable operation in standard indoor environments.

Advantages

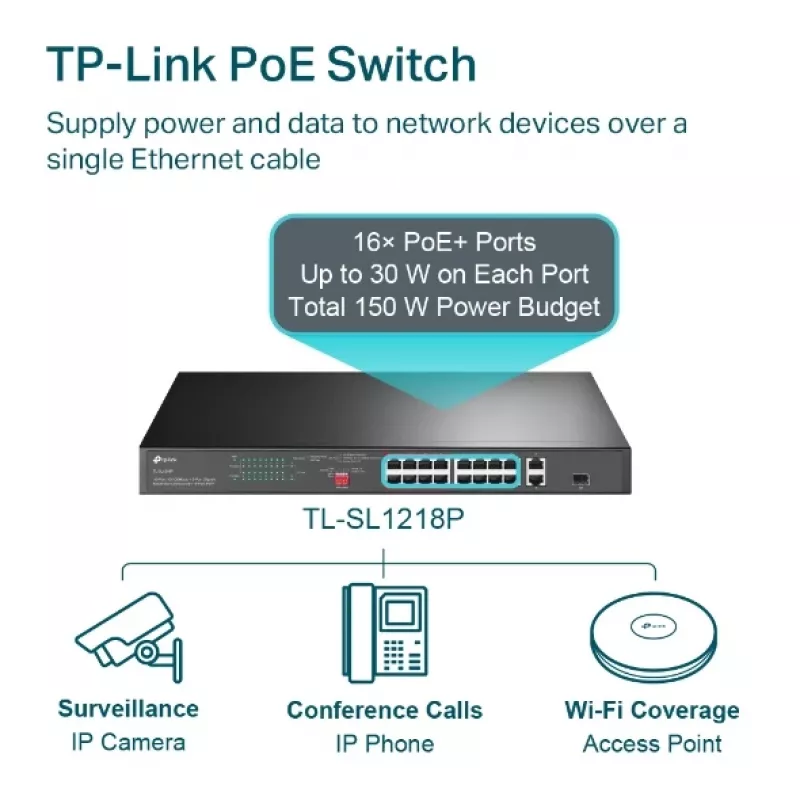

The switch supports PoE+ on each port (up to 30 W per port) and offers an extend mode that increases PoE transmission distance up to 250 m for long-reach camera deployments. Priority Mode and Isolation Mode improve video delivery and network security, while Intelligent Power Management prevents power overload by reallocating PoE when total consumption exceeds the 150 W budget. Dual gigabit uplinks (2× RJ45 + 1× combo SFP) ensure smooth HD video streaming when multiple IP cameras are active.

Suitable for

• IP surveillance systems with multiple cameras
• Small and medium office networks
• Dormitories and shared housing network deployments
• PoE devices such as access points and IP phones
• Mixed PoE and non‑PoE wired equipment (PCs, printers, IPTV)

Key specifications

• Model: TP-Link TL-SL1218P
• Ports: 16× 10/100 Mbps PoE+ ports, 2× Gigabit RJ45 uplinks, 1× combo Gigabit SFP slot
• PoE standard: IEEE 802.3af/at (PoE+)
• Total PoE budget: 150 W
• Switching capacity: 7.2 Gbit/s
• MAC address table: 8,000 entries
• Operating temperature: 0–50 °C
• Form factor: 1U rackmount, metal casing

How to use

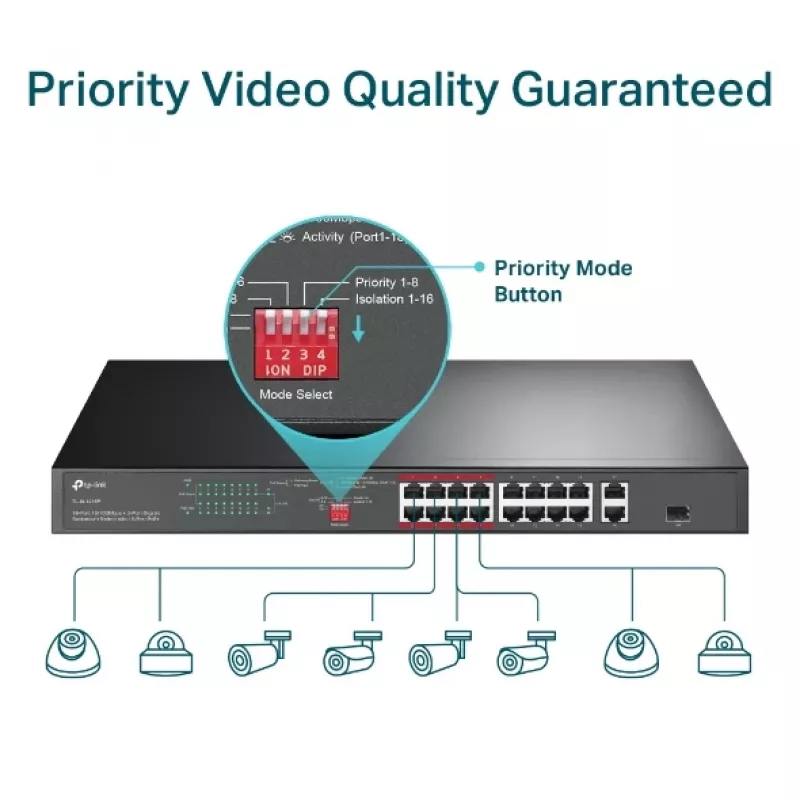

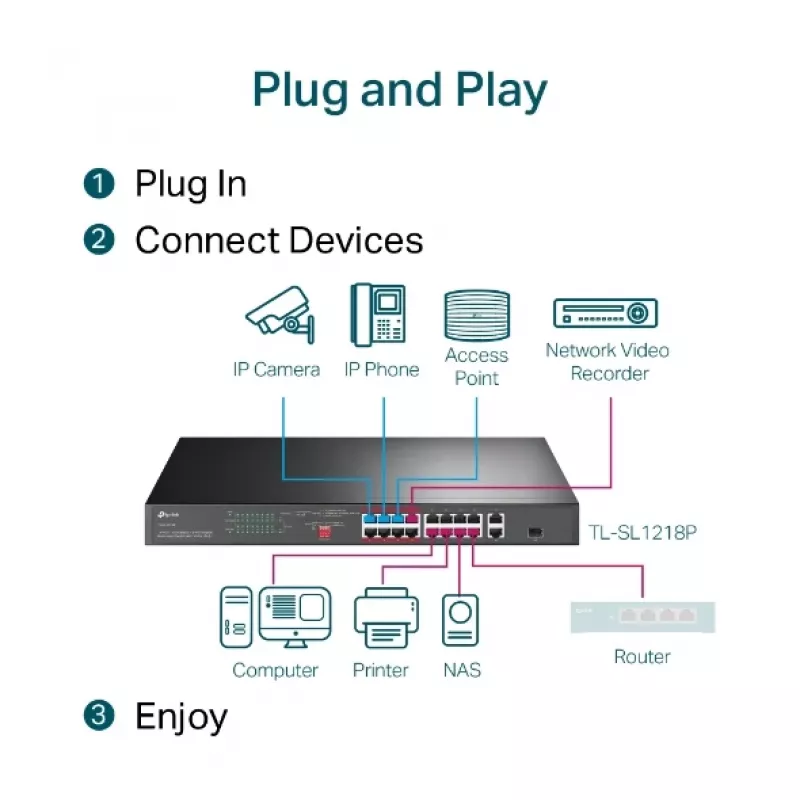

Mount the TL-SL1218P in a 19-inch rack using the included brackets. Connect non‑PoE devices to the 10/100 ports and PoE devices (IP cameras, access points, IP phones) to the PoE ports; uplink the switch to your core network using the gigabit RJ45 ports or the SFP slot. The device is plug-and-play: it automatically detects PoE requirements for connected devices and supplies power accordingly. Use the one-touch Priority Mode to prioritise ports 1–8 for video traffic and enable Isolation Mode when you need to separate port-to-port traffic for security.

Recommendations

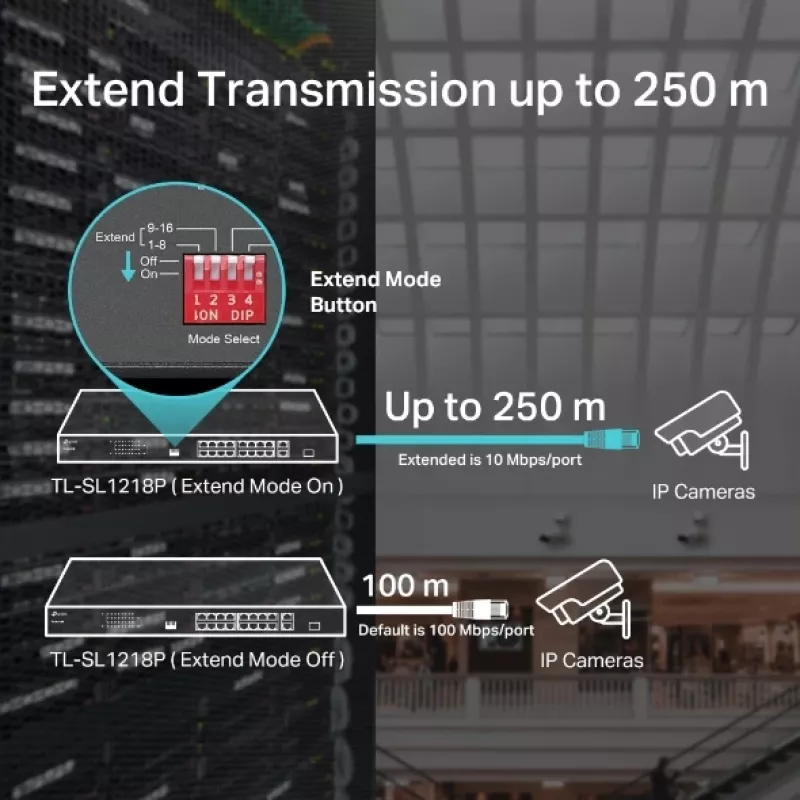

For surveillance deployments that require extended reach, enable Extend Mode to deliver PoE up to 250 m. Plan the total power consumption of connected PoE devices to remain within the 150 W budget; critical devices should be connected to higher-priority ports to ensure continuous power during peak load. Ensure adequate ventilation around the metal chassis and operate the switch within the specified 0–50 °C range.
