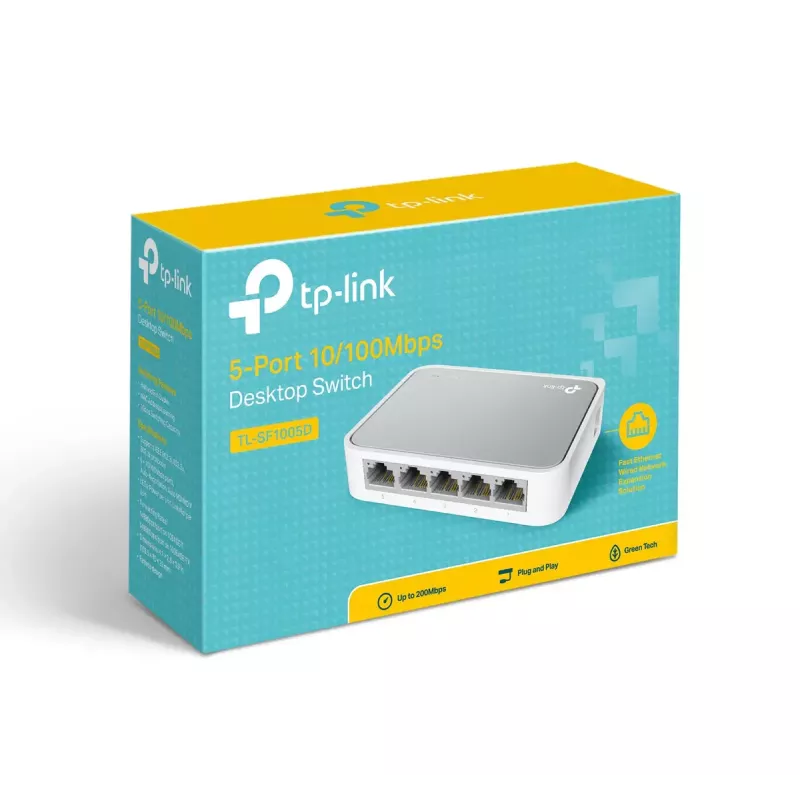

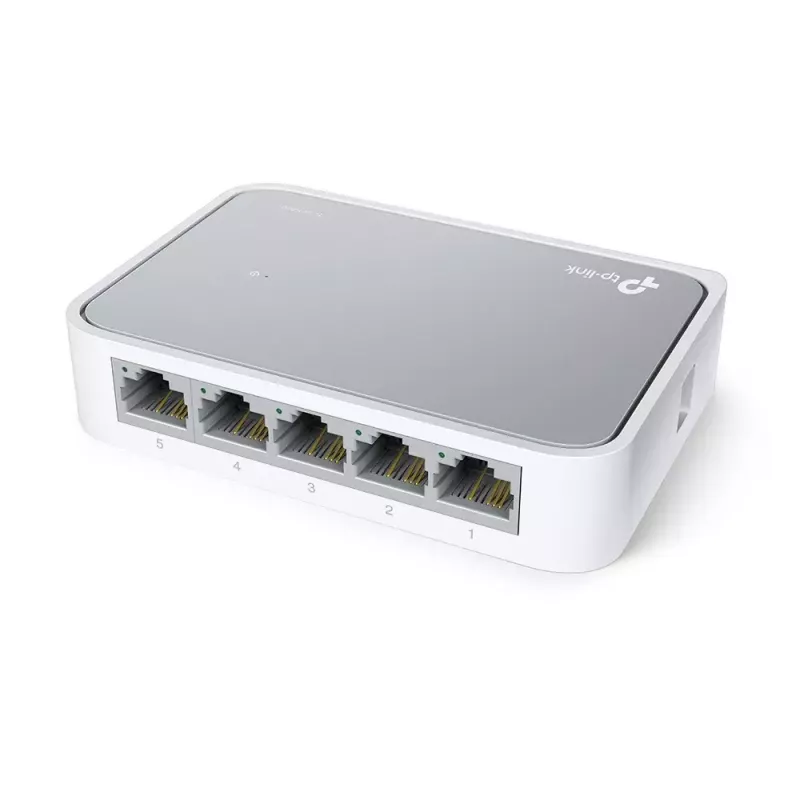

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White

The TP-Link TL-SF1005D is an unmanaged 5-port Fast Ethernet switch that provides a simple way to expand a wired network for home or small office use. It offers five 10/100 Mbps Auto-Negotiation RJ45 ports with Auto MDI/MDIX and supports full-duplex operation for improved data throughput. The switch complies with IEEE 802.3u and IEEE 802.3x standards, includes a MAC address table and a non-blocking switching architecture to forward packets at wire speed.

Advantages

The TL-SF1005D requires no configuration and works plug-and-play, with Auto MDI/MDIX eliminating the need for crossover cables. Full-duplex mode and IEEE 802.3x flow control help reduce congestion while 10K jumbo frame support improves large file transfer performance. Energy-efficient technology reduces power consumption compared with standard switches, making it suitable for continuous operation in domestic or small business environments.

Suitable for

• Expanding wired networks in homes
• Small office network connectivity
• Connecting printers, PCs, NAS devices and IP cameras
• Temporary network extension for meetings or events

Key specifications

• Switch type: Unmanaged
• Ports: 5 x 10/100 Mbps Auto-Negotiation RJ45
• Auto MDI/MDIX: Yes
• Switching capacity: 1 Gbit/s
• Jumbo frame: 10K
• Standards: IEEE 802.3u, IEEE 802.3x
• Product colour: White

How to use

Place the TL-SF1005D on a stable surface and connect its power adapter. Plug Ethernet cables from your modem, router or network devices into any of the five RJ45 ports; the switch will auto-negotiate link speed and automatically detect cable type. No additional setup or configuration is required—devices connected to the switch will be able to communicate over the local network immediately.

Recommendations

For optimal performance, use quality Cat5e or Cat6 Ethernet cables and avoid placing the switch in areas with poor ventilation or high temperatures. Although the switch supports 10/100 Mbps connections, use it with Gigabit-capable devices only when those devices are connected through a compatible gigabit switch or router.
