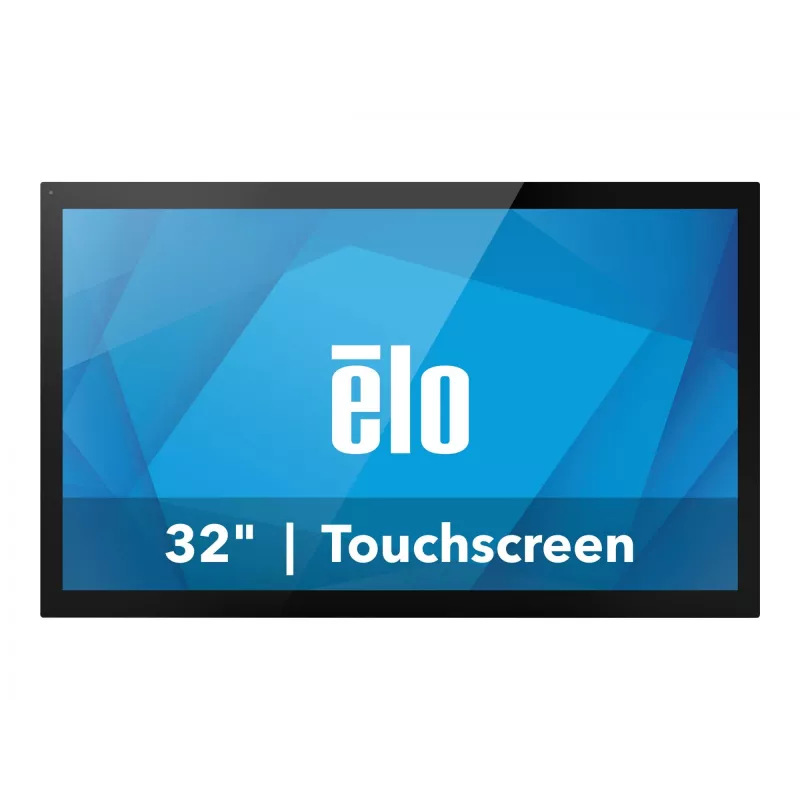

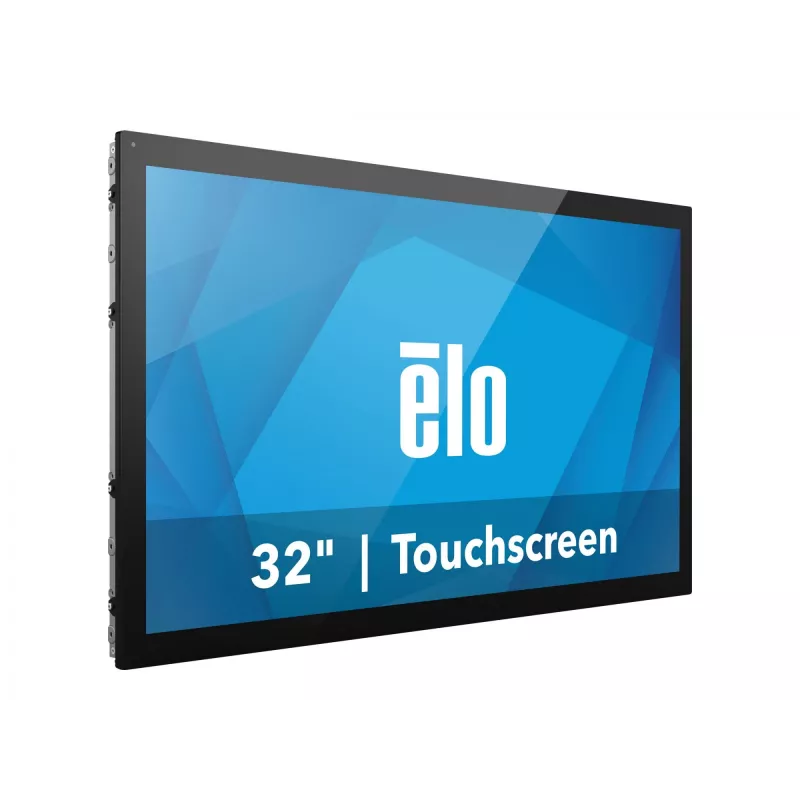

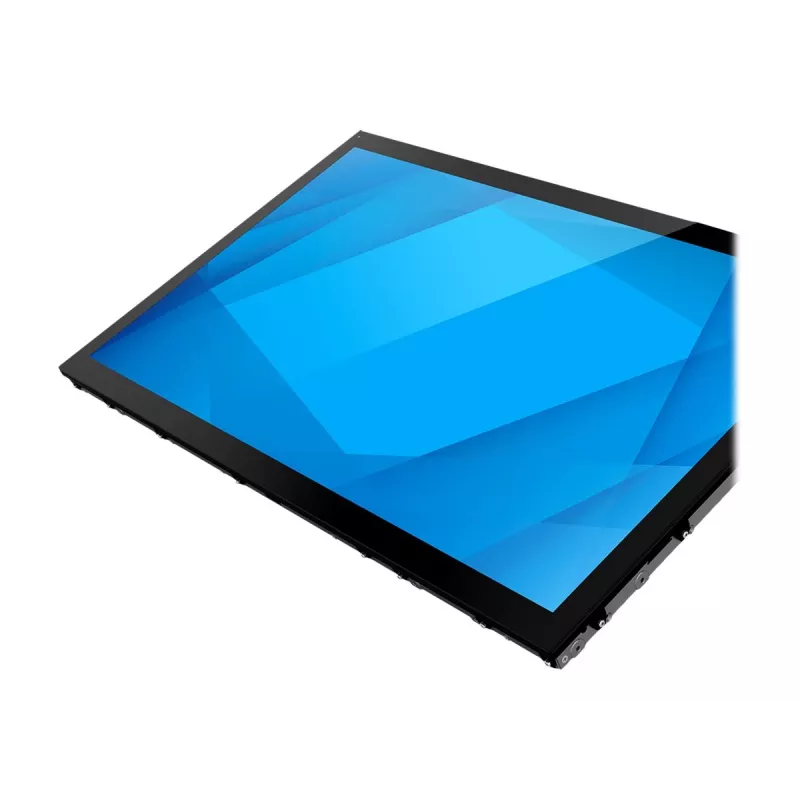

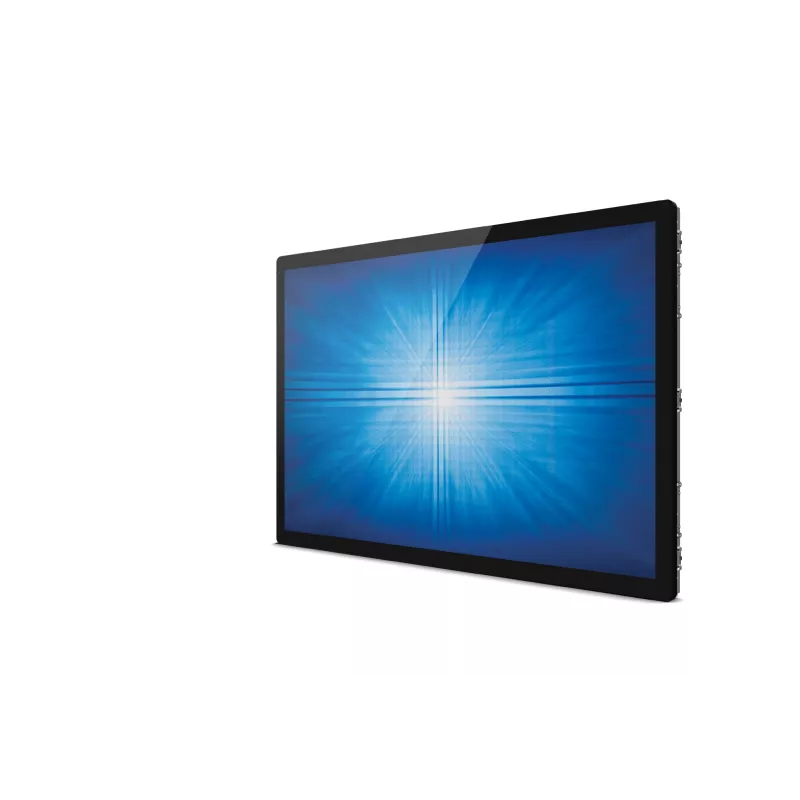

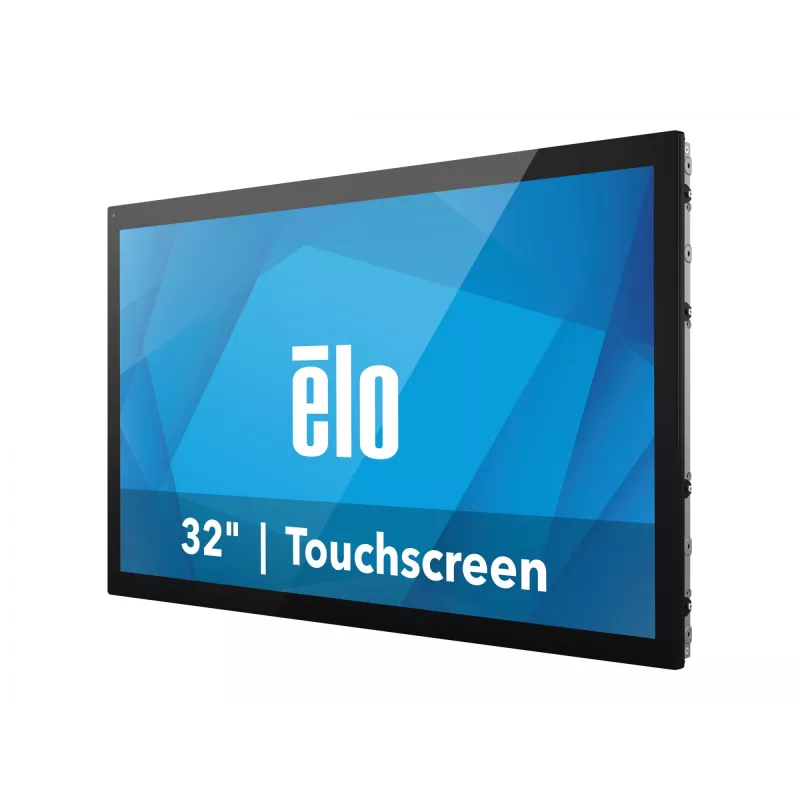

Touchscreen Monitor Elo Touch Solutions 3263L 31.5 inch Full HD 500 cd/m² Black

The Elo Touch Solutions 3263L is a 31.5-inch Full HD touchscreen monitor with LED backlighting and 500 cd/m² brightness, designed for integration into kiosks, enclosures and industrial panels. Its slim open-frame design and commercial-grade construction make it suitable for self-ordering, self-checkout, wayfinding, operating-room control boards and other applications requiring a reliable interactive display.

Advantages

The 3263L features TouchPro projected capacitive (PCAP) technology with edge-to-edge glass and support for up to 40 simultaneous touch points, delivering a tablet-like multi-touch experience. Models are available with anti-glare or anti-friction glass to reduce reflections and improve usability. The display supports mounting in landscape, portrait and upward-facing orientations for flexible integration, and offers touch-thru capability to operate through additional protective layers of glass (up to 6 mm) or plastic (up to 3 mm) when higher enclosure protection is required.

Suitable for

• Self-order and self-checkout kiosks
• Wayfinding and information kiosks
• Industrial control panels and operator stations
• Medical/operating room control boards
• Enclosed or vandal-resistant kiosk installations

Key specifications

• Screen size: 31.5 inches (32-inch class)
• Resolution: Full HD 1920 x 1080
• Brightness: 500 cd/m²
• Touch technology: TouchPro PCAP, up to 40 simultaneous touches
• Glass options: anti-glare or anti-friction, edge-to-edge
• Mounting orientations: landscape, portrait, upward facing
• Touch-thru capability: works through glass up to 6 mm or plastic up to 3 mm
• Color: black

How to use

Install the open-frame 3263L touchscreen into your kiosk, enclosure or cabinet according to the manufacturer’s mechanical and electrical integration guidelines. Choose the appropriate glass option for your environment (anti-glare or anti-friction). Configure the display orientation—landscape, portrait or upward-facing—before final mounting. Connect video and touch interfaces to your host system and calibrate touch if required by your software. For installations using an extra protective layer, ensure the protective material thickness does not exceed the specified limits for touch-thru operation.

Recommendations

For durable, long-term operation in public or harsh environments select the anti-friction glass and verify enclosure sealing and cooling requirements; when installing behind protective panels, confirm the combined optical and mechanical compatibility with the 3263L to preserve touch responsiveness and display clarity.
