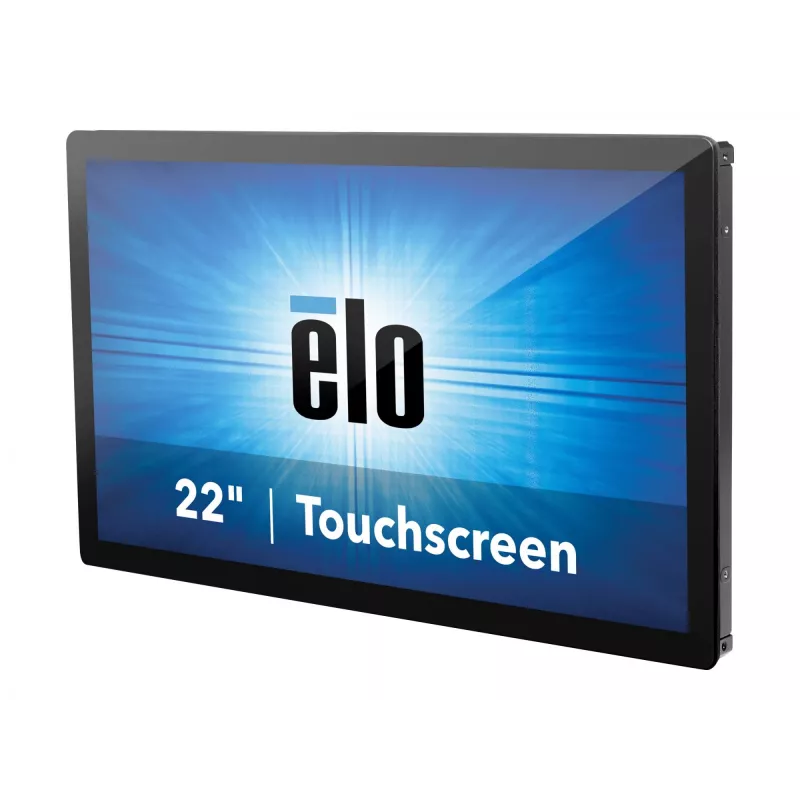

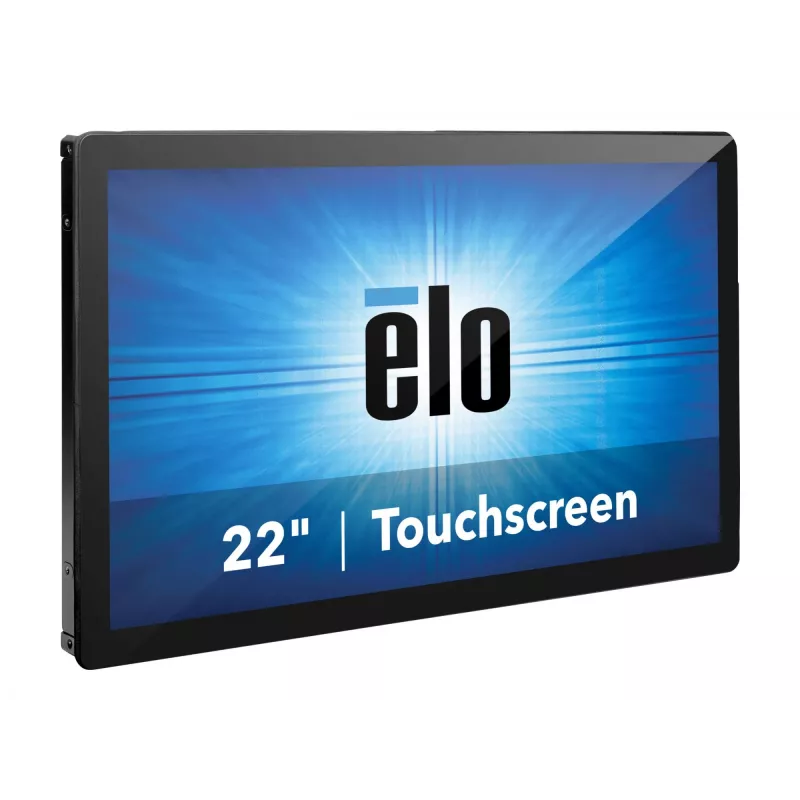

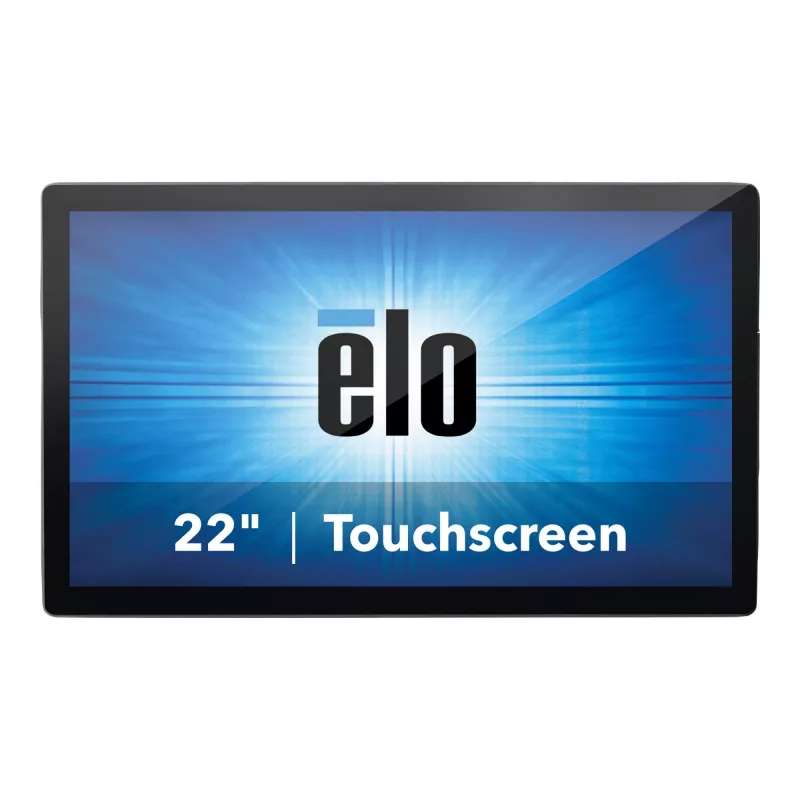

Monitor 2295L 21.5 inch FHD WVA Open Cap 10 ZBezel HDMI VGA USB

The Elo 2295L is a 21.5" Full HD (1920 x 1080) WVA open-frame touchscreen display designed for commercial and industrial kiosk applications. Featuring Elo's TouchPro® PCAP touch technology with up to 10 simultaneous touches and edge-to-edge glass, this open-cap monitor provides high image clarity, wide viewing angles and reliable, drift-free touch performance. The model supports HDMI, VGA and USB connectivity and is available with high brightness options suitable for a variety of indoor deployments.

Advantages

This open-frame monitor combines a slim Z-bezel design with robust industrial-grade construction, delivering stable touch responses and high light transmissivity. The TouchPro® PCAP supports touch-thru glass up to 6 mm, enabling flush or behind-glass installations. The display is compatible with Elo Backpack and EloView® for simplified content delivery and remote kiosk management, and it can be mounted in landscape, portrait or face-up orientations to fit different kiosk, cabinet or tabletop designs.

Suitable for

• Self-service kiosks and terminals
• Retail point-of-sale and digital signage
• Gaming cabinets and amusement machines
• Industrial automation panels and operator interfaces
• Tabletop and embedded touch applications

Key specifications

• Display diagonal: 21.5"
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TFT WVA, LED backlight
• Touch technology: TouchPro® PCAP, up to 10 simultaneous touches
• Brightness: options from 400 to 1000 nits (model-dependent)
• Touch-thru glass support: up to 6 mm
• Inputs: HDMI, VGA, USB
• Response time: 14 ms
• Contrast ratio (typical): 1000:1
• Mounting: VESA compatible
• Colour: Black
• MPN: E146083

How to use

Install the 2295L open-frame monitor into your kiosk, cabinet or tabletop according to the mounting orientation required (landscape, portrait or face-up). Connect video using HDMI or VGA and attach the USB for touch data and power where applicable. If using an Elo Backpack, attach the Backpack to provide Android-based compute, content delivery and remote management through EloView®. For installations that require a protective front glass, ensure the glass thickness does not exceed 6 mm when using touch-thru functionality.

Recommendations

For reliable long-term operation, follow Elo’s installation and environmental guidelines: avoid direct, prolonged sunlight on the screen, ensure adequate ventilation for any attached compute module, and use IP-rated enclosures when installing in dusty or humid environments. Regularly check and update firmware via EloView® if using remote management.
