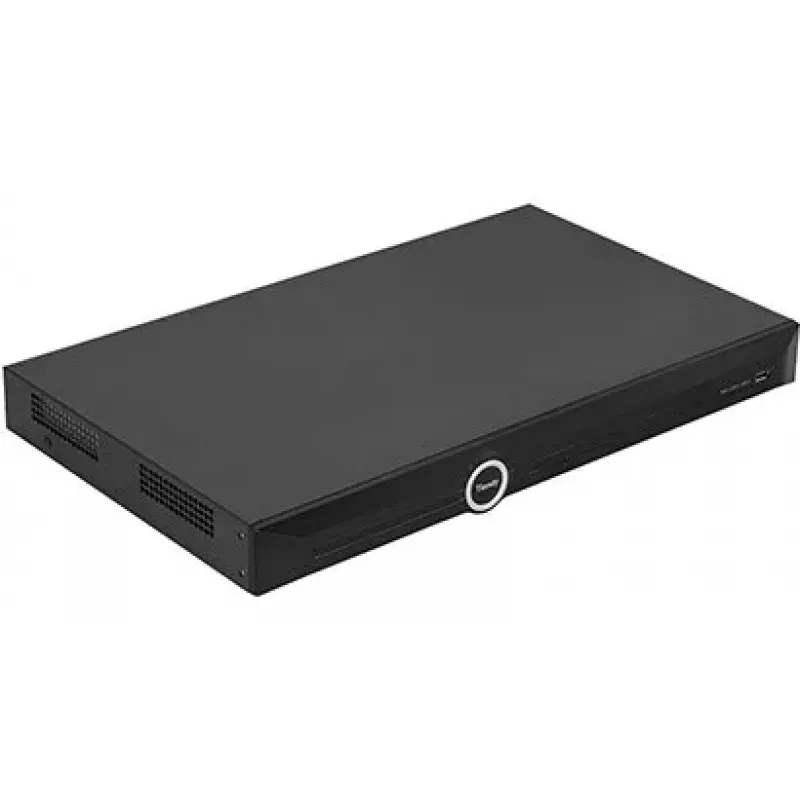

Tiandy TC-R3220 20-Channel IP Recorder with 16 PoE Ports Lite

The Tiandy TC-R3220 is a high-performance 20-channel IP video recorder designed for small to medium-sized surveillance systems. With 16 integrated PoE ports (IEEE 802.3af/at) and a total PoE budget of 180W, it simplifies installation by powering cameras directly. Supporting up to 8MP (4K UHD) resolution and H.265+ compression, this recorder delivers exceptional video quality while minimizing bandwidth and storage requirements.

Advantages

Cost-effective solution with 20-channel recording and 16 PoE ports, eliminating the need for separate power supplies. H.265+ compression reduces storage usage by up to 50% compared to H.264. Dual SATA interfaces support up to 10TB each for extensive recording capacity. Remote access via TVP (Tiandy Vision Pro) mobile app ensures real-time monitoring from anywhere.

Suitable for

• Retail stores and small businesses requiring up to 20 cameras
• Office surveillance with PoE camera support
• Residential security systems needing high-resolution recording
• Warehouse or storage facility monitoring

Key specifications

• Video Input: 20 IP channels
• PoE Ports: 16 (IEEE 802.3af/at, total 180W)
• Max Recording Resolution: 8MP (4K UHD)
• Video Compression: H.265+/H.265/H.264
• Video Output: 1x HDMI (up to 4K), 1x VGA
• Audio: 1-ch RCA input, 1-ch RCA output, two-way audio
• HDD: 2x SATA (up to 10TB each)
• Network: 1x Gigabit RJ45
• USB: 2x USB 2.0
• Power: DC 48V
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, pair with Tiandy PoE cameras and use high-quality CAT6 cables. Ensure adequate ventilation for the recorder. The 180W PoE budget supports up to 16 cameras with typical power consumption.
