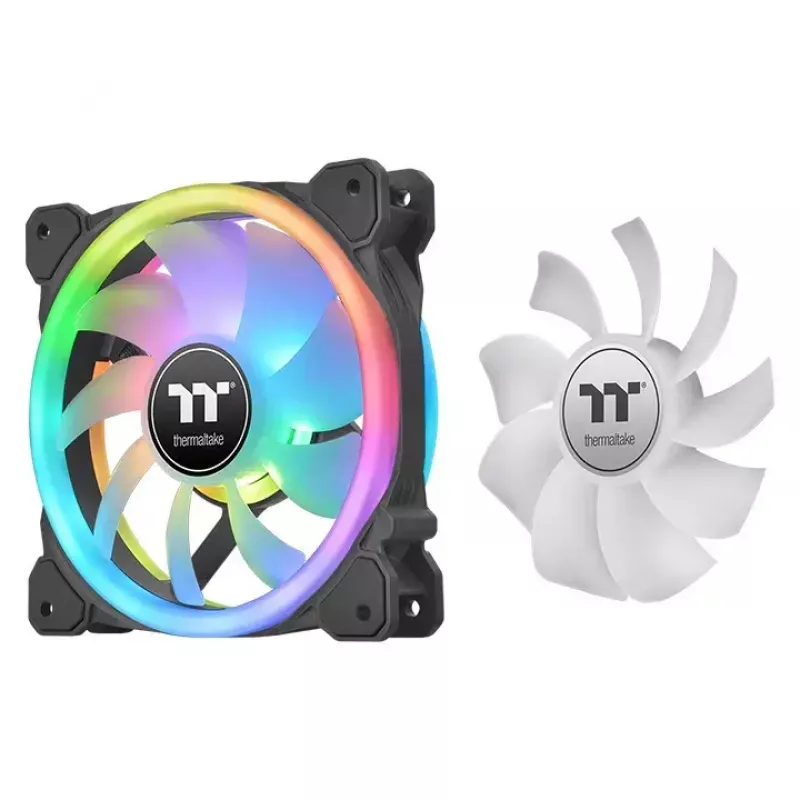

Fan Thermaltake SWAFAN 12 RGB 12 cm Black 500-2000 RPM

The Thermaltake SWAFAN 12 RGB is a 120 mm case fan designed to balance airflow, static pressure and visual lighting for desktop PC cooling. With a speed range from 500 to 2000 RPM and a maximum air pressure of 2.58 mmH2O, this fan is intended to move air efficiently through radiators, heatsinks and chassis vents while contributing RGB illumination to a build. The fan’s black frame and blade assembly provide a neutral appearance that fits a variety of system layouts and component color schemes.

Advantages

The fan delivers a broad RPM range that allows quiet operation at low speeds and increased airflow when higher cooling performance is needed. Its 120 mm diameter and measured static pressure make it suitable for both unrestricted case intake/exhaust and for use on finned radiators or dense heatsinks. Integrated RGB lighting adds customizable visual feedback without altering the fan’s primary function of heat dissipation.

Suitable for

• Case intake and exhaust in mid-tower and full-tower desktop systems
• Mounting on 120 mm-compatible radiators for liquid-cooling loops
• Improving airflow across CPU and GPU heatsinks in compact builds

Key specifications

• Fan diameter: 120 mm
• Rotational speed: 500–2000 RPM
• Maximum air pressure: 2.58 mmH2O
• Colour: Black

How to use

Install the fan in a 120 mm mounting position using the appropriate screws or vibration-damping mounts. Observe airflow direction markings on the fan housing to ensure correct intake or exhaust orientation for your desired airflow pattern. Connect power and RGB control to compatible motherboard headers or controllers as specified by your system; verify connector types before installation. Use fan speed control in BIOS or a software controller to set desired RPM profiles, balancing noise and cooling performance according to system load.

Recommendations

For balanced cooling and acoustics, set the fan to operate at lower RPM for general desktop tasks and allow automatic or manual ramp-up under heavy load. When mounting on radiators, maintain adequate spacing and use push, pull or push–pull configurations depending on radiator thickness and case clearance. Regularly clean dust from the blades and filter areas to preserve airflow and prolong fan service life.
