Fan Thermaltake Riing Quad 12 RGB

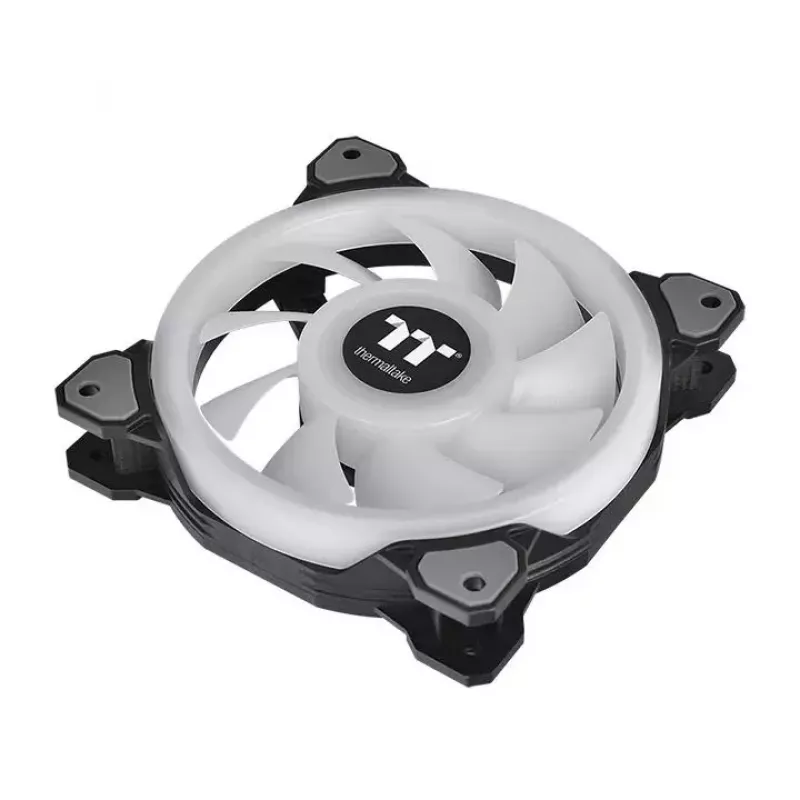

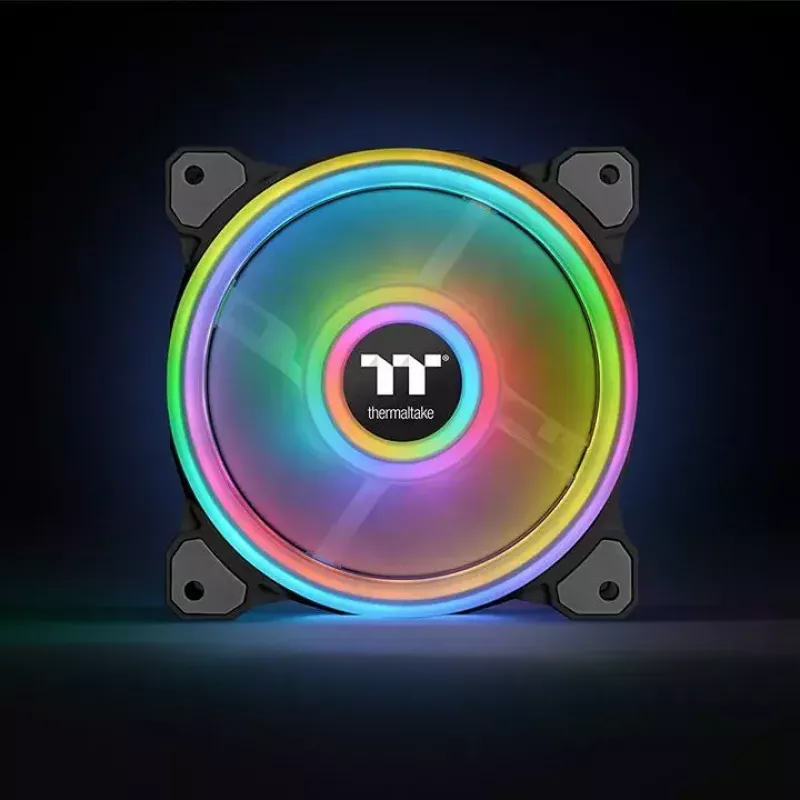

The Thermaltake Riing Quad 12 RGB is a 120 mm radiator fan engineered for efficient cooling and customizable RGB lighting. It features four independent LED rings with a total of 54 LEDs and supports Thermaltake's NeonMaker light editing software and the TT RGB PLUS ecosystem. The fan uses a hydraulic bearing and a 9-blade PWM-controlled design to balance airflow and low noise during operation.

Advantages

The Riing Quad 12 RGB provides vivid, multi-zone lighting with 16.8 million color combinations across four separate LED rings, controllable via NeonMaker and TT RGB PLUS. Its hydraulic bearing reduces friction and noise while extending service life, and the 9-blade impeller produces higher airflow and improved cooling performance. In-mold anti-vibration rubber pads minimize vibration and maintain low noise even at higher speeds.

Suitable for

• PC radiator cooling in liquid-cooled systems
• Case airflow and intake/exhaust fan replacement
• Custom builds requiring addressable multi-zone RGB lighting
• Systems where quiet operation and durability are priorities

Key specifications

• Type: Fan
• Fan diameter: 120 mm
• Speed range: 500–1500 RPM (PWM control)
• Maximum air pressure: 1.4 mmH2O
• Bearing type: Hydraulic bearing
• LEDs: 54 LEDs in 4 independent rings, 16.8 million colors
• Colour: Black
• Weight: 0.189 kg
• MPN: CL-F088-PL12SW-A
• EAN: 4713227521574

How to use

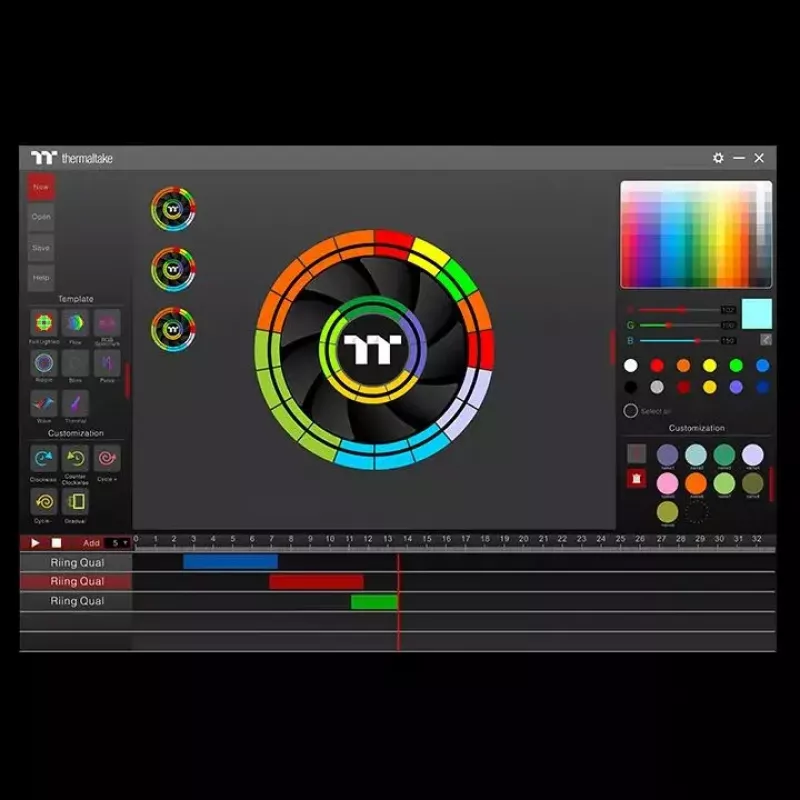

Install the Riing Quad 12 RGB into a compatible 120 mm fan mount (radiator, case or bracket) using the supplied screws. Connect the fan power and PWM cable to an available fan header on the motherboard or a PWM hub to allow speed control. Connect the RGB/LED cable to a Thermaltake RGB controller or motherboard RGB header compatible with TT RGB PLUS, then use NeonMaker or TT RGB PLUS software to configure lighting profiles and synchronize with other compatible devices.

Recommendations

For optimal cooling and lighting results, place the fan on radiator positions recommended by your liquid-cooling manufacturer, enable PWM control for automatic speed adjustment, and use NeonMaker to create synchronized lighting across TT RGB PLUS-compatible components. Regularly check and clean the fan blades and anti-vibration pads to maintain performance and low noise levels.
