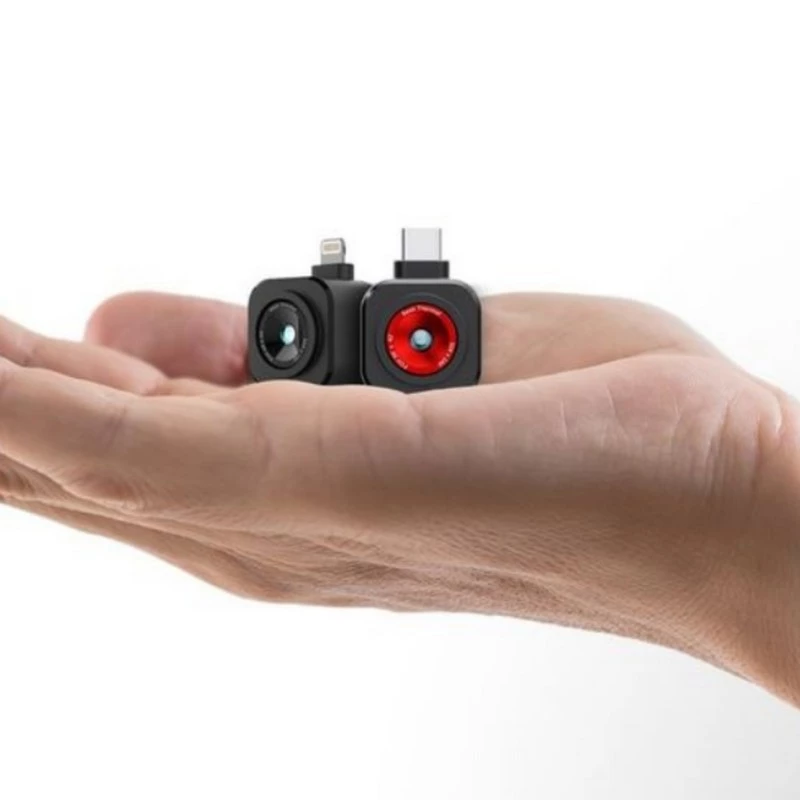

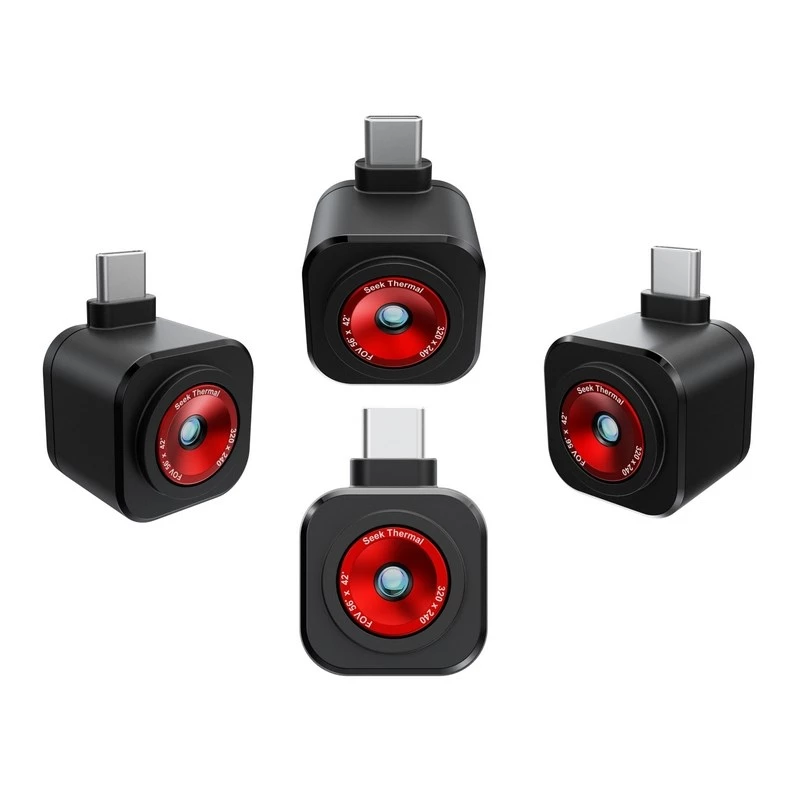

Thermal imaging camera Seek Thermal CQ-DBAX, thermal module 320×240 px, NETD 35 mK, -20–330 °C, 25 Hz

The Seek Thermal CQ-DBAX is a compact thermal imaging camera with a 320 x 240 thermal sensor designed for home inspection and portable field use. It detects heat loss, air and water leaks, electrical hot spots, pests and other thermal anomalies while also serving as a low-light and night-vision aid for outdoor activities. The device connects to Android phones with a USB-C port and uses the Seek Nano app to display, capture and store thermal images and video on your smartphone.

Advantages

The camera provides a high-resolution 320 x 240 thermal image at over 25 Hz for smooth on-screen viewing and more accurate analysis. It offers a wide 56° x 42° field of view to capture larger scenes, seven color palettes for different viewing preferences, and the ability to view the smartphone camera and thermal image simultaneously. Temperature measurement covers −20 °C to 330 °C with sensitivity <35 mK and an accuracy of ±5% (or ±5 °C), and recordings are saved directly to your phone for easy sharing.

Suitable for (tasks / use cases)

• Home energy audits and detecting heat loss
• Locating air leaks, water leaks and insulation issues

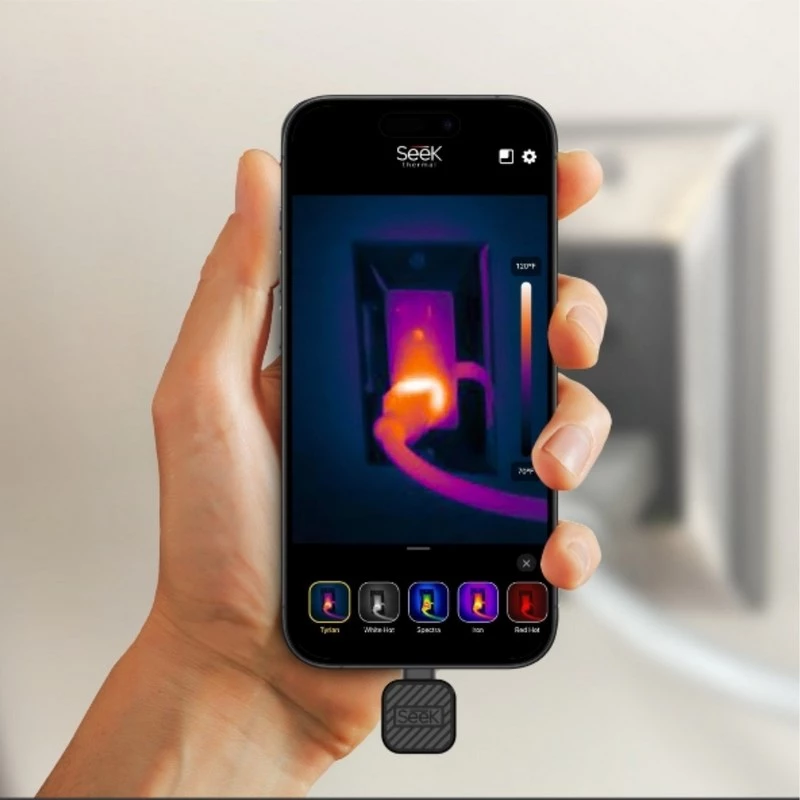

• Identifying electrical hot spots and equipment faults
• Night observation, outdoor activities and wildlife spotting
• Quick thermal checks during maintenance and inspections

Key specifications

• Thermal resolution: 320 x 240 pixels
• Field of view: 56° x 42°
• Frame rate: 25 Hz
• Focus: Fixed (30 cm to ∞); 5 cm with macro lens
• Spectral range: 7.8–14 μm
• Temperature range: −20 °C to 330 °C (−4 °F to 626 °F)
• Thermal sensitivity: <35 mK at 25 °C
• Measurement accuracy: ±5% or ±5 °C
• Image optimization: SV1 improvement
• Photo and video capture; spot and high/low temperature markers

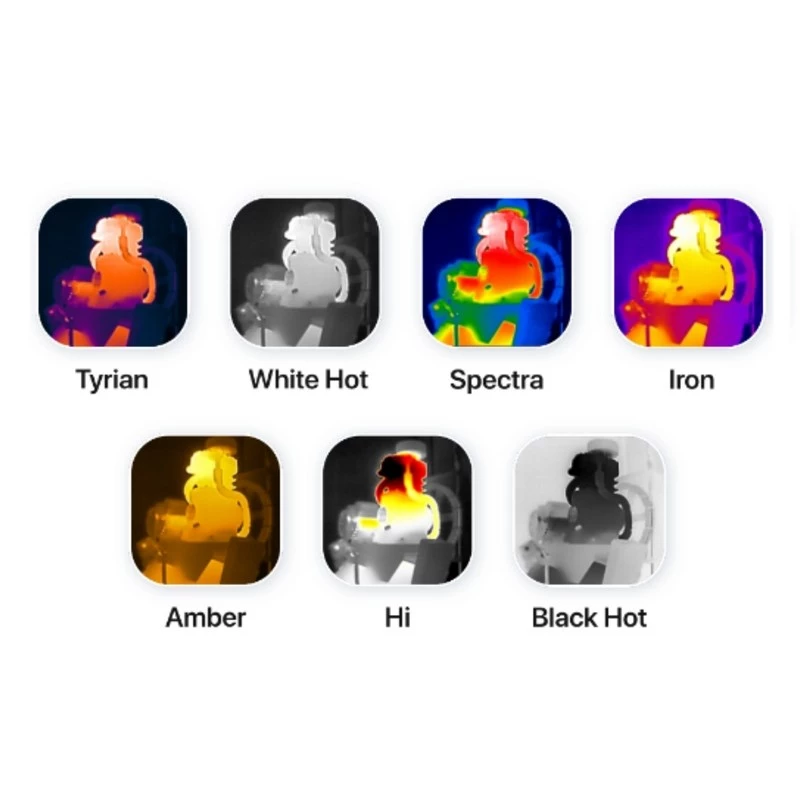

• Palettes: 7 color options
• Compatibility: Android devices with USB-C; Seek Nano app

How to use

Install the free Seek Nano app on your Android smartphone, connect the CQ-DBAX thermal camera to the device via USB-C and open the app. Point the camera at the inspection area and view the live thermal image on your phone. Use the on-screen tools to mark spot temperatures, find the highest and lowest temperatures in the scene, switch color palettes, and capture photos or record video. For close-up inspection, attach the macro lens or use the fixed focus range starting at 30 cm.

Recommendations

For reliable temperature readings, allow the camera to acclimate to ambient temperature before measurement, keep the lens clean and avoid direct exposure to water. Use the wide field of view for broad-area surveys and the macro setting for detailed close-ups when diagnosing insulation, leaks or small electronic components.
