Thermal imaging camera Guide Sensmart E1+ — 120×90 px thermal sensor, 240×180 px max, 2.4 inch LCD, Wi‑Fi, IP54, -20–550°C

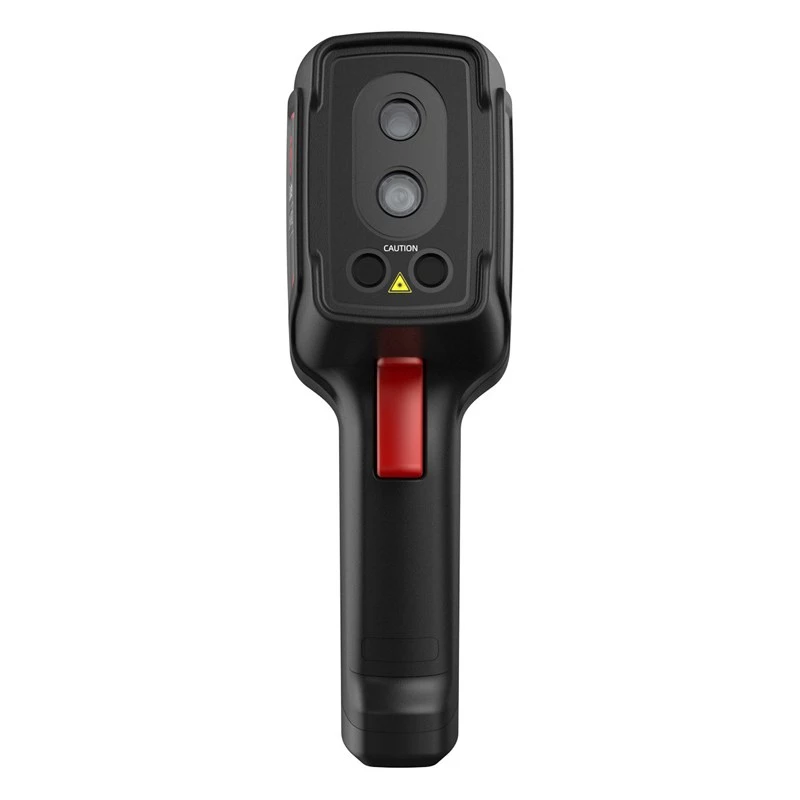

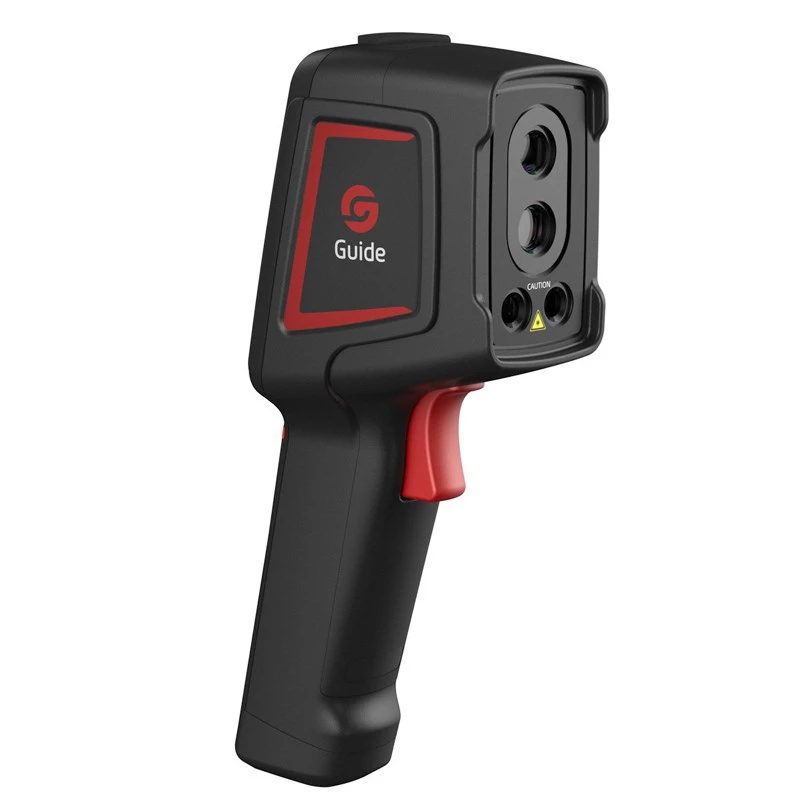

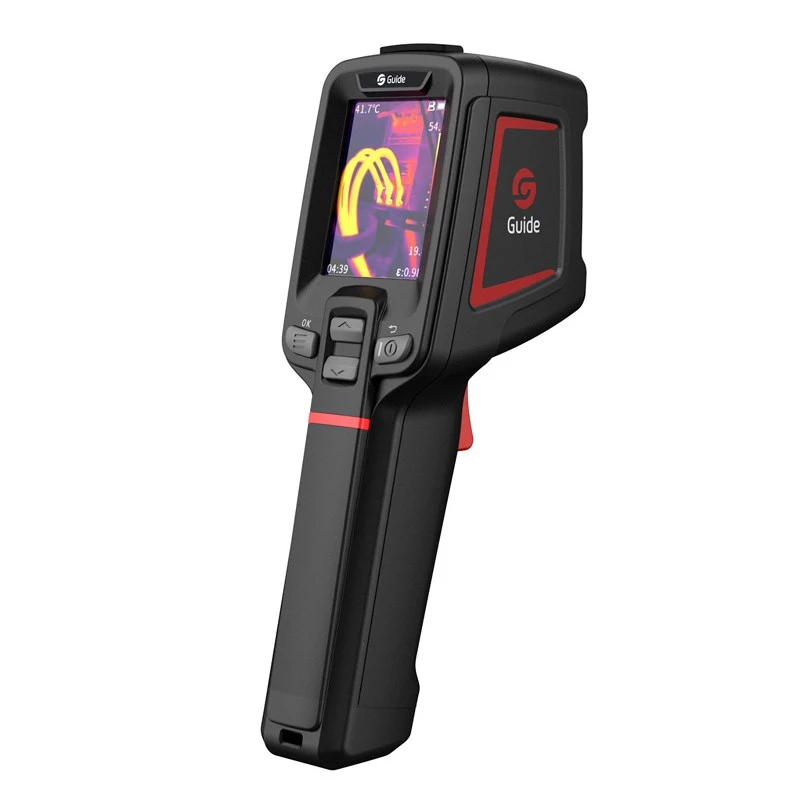

The Guide Sensmart E1+ thermal imaging camera is a compact inspection tool designed for basic thermal imaging and temperature measurement tasks. It features an uncooled Vanadium Oxide sensor with a native resolution of 120 x 90 pixels and an enhanced maximum imaging mode equivalent to 240 x 180 pixels, providing clear thermal images for diagnostics and inspections. The device includes a built-in LCD display, fixed 2.28 mm focal length optics, USB Type-C connectivity and a metal housing that offers improved mechanical durability for field use. The camera supports removable storage up to 16 GB for captured images and data.

Advantages

The unit provides accurate temperature measurement across a wide range from -20 °C to 550 °C, suitable for many industrial and maintenance applications. The Vanadium Oxide uncooled sensor balances sensitivity and power efficiency, enabling handheld operation without lengthy warm-up. The integrated LCD allows immediate image review on site, while USB Type-C connection simplifies data transfer and charging. The metal casing provides robust protection against everyday handling and enhances device longevity.

Suitable for

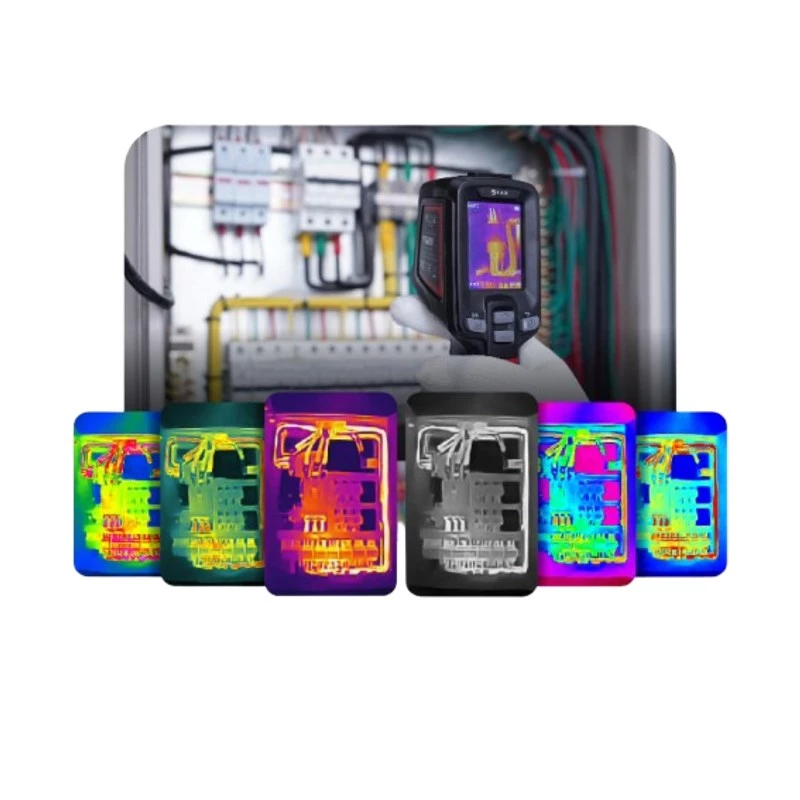

• Electrical system inspection and hotspot detection
• Mechanical equipment condition checks and bearing monitoring
• Building envelope diagnostics and insulation assessment
• HVAC system inspection and troubleshooting
• Preventive maintenance and quick field surveys

Key specifications

• Thermal sensor type: Vanadium Oxide uncooled detector
• Native thermal resolution: 120 x 90 pixels
• Maximum interpolated resolution: 240 x 180 pixels
• Temperature measurement range: -20 °C to 550 °C
• Fixed focal length: 2.28 mm

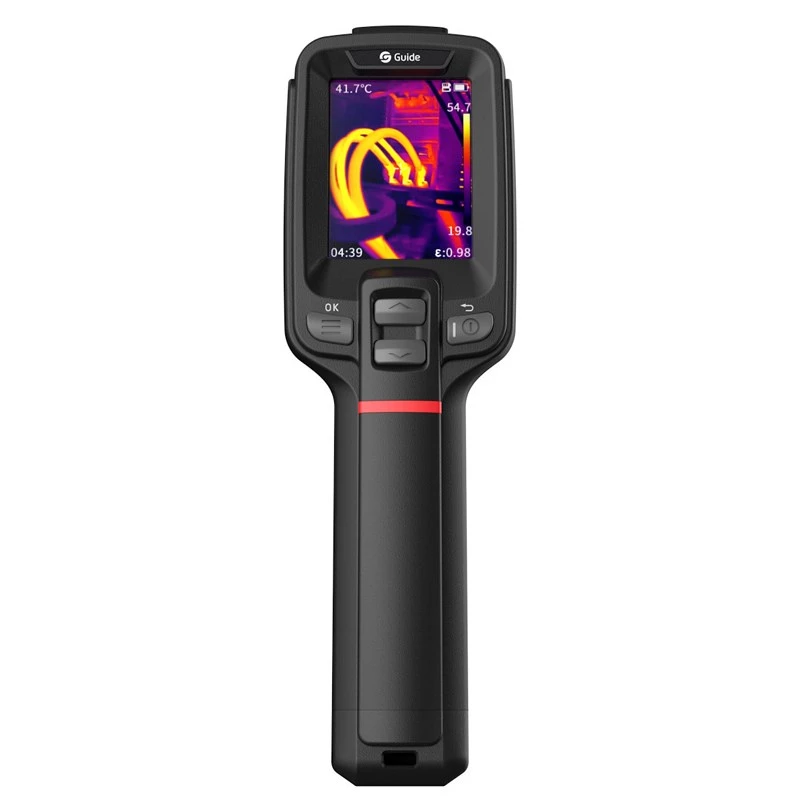

• Display: built-in LCD
• Storage: supports memory card up to 16 GB

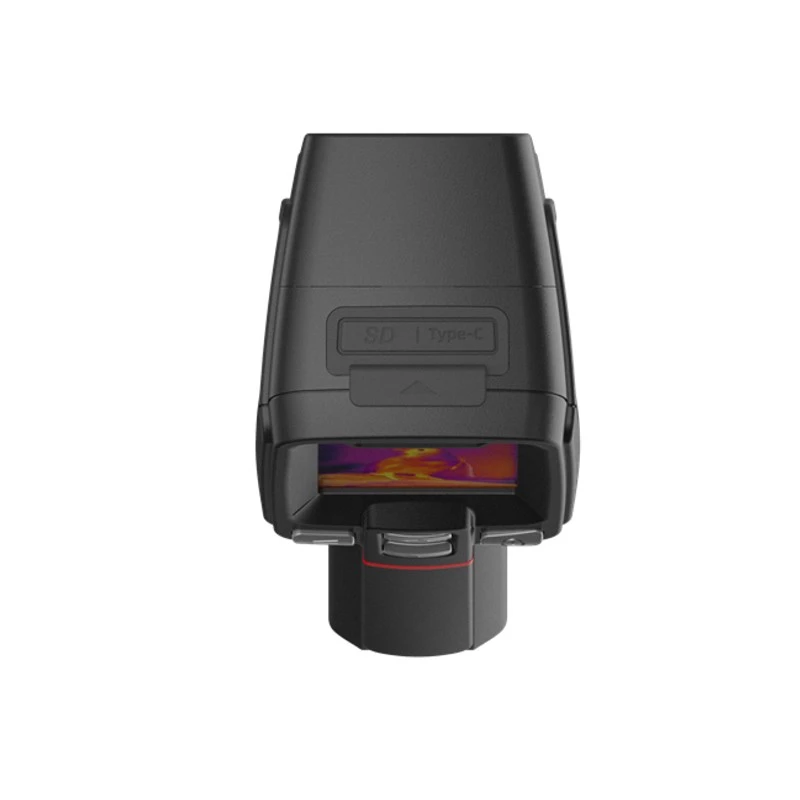

• Connectivity: USB Type-C
• Housing: durable metal casing

How to use

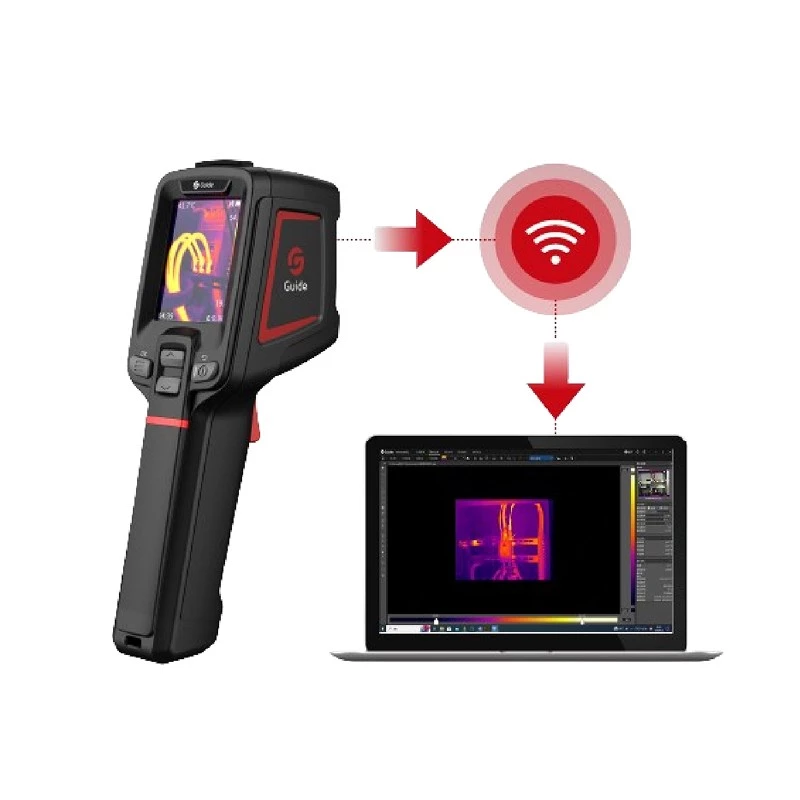

Power on the camera and allow the sensor to stabilise for accurate readings. Aim the camera at the target area, use the built-in LCD to frame the scene and capture thermal images as needed. Save images to the inserted memory card or transfer them to a computer via USB Type-C. For temperature measurement, position the camera so the target fills an adequate portion of the field of view and read the measurement indicated on the display. Follow standard safety procedures when inspecting electrical or high-temperature equipment.

Recommendations

For best results, perform inspections at a distance appropriate to the target size, avoid direct sunlight on the lens, and allow the camera to acclimatise when moving between environments with large temperature differences. Regularly back up captured images from the memory card and keep the metal housing clean and free from debris to maintain optical performance.
