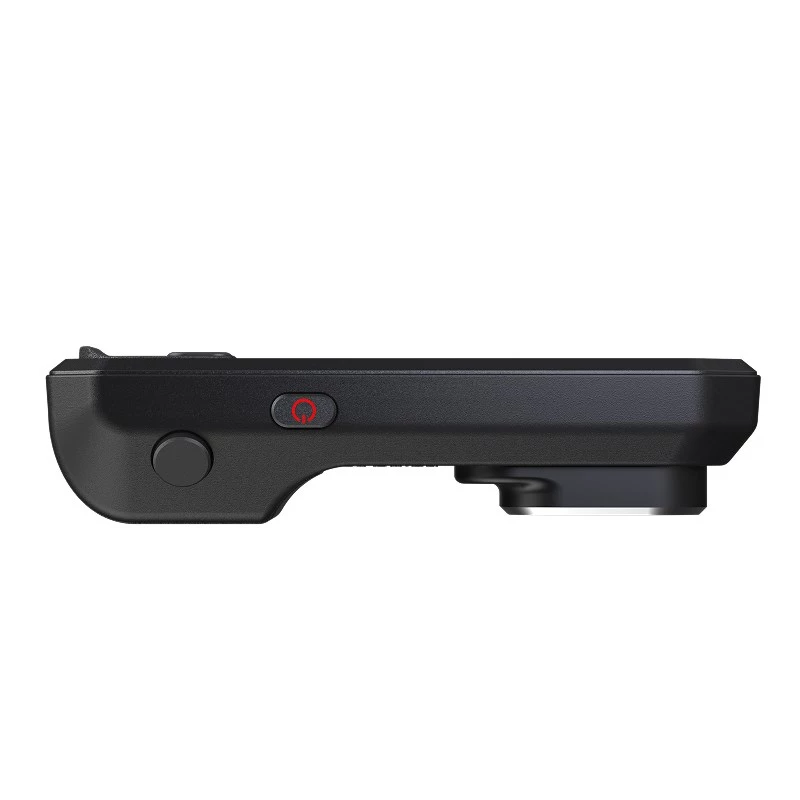

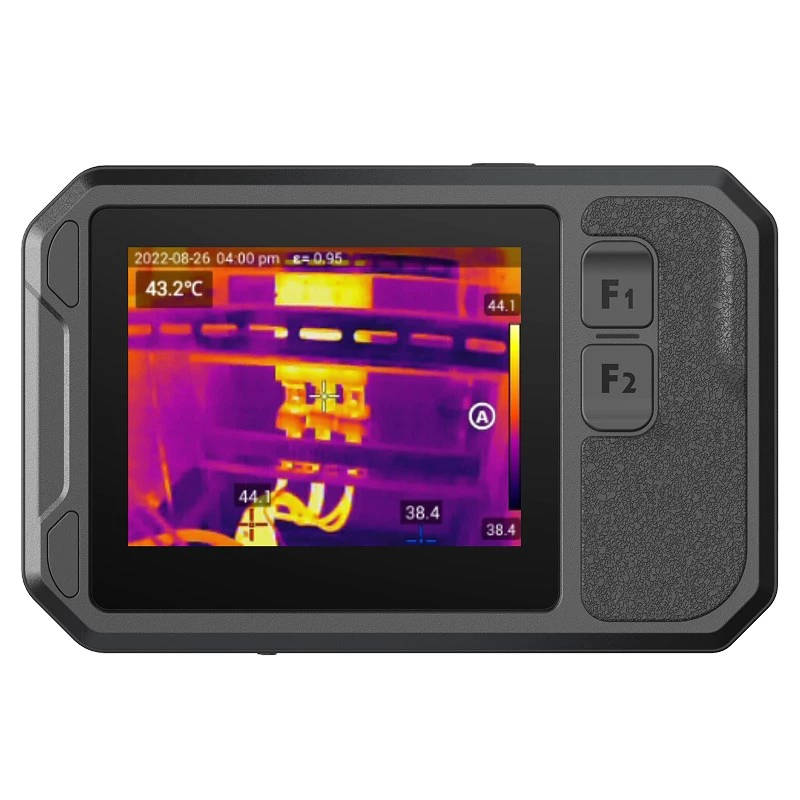

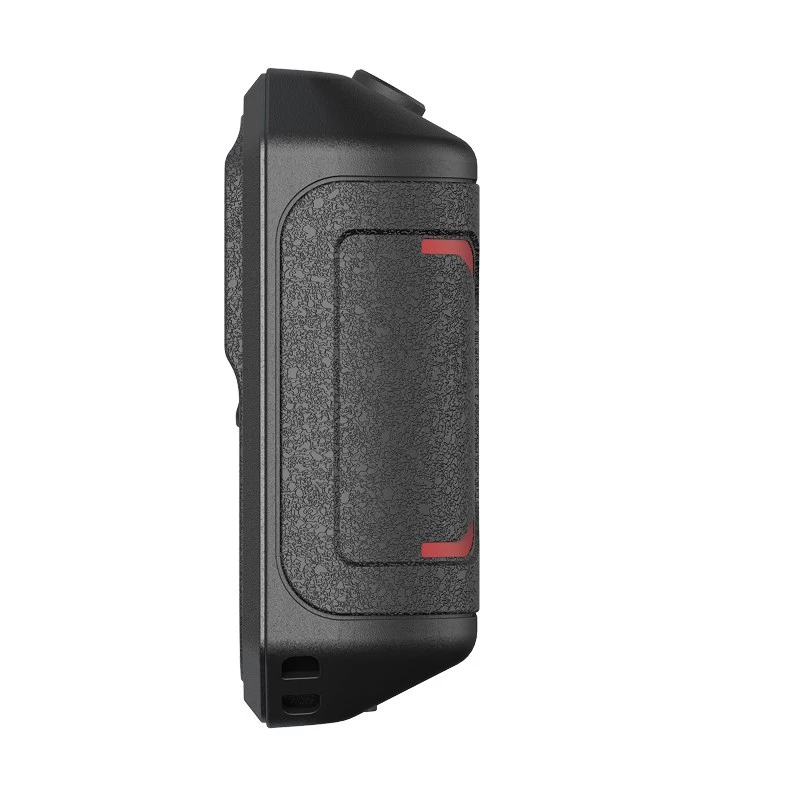

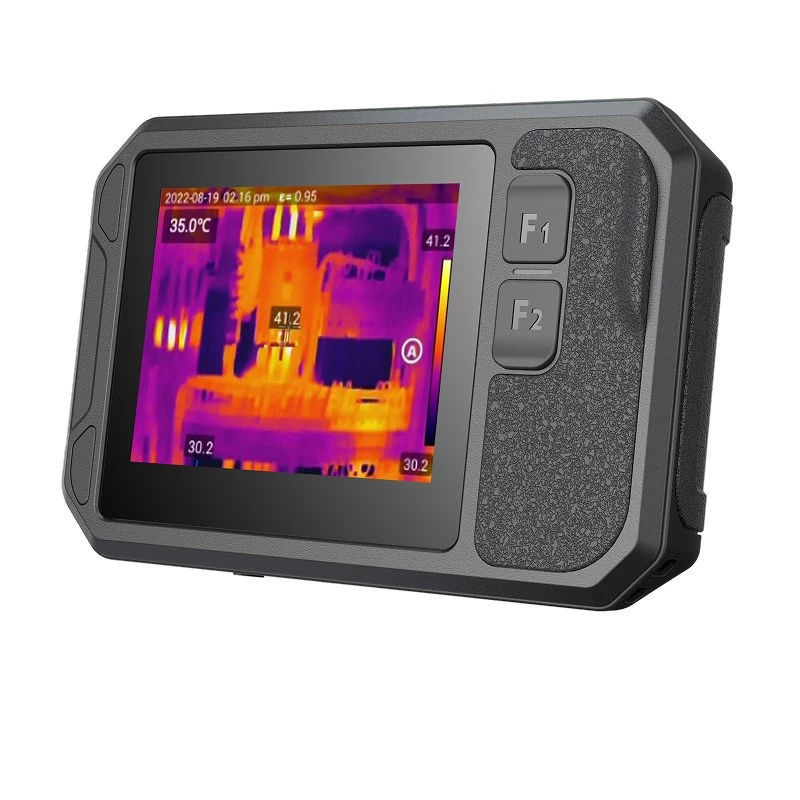

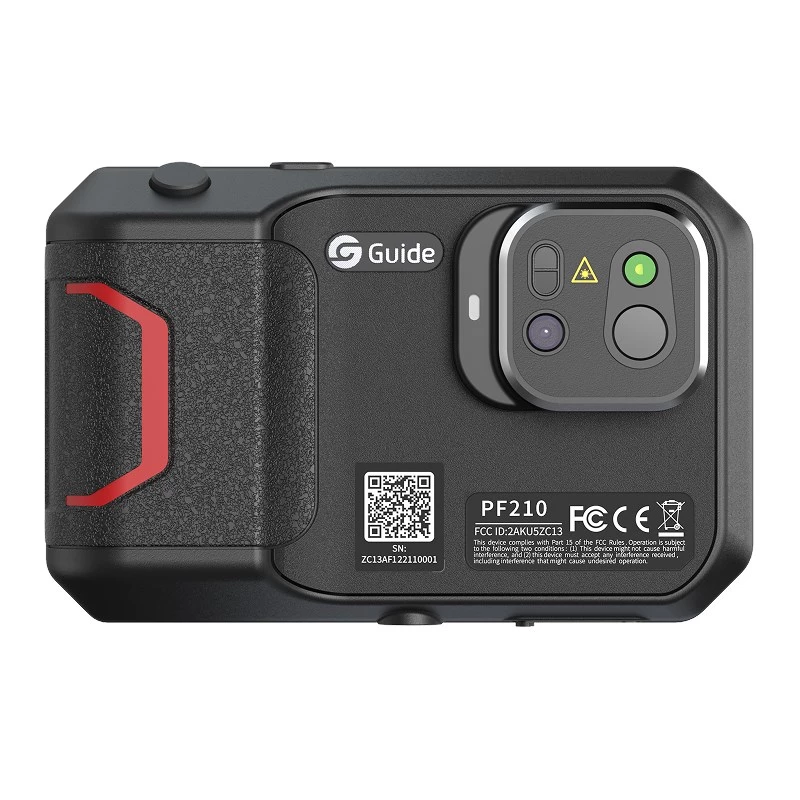

Thermal imaging camera Guide Sensmart PF210 256×192 px, 3.5 inch LCD, 25 Hz, -20–550 °C, 16 GB, Wi‑Fi, USB‑C

The Guide Sensmart PF210 is a pocket-sized thermal imaging camera designed for precision inspections. It produces 256 × 192 thermal images using a VOx (vanadium oxide) uncooled detector and measures temperatures from -20°C to 550°C. The unit includes a built-in 5 MP visual camera, a 3.5" LCD, fixed-focus optics, Wi‑Fi and USB‑C connectivity, and a durable metal housing. With a 56° × 48° field of view, 25 Hz refresh rate and a 16 GB memory limit, the PF210 is intended for quick diagnostics and documentation in electrical, HVAC and industrial environments.

Advantages

The PF210 delivers clear thermal detail at 256×192 resolution and supports a wide temperature range for diverse applications. Fixed-focus imaging and laser aiming simplify target acquisition, while the integrated 5 MP visual camera and on-device 3.5" display make documentation straightforward. Real-time Wi‑Fi sharing and USB‑C connectivity enable fast data transfer, and the compact metal body and 0.3 kg weight make the device convenient for field inspections.

Suitable for

• Electrical inspections and fault detection
• HVAC system diagnostics and maintenance
• Industrial equipment checks and predictive maintenance
• Field service jobs requiring portable imaging
• Quick documentation and reports using Wi‑Fi sharing

Key specifications

• Thermal resolution: 256×192 (VOx detector)
• Temperature range: -20 °C to 550 °C
• Accuracy: ±2 °C or ±2%
• Refresh rate: 25 Hz
• Field of view (FOV): 56° × 48°
• Focus mode: Fixed
• Display: 3.5" LCD
• Memory: up to 16 GB
• Connectivity: Wi‑Fi, USB‑C
• Visual camera: 5 MP
• Weight: 0.3 kg
• Colour: Black

How to use

Power on the PF210 and allow the sensor to stabilize per the quick start guide. Aim the camera at the target using the laser aid and view the thermal image on the 3.5" LCD or via the companion app over Wi‑Fi. Use the fixed focus to capture images; switch to the visual camera when needed for photographic documentation. Save images to the internal memory or transfer them via Wi‑Fi or USB‑C for reporting and analysis.

Recommendations

For accurate temperature readings, allow the camera to adapt to the ambient temperature before measuring and keep the lens clean and unobstructed. Use the wider FOV for general area scans and move closer to small components to increase image detail. Follow local safety procedures when inspecting live electrical or hot industrial equipment.
