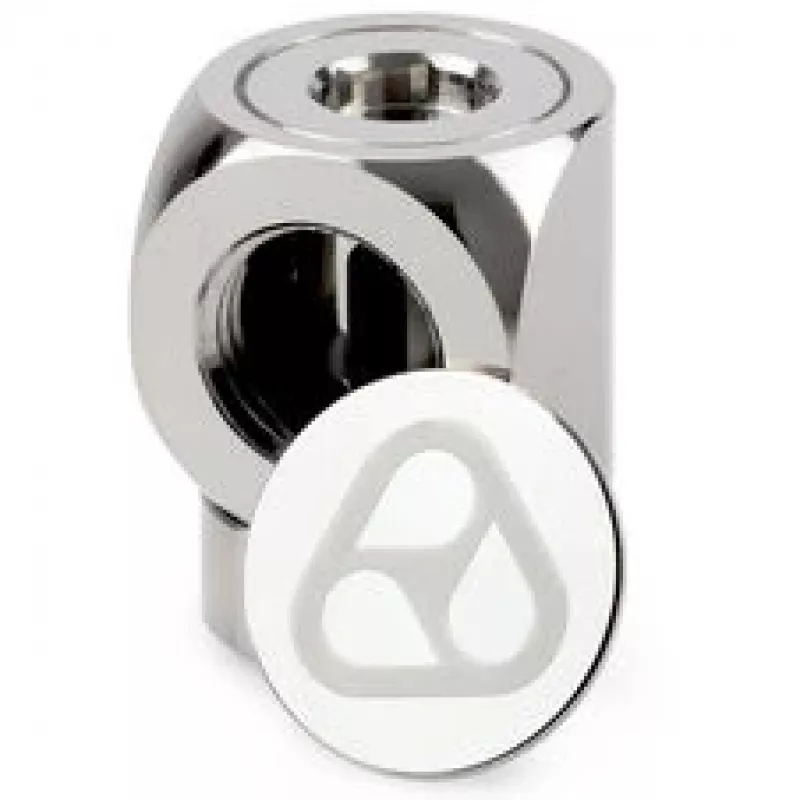

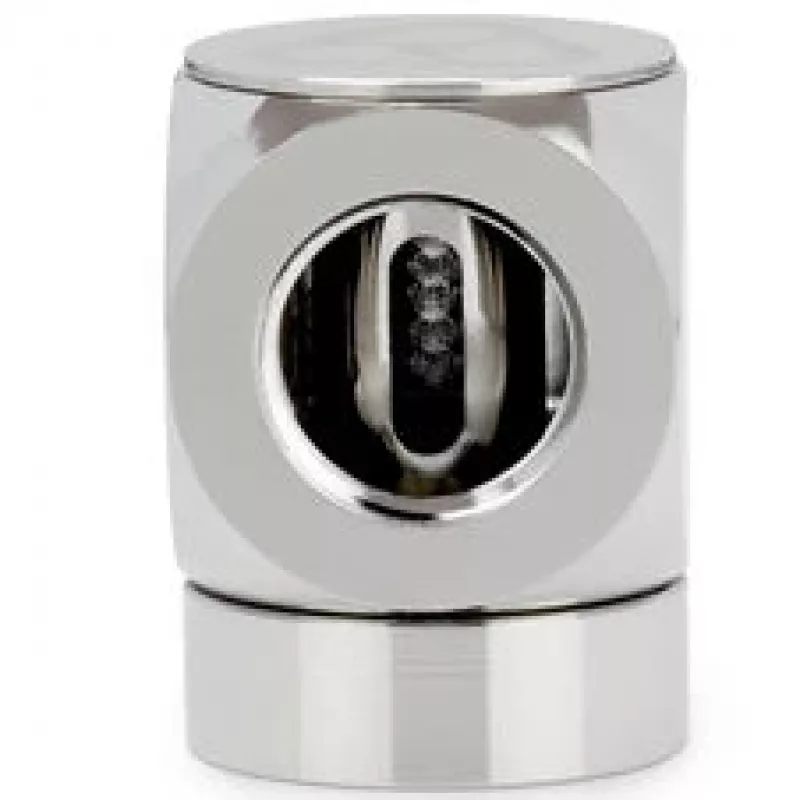

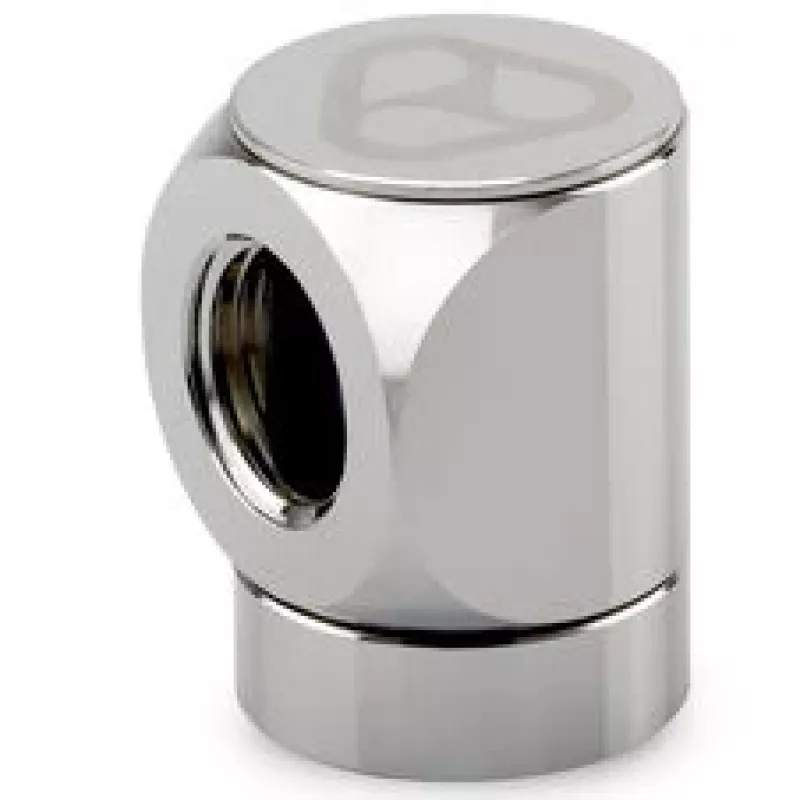

Thermal Grizzly DeltaMate Rotary 90° Female-to-Female G1/4 Adapter Fitting, Gloss Nickel

In custom water cooling loops, tight bends and awkward component placements often force builders to kink tubing or compromise on layout. The Thermal Grizzly DeltaMate Rotary 90° adapter eliminates that frustration by providing a right-angle connection point that rotates freely, allowing you to route tubing exactly where you need it without stress on fittings or tubing.

Who is it for

This adapter is built for PC enthusiasts, overclockers, and system integrators who demand both performance and aesthetics from their liquid cooling setups. Whether you're working in a compact SFF case or a full-tower showcase build, the DeltaMate Rotary 90° helps you achieve clean, efficient loop routing.

Main features

• 90-degree rotary elbow with female G1/4" threads on both ends
• 360° swivel on one port for flexible tube alignment
• Precision-machined brass body with high-gloss nickel plating
• EPDM O-rings ensure leak-free operation under pressure
• High-flow internal design minimizes restriction
• Corrosion-resistant finish for long-term reliability

Specifications

• Product type: Rotary adapter fitting
• Angle: 90 degrees
• Thread type: G1/4"
• Thread gender (both ports): Female
• Material: Brass
• Surface finish: Gloss nickel plated
• Colour: Silver (gloss nickel)
• Seal material: EPDM O-rings
• Number of ports: 2
• Rotary function: Yes
• Application: PC water cooling systems
• Pressure tested: Yes

Tips

When installing, hand-tighten the fitting first, then use a suitable wrench for a final quarter turn. Avoid over-tightening to prevent damage to the O-rings. For best results, pair with other DeltaMate series fittings and high-quality flexible tubing.
