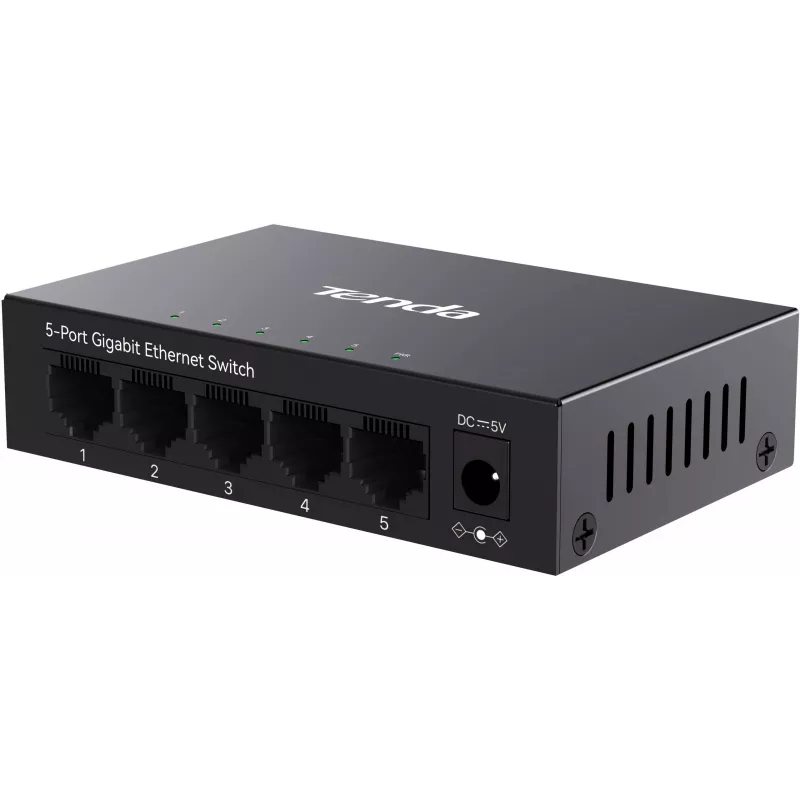

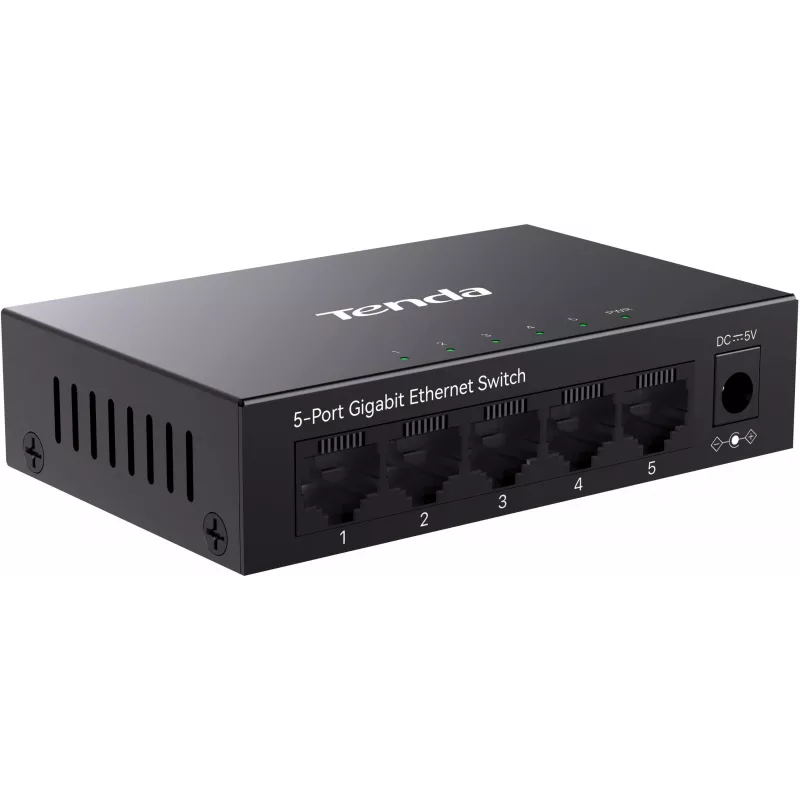

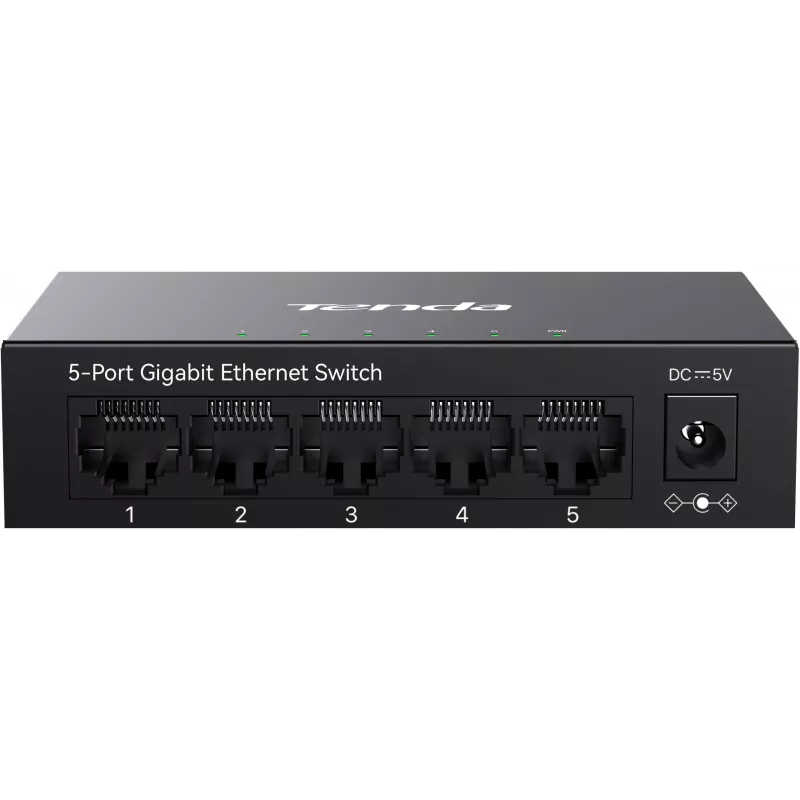

Tenda TEG1005M 5-Port Gigabit Ethernet Switch Desktop Plastic Fanless

The Tenda TEG1005M is a high-performance 5-port Gigabit Ethernet switch designed for home and small office networks. It provides reliable, high-speed connectivity with plug-and-play simplicity, making it an ideal solution for expanding your wired network.

Advantages

With 5 auto-negotiating 10/100/1000Mbps ports, the TEG1005M delivers up to 10 Gbps switching capacity, ensuring smooth data transfer for bandwidth-intensive applications. Its fanless design ensures silent operation, while the plastic housing makes it lightweight and durable. Energy-efficient features reduce power consumption without compromising performance.

Suitable for

• Home networks requiring additional wired ports
• Small office environments with multiple devices
• Gaming or streaming setups needing low latency
• Surveillance systems with IP cameras

Key specifications

• Ports: 5 x 10/100/1000Mbps Gigabit Ethernet
• Switching Capacity: 10 Gbps
• Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2K entries
• Jumbo Frame Support: 15 KB
• Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab
• Power Supply: External DC 9V 0.6A adapter
• Max Power Consumption: 3 W
• LED Indicators: Power, Link/Act per port
• Housing Material: Plastic
• Cooling: Fanless
• Mounting: Desktop
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Certifications: CE, FCC, RoHS

Recommendations

The Tenda TEG1005M is a cost-effective and reliable switch for everyday networking needs. Its plug-and-play setup requires no configuration, making it perfect for users seeking a hassle-free expansion of their wired network.
