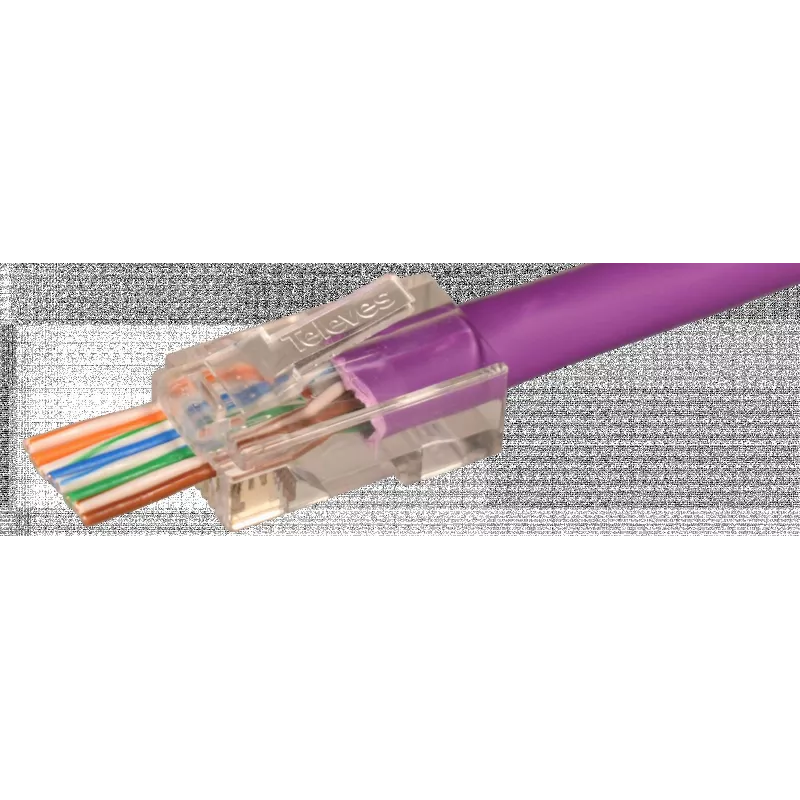

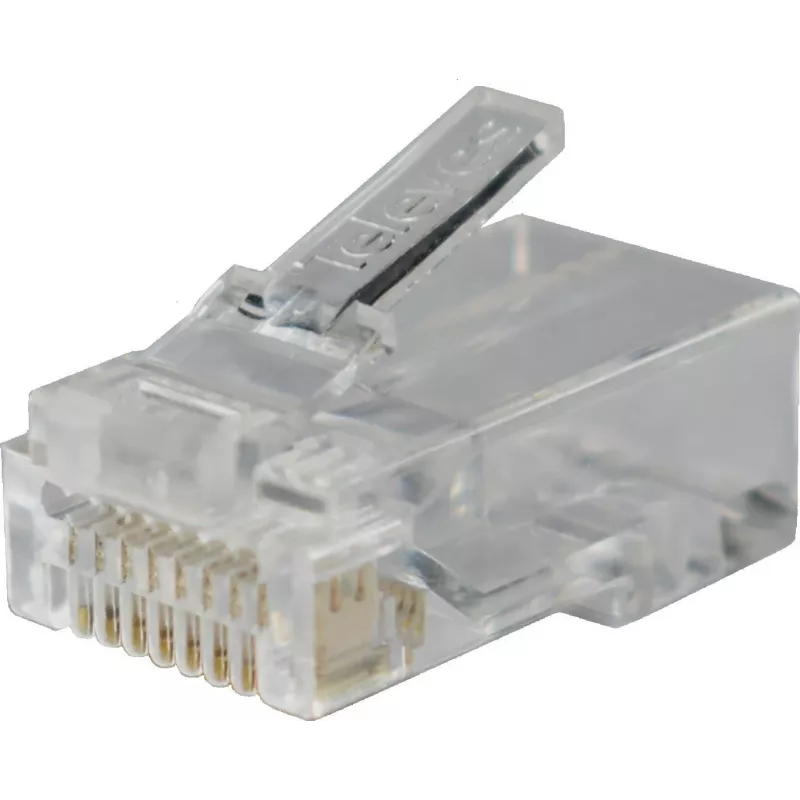

TELEVES RJ45 Male Pass-Through UTP Cat6 Connector (209906)

Terminating Cat6 cables can be a tedious task, often leading to wasted connectors and unreliable connections. The TELEVES RJ45 Male Pass-Through UTP Cat6 Connector solves this by allowing wires to pass completely through the connector, making it easy to verify the correct wire order before crimping. This design reduces errors and ensures a perfect connection every time.

Who is it for

This connector is ideal for network installers, IT technicians, and DIY enthusiasts who need a dependable, high-performance RJ45 plug for Gigabit Ethernet applications. It works with both solid and stranded conductors, making it versatile for various cable types.

Main features

• Pass-through design for easy wire alignment and verification
• Cat6 performance with 250 MHz bandwidth, supporting 1 Gigabit Ethernet
• Unshielded (UTP) for standard twisted pair cables
• 8P8C configuration with gold-plated contacts for reliable connectivity
• Durable polycarbonate housing with transparent body for visual inspection
• Supports 23-26 AWG wire gauge
• Compliant with TIA/EIA-568-B.2-1 standards

Specifications

• Connector Type: RJ45
• Gender: Male
• Category: Cat6
• Shielding: UTP (Unshielded)
• Style: Pass-Through
• Contacts: 8P8C, gold-plated (50 micron)
• Housing Material: Polycarbonate
• Wire Gauge: 23-26 AWG
• Data Rate: 1 Gbps
• Frequency: 250 MHz
• Termination: Crimp (requires pass-through crimp tool)
• Operating Temperature: -10°C to 60°C
• Durability: 750 mating cycles

Tips

For best results, use a pass-through crimp tool designed for EZ-RJ45 connectors. Always verify the wire order before crimping, and ensure the cable jacket extends into the connector for proper strain relief.
