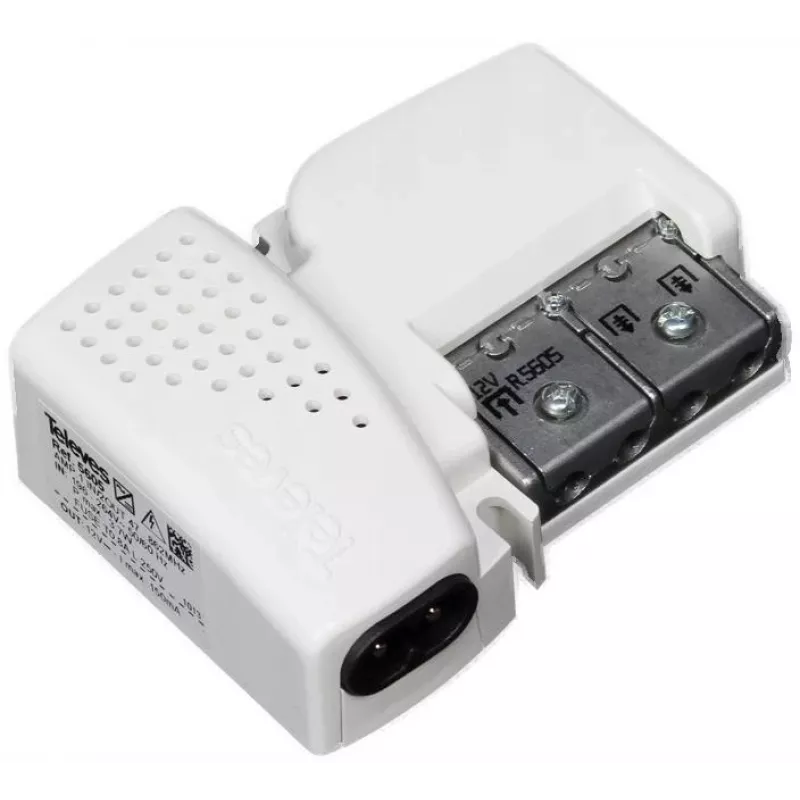

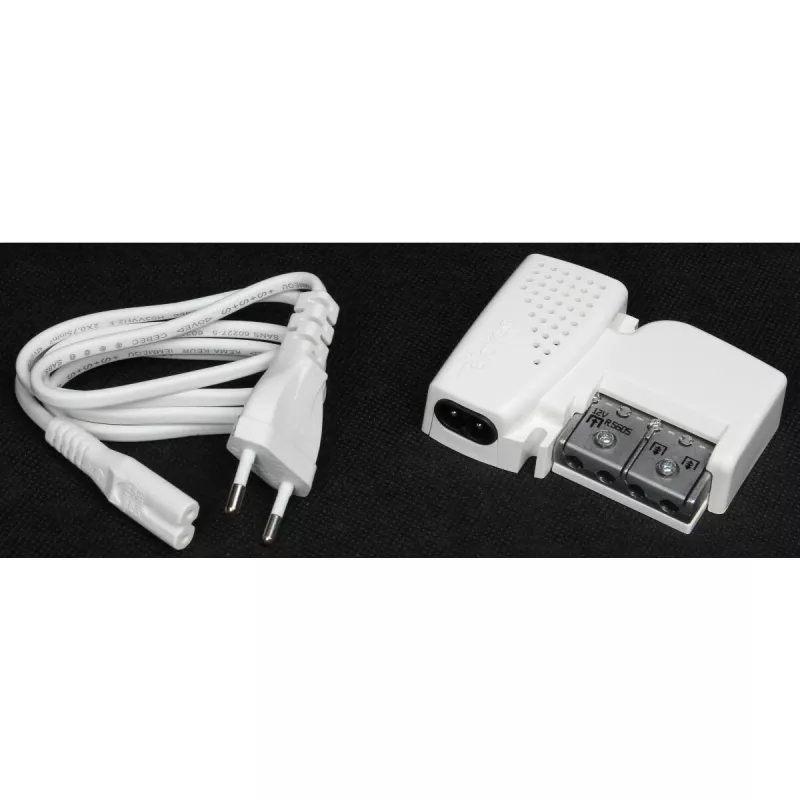

TELEVES PicoKom 1 EC Antenna Amplifier, 1 Input, 2 Outputs, 12 dB Gain, 47-694 MHz, F-Type Connectors, Indoor

The TELEVES PicoKom 1 EC antenna amplifier (ref. 560522) is a compact, high-performance indoor amplifier designed to boost TV and radio signals in single-family homes or small installations. With 1 input and 2 outputs, it provides a clean 12 dB gain across the full VHF/UHF band (47-694 MHz), ensuring reliable signal distribution to up to two devices.

Advantages

• Low noise figure of 4.5 dB for minimal signal degradation
• Class A shielding for excellent interference rejection
• Compact ABS plastic housing for easy wall mounting
• F-type connectors for secure, professional connections
• Energy-efficient: only 30 mA current consumption

Suitable for

• Indoor antenna systems in houses or apartments
• Distributing terrestrial TV signals to two TVs or receivers
• Boosting weak signals from rooftop or indoor antennas

Key specifications

• Brand: TELEVES
• Model: PicoKom 1 EC
• MPN: 560522
• EAN: 8424450246498
• Number of Inputs: 1
• Number of Outputs: 2
• Frequency Range: 47-694 MHz
• Gain: 12 dB
• Noise Figure: 4.5 dB
• Max Output Level: 105 dBµV
• Power Supply: 230 V AC, 50/60 Hz
• Current Consumption: 30 mA
• Connector Type: F-type
• Shielding Class: Class A
• Return Path: No
• DC Pass: No
• Installation: Indoor
• Input/Output Impedance: 75 Ohm
• Housing Material: ABS Plastic
• Product Series: PicoKom

Recommendations

For optimal performance, use high-quality F-type connectors and 75 Ohm coaxial cable. This amplifier is not suitable for outdoor installation or systems requiring return path or DC power pass.
