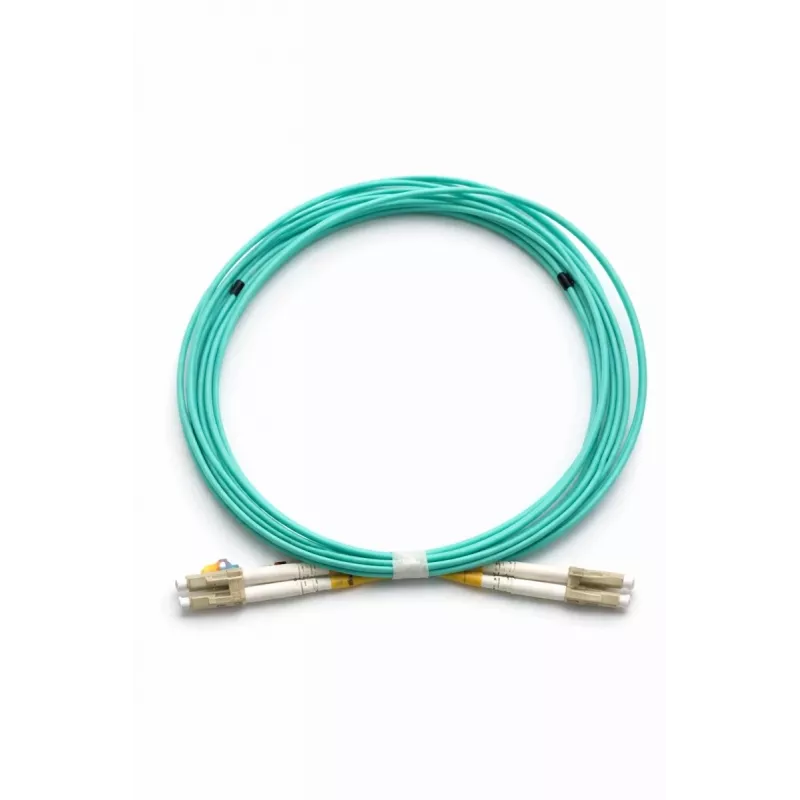

TB Optical Patchcord LC-LC OM4 Duplex 1m

The TB Optical Patchcord LC-LC OM4 Duplex 1m is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. Engineered with OM4 laser-optimized multimode fiber, this cable supports high-bandwidth applications such as 10GbE, 40GbE, and 100GbE, making it ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This patchcord offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation and optimal performance. The duplex configuration with LC connectors provides secure, easy-to-use connectivity for transceivers and patch panels. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire, making it suitable for confined spaces.

Suitable for

• Data center cabling and server room connections
• High-speed network links (10GbE, 40GbE, 100GbE)
• Fiber optic distribution frames and patch panels
• Telecommunications and enterprise networks

Key specifications

• Fiber Type: Multimode OM4
• Connectors: LC to LC, Duplex
• Cable Length: 1 meter (3.3 ft)
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH, Aqua color
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Bandwidth: 4700 MHz-km @ 850nm, 500 MHz-km @ 1300nm
• Operating Temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This patchcord is compatible with all standard LC duplex interfaces. Store in a clean, dry environment when not in use.
