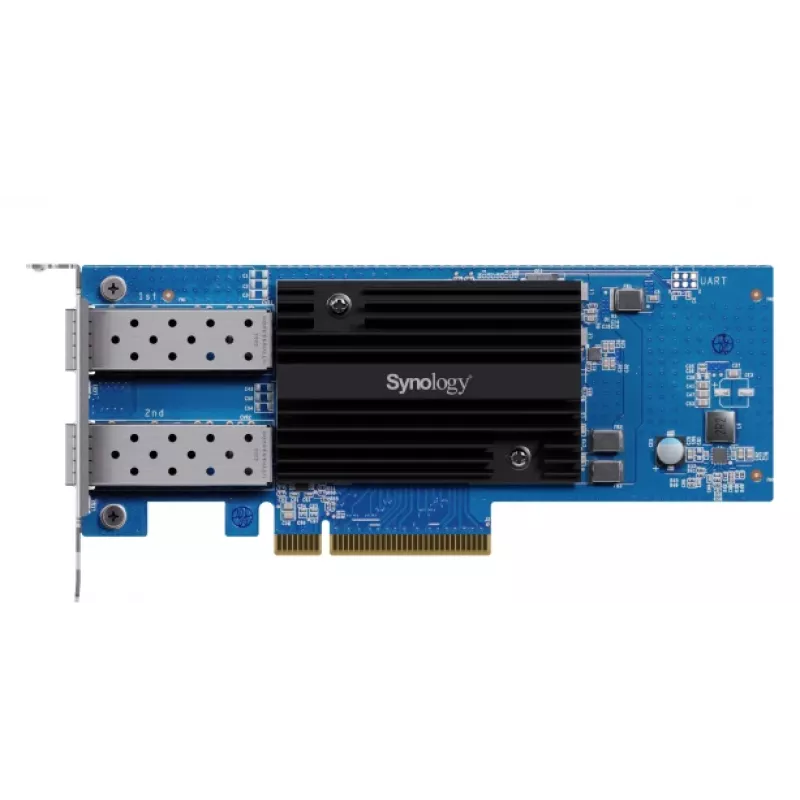

SYNOLOGY E25g30-f2 - Dual Port 25gbe Sfp28 Add-in Card For Synology Systems

The Synology E25G30-F2 is an internal wired network card that provides 25GbE connectivity for modern enterprise networks. Installed via a PCI Express slot, the card supports a maximum data transfer rate of 3125 Mbit/s and complies with IEEE 802.3ad, IEEE 802.3ae and IEEE 802.3by standards. Available in a blue housing, it is designed for systems requiring higher throughput and reliable wired Ethernet connections.

Advantages

The card supports flexible SFP28 transceiver options including short-range and long-range modules as well as direct-attach copper (DAC) cables, enabling adaptable link choices. Two 25GbE ports can be combined into a Link Aggregation Group to increase throughput up to 50 Gb/s while providing port failover and load balancing. The device also supports CPU offloading and load balancing technologies to improve overall system performance. Synology provides a 5-year limited warranty covering technical support and hardware replacement.

Suitable for

• High-bandwidth storage servers
• Virtualization hosts and hyperconverged infrastructure
• Database and application servers requiring low-latency links
• Network upgrades in small and medium enterprise environments

Key specifications

• Brand: SYNOLOGY
• Model: E25G30-F2
• Interface: PCI Express
• Connectivity: Wired Ethernet (SFP28 ports)
• Maximum data transfer rate: 3125 Mbit/s
• Standards: IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3by
• Colour: Blue
• Warranty: 5-year limited warranty

How to use

Install the Synology E25G30-F2 into an available PCI Express slot on a compatible motherboard, secure the card to the chassis, and connect SFP28 transceivers or DAC cables to the ports as required. Configure link aggregation or individual port settings in your operating system or network management software. Ensure drivers or firmware recommended by Synology are installed for proper offloading and load balancing support.

Recommendations

For optimal performance, use compatible SFP28 transceivers and cables rated for 25GbE links, enable link aggregation when aggregating traffic between switches or servers, and keep firmware up to date. Verify system compatibility with Synology documentation before deployment.
