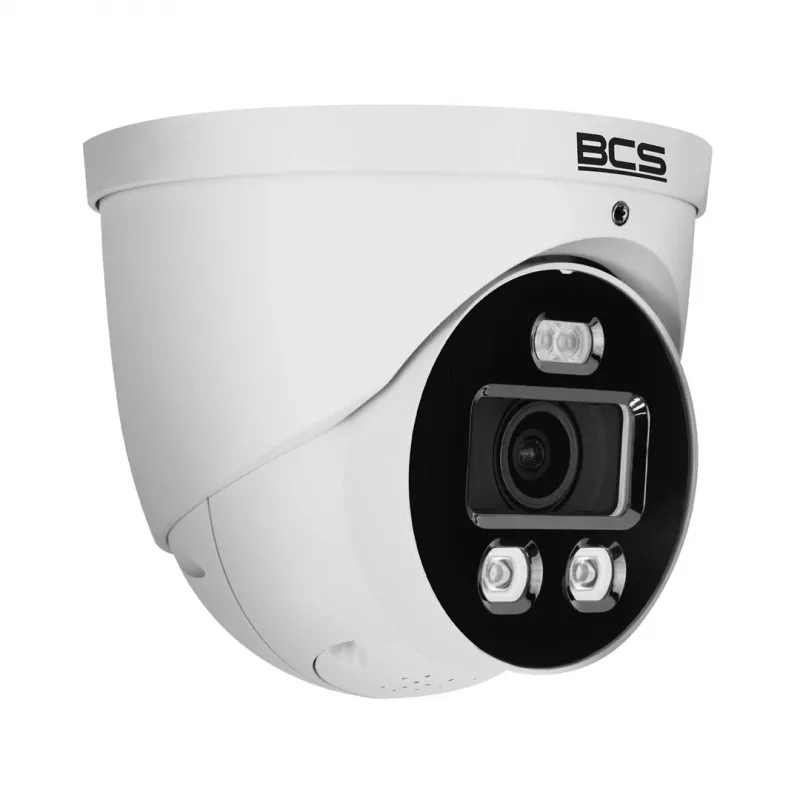

BCS 6MP IP Dome Camera BCS-L-EIP66FCR3L3-Ai1 with AI, 2.8mm, IR 30m, IP66, IK10, PoE

The BCS-L-EIP66FCR3L3-Ai1 is a high-performance 6 Megapixel IP dome camera designed for professional surveillance. Featuring a 1/2.8" Progressive Scan CMOS sensor, it delivers crisp 3072x2048 resolution at 20 fps. Equipped with AI-powered features including Perimeter Protection, SMD Plus, and Face Detection, this camera ensures intelligent monitoring. The 2.8mm fixed lens provides a 105° horizontal field of view, while the built-in IR LEDs offer night vision up to 30 meters. With IP66 weatherproof and IK10 vandal-resistant metal housing, it is suitable for both indoor and outdoor use. Power via 12V DC or PoE (802.3af) for flexible installation.

Advantages

Advanced AI analytics reduce false alarms and enhance security. True 120dB WDR ensures clear images in challenging lighting. H.265+ compression saves bandwidth and storage. Easy installation with PoE support.

Suitable for

• Perimeter surveillance
• Retail stores
• Office buildings
• Warehouses
• Parking lots

Key specifications

• Sensor: 1/2.8" Progressive Scan CMOS
• Resolution: 6 MP (3072x2048)
• Lens: 2.8mm fixed, FOV 105°
• IR Range: Up to 30m
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Frame Rate: 20 fps @ 6MP
• Audio: Built-in microphone
• Storage: MicroSD up to 256GB
• Network: 1x RJ45 10/100 Mbps
• Power: 12V DC / PoE (802.3af), max 6.5W
• Protection: IP66, IK10
• AI: Perimeter Protection, SMD Plus, Face Detection
• WDR: 120dB True WDR
• Operating Temperature: -30°C to +60°C
• Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector. Ensure the MicroSD card is rated for continuous recording. Mount at a height of 2.5-3 meters for best coverage.
